Home >> Honda >> 2007 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Engine >> Engine Mount Control Unit >> Locations

Engine Mount Control Unit: Locations

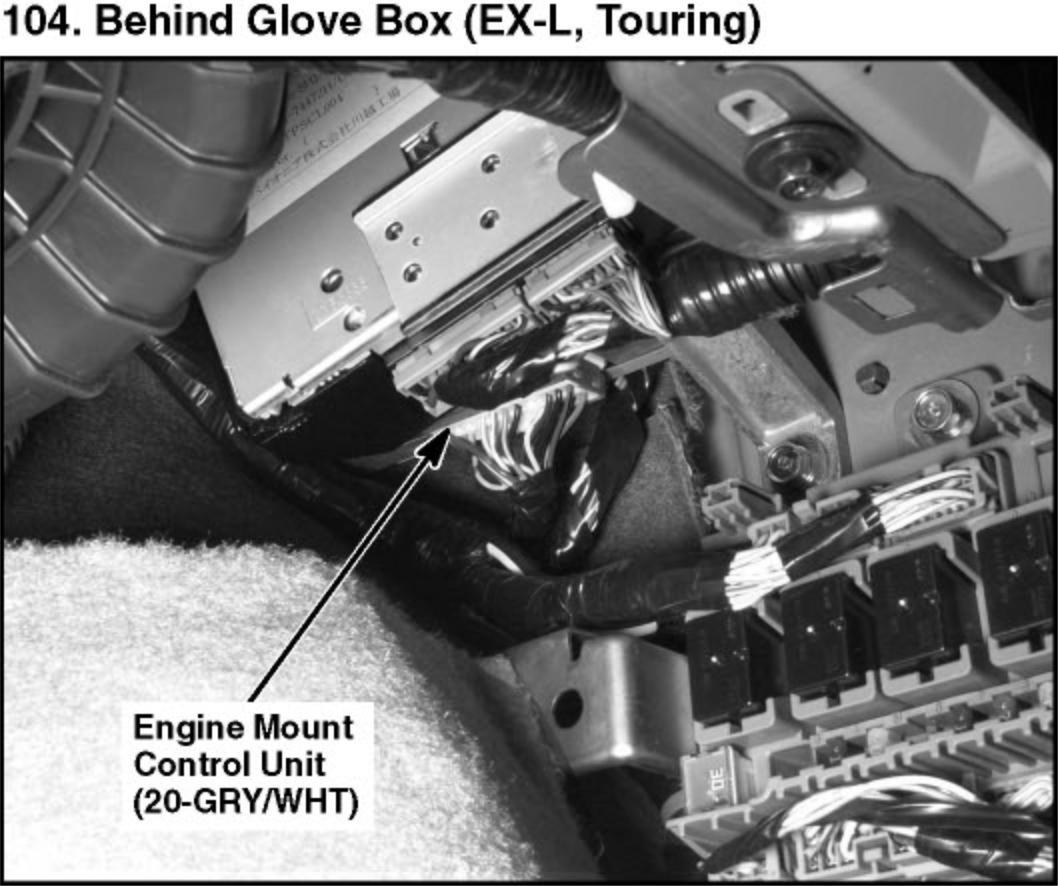

104. Behind Glove Box (EX-L, Touring):



Active Control Engine Mount (ACM) System Component Location Index:

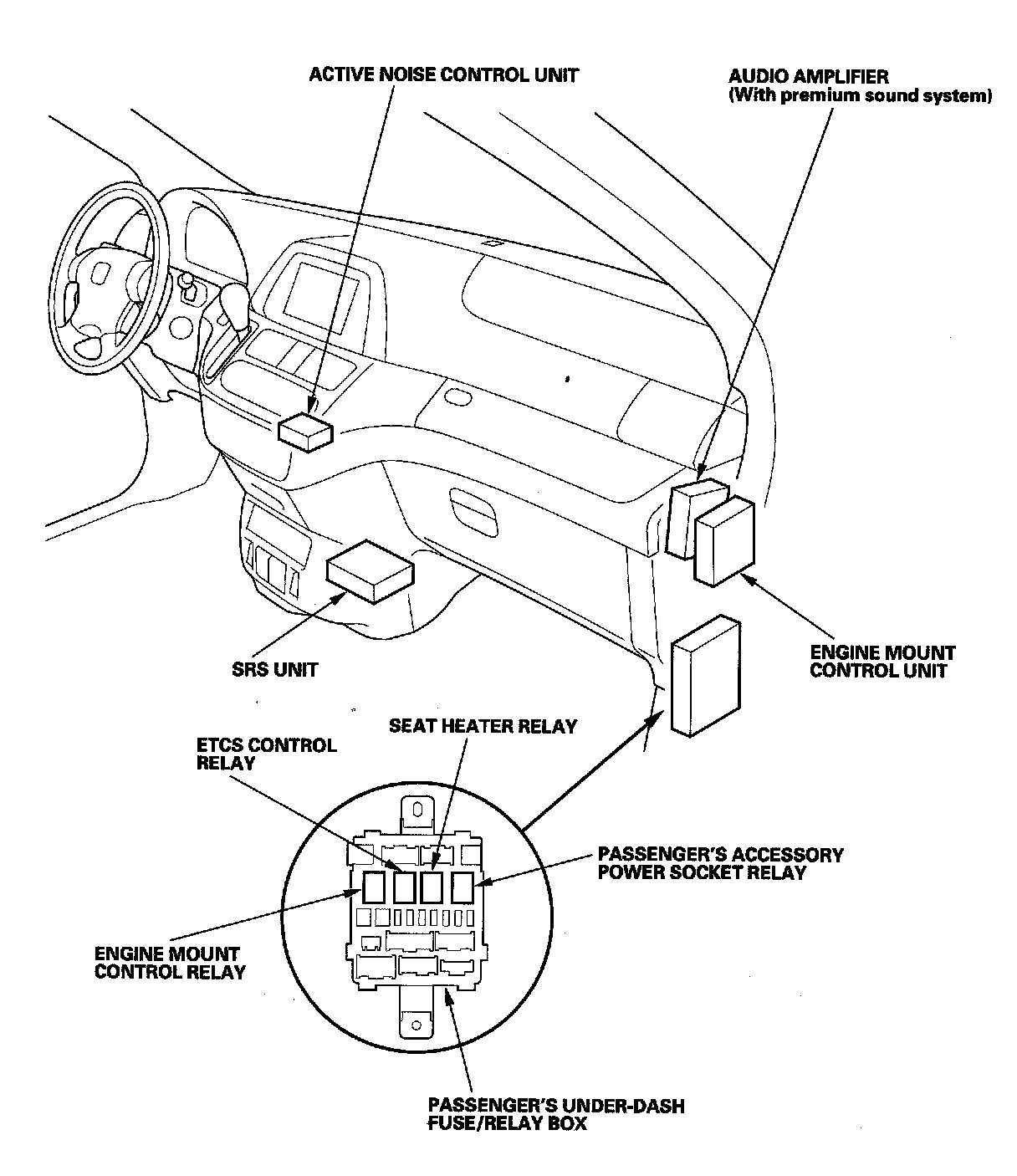

Relay And Control Unit Locations Dashboard:
