Home >> Honda >> 2007 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 301-325 >> 310

View 301-325: 310

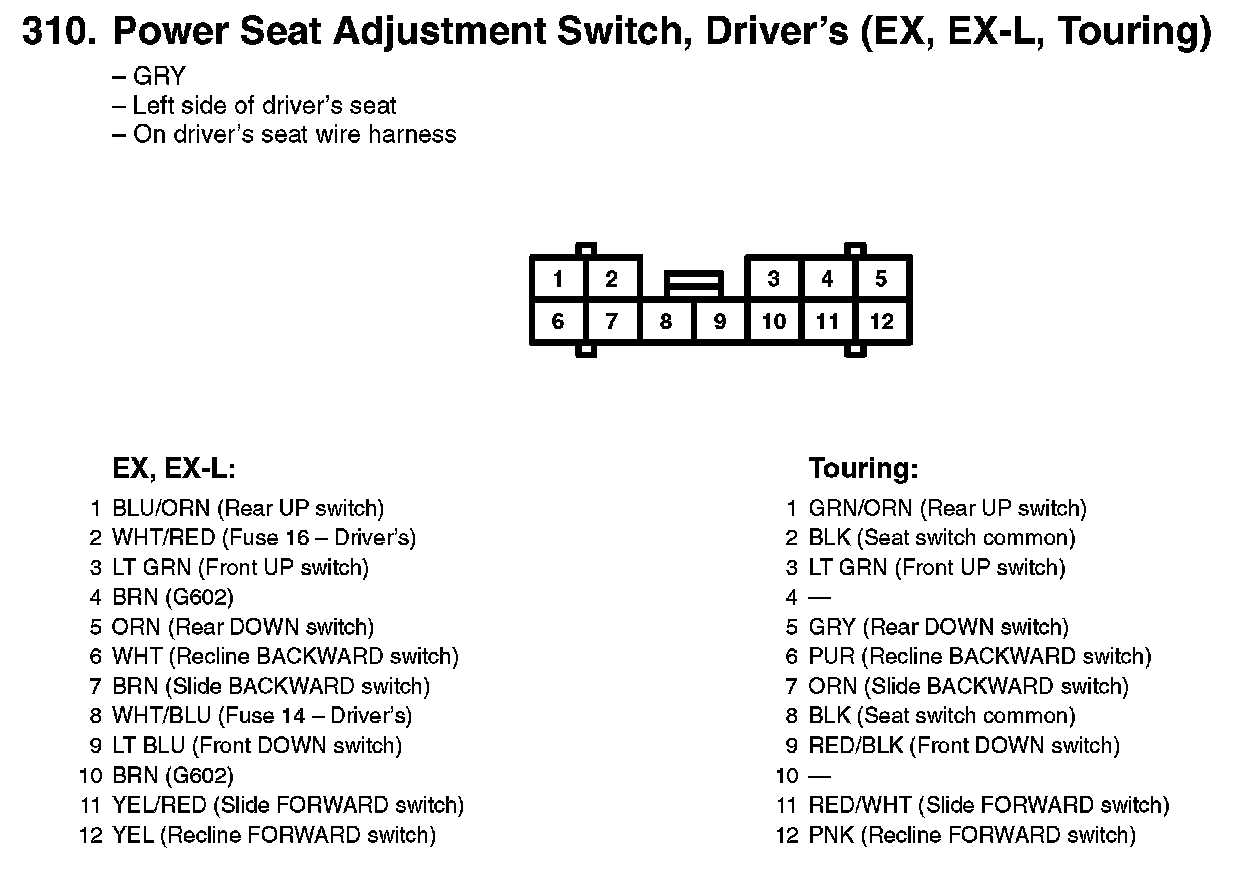

310. Power Seat Adjustment Switch, Driver's (EX, EX-L, Touring):
