Home >> Honda >> 2007 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Navigation Module >> Diagrams

Navigation Module: Diagrams

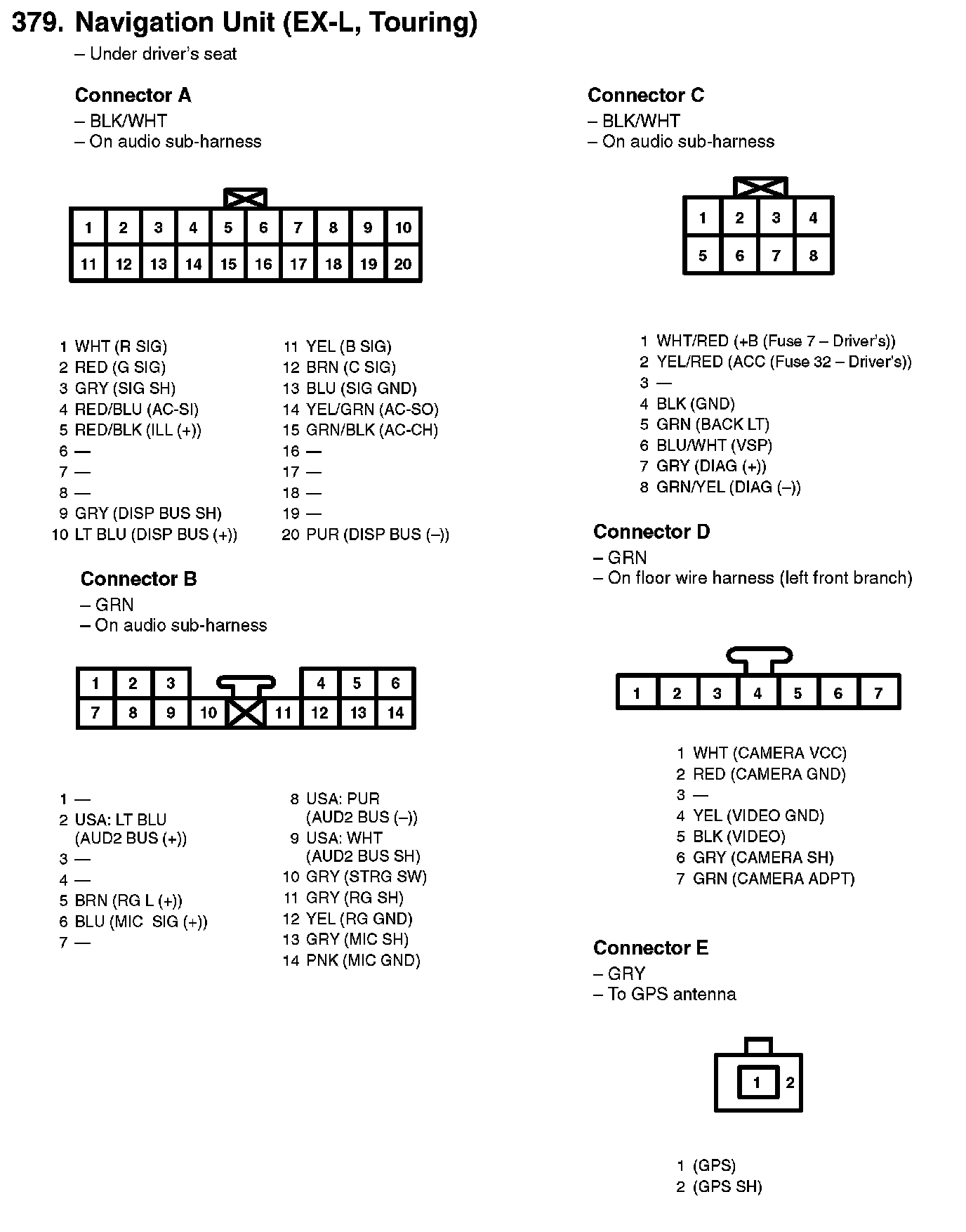

379. Navigation Unit (EX-L, Touring):
