Service Specifications

Flywheel





Torque in a crisscross pattern in several steps.

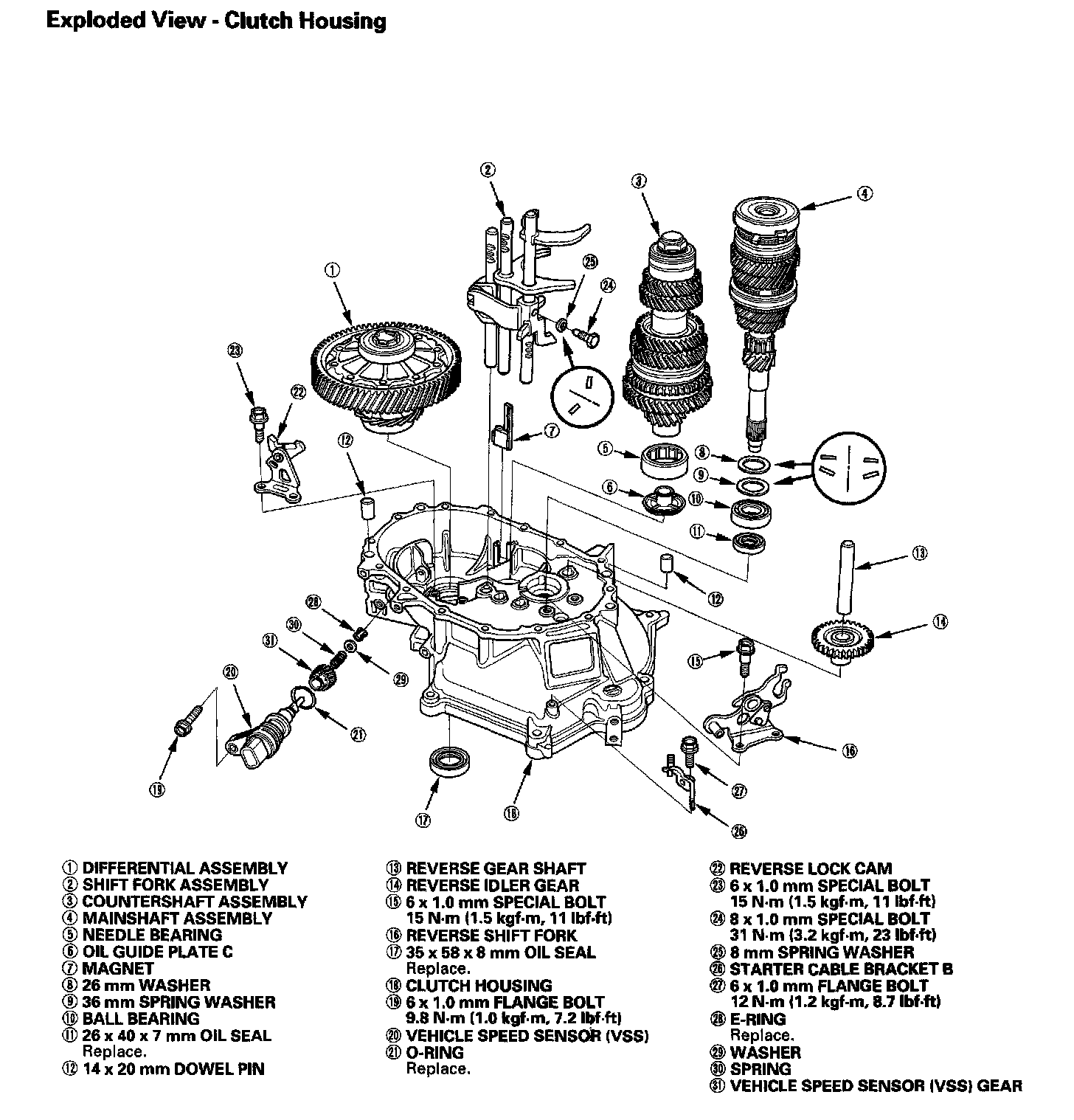

Clutch Housing

Clutch Housing:

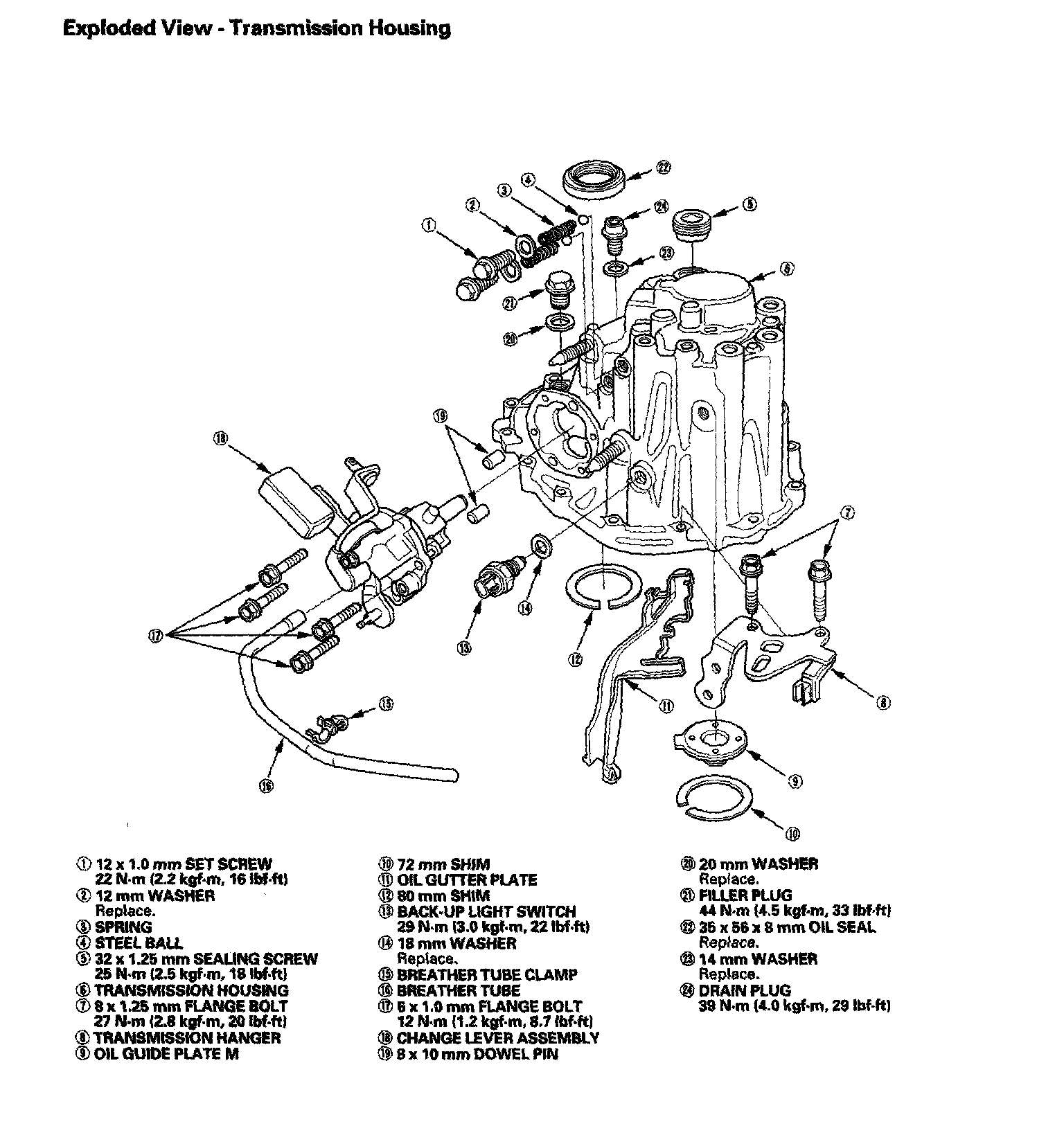

Transmission Housing

Transmission Housing:
