Compressor Clutch Relay: Locations

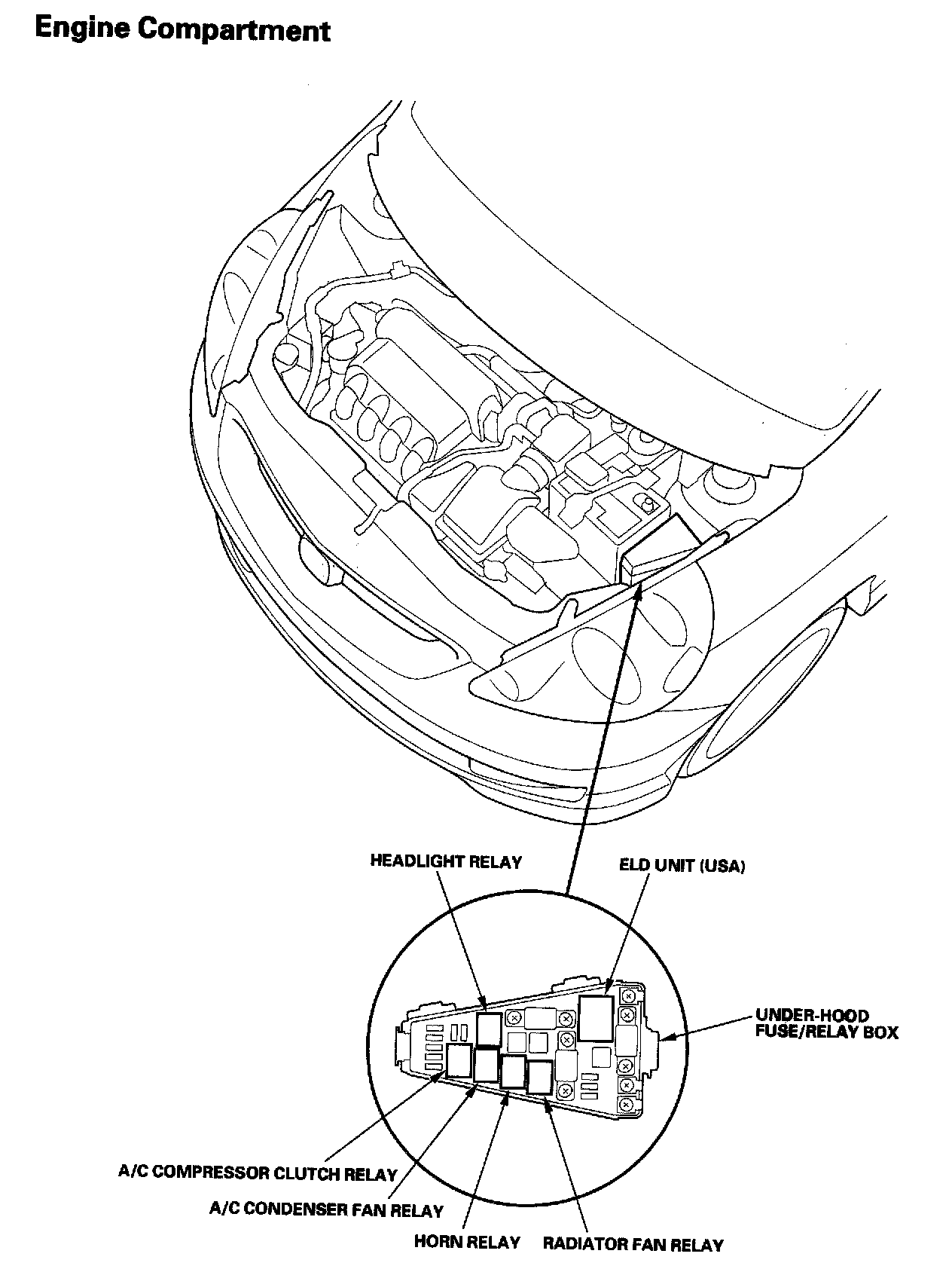

Relay And Control Unit Locations Engine Compartment:

Heating/air Conditioning Component Location Index:

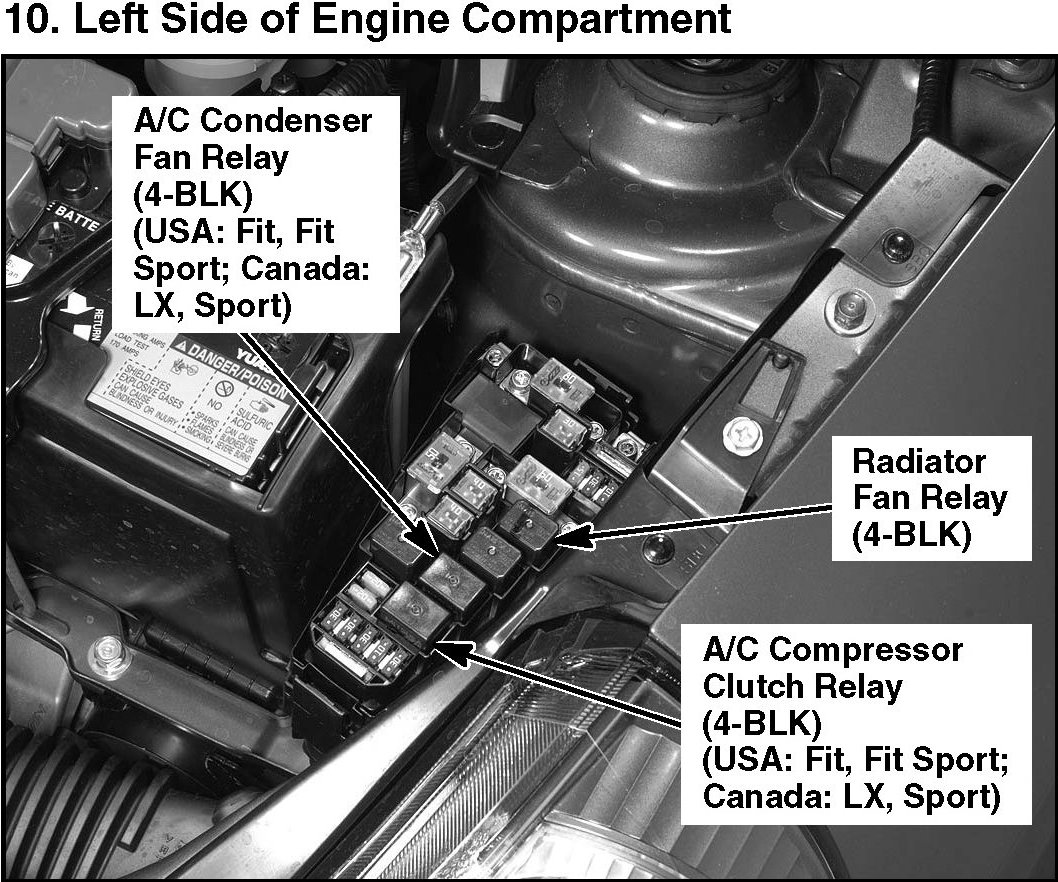

10. Left Side Of Engine Compartment:
