Home >> Honda >> 2007 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case >> With Automatic Transmission

With Automatic Transmission

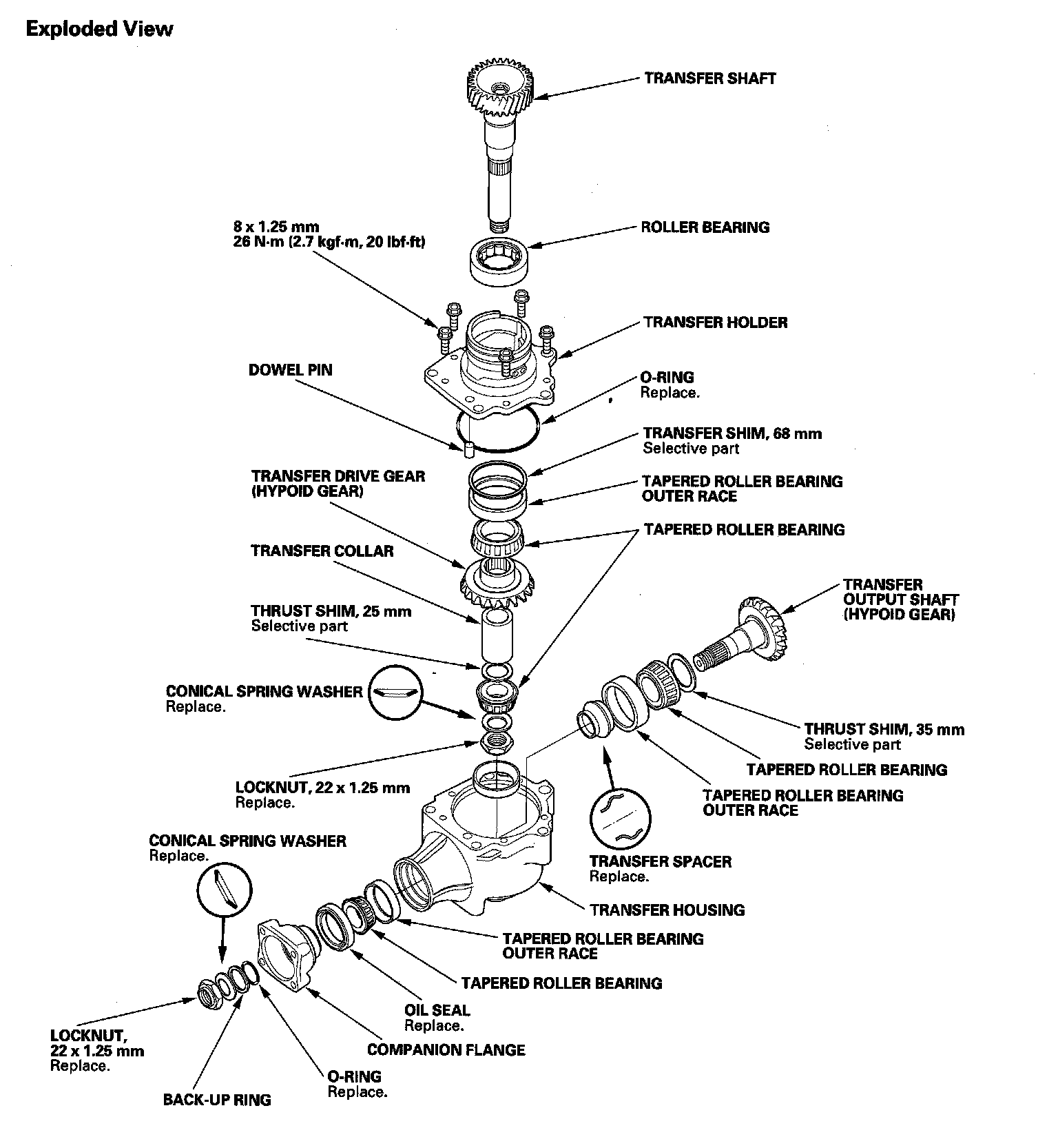

Transfer Assembly:
