Home >> Honda >> 2007 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 226-250 >> 231

View 226-250: 231

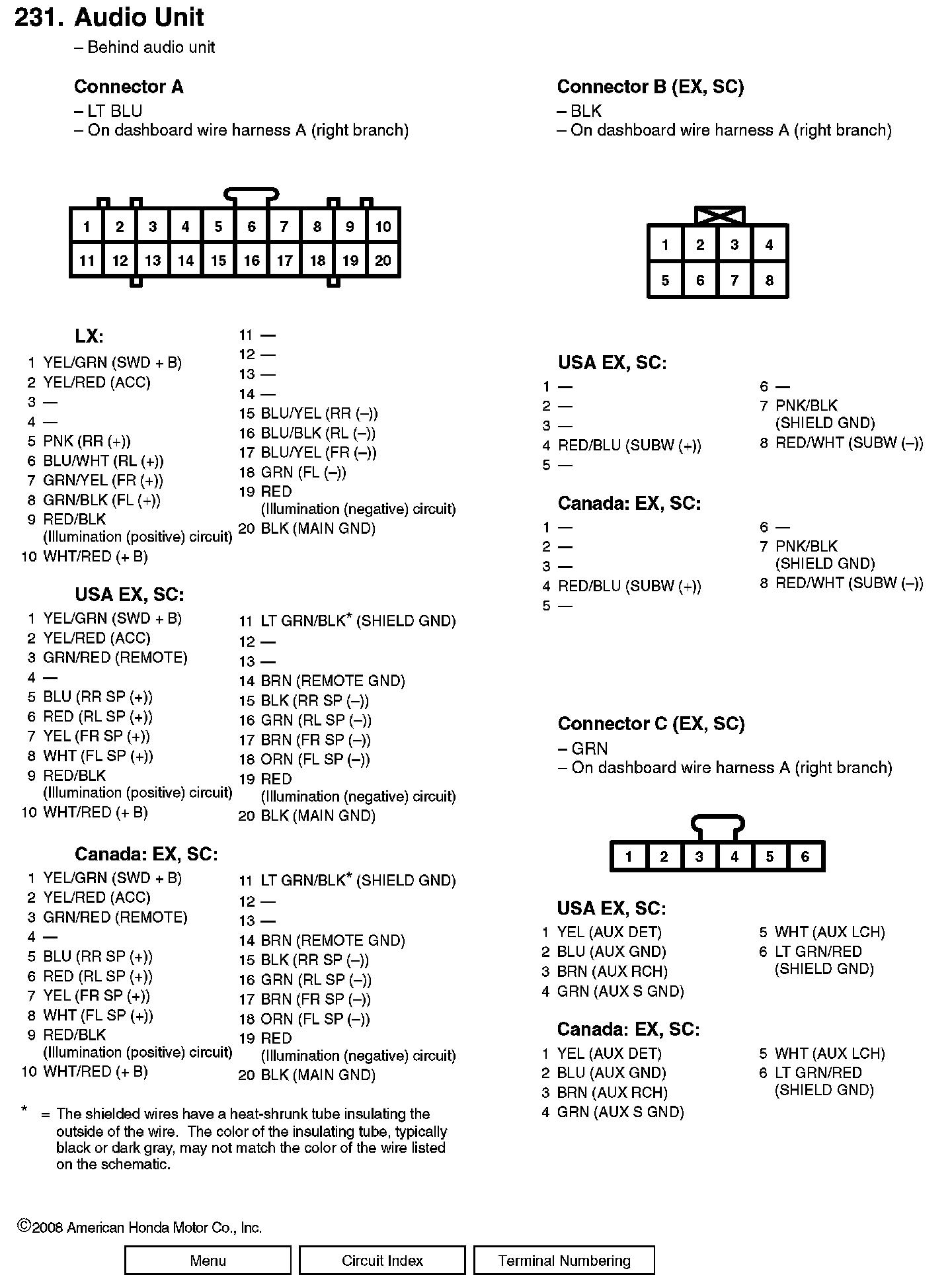

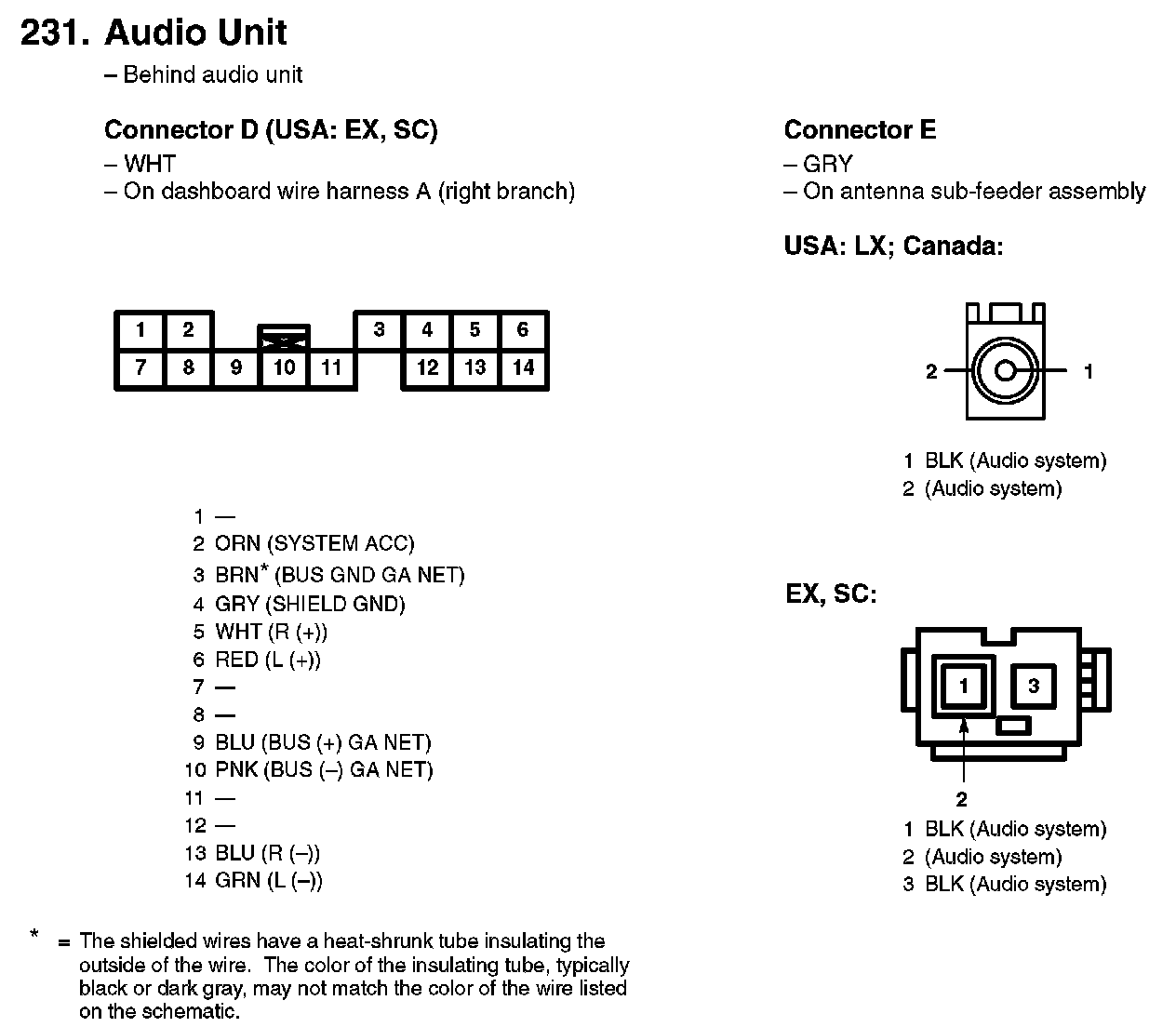

231. Audio Unit:



231. Audio Unit:
