Home >> Honda >> 2007 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> Axle Nut

Axle Nut

Front





Rear

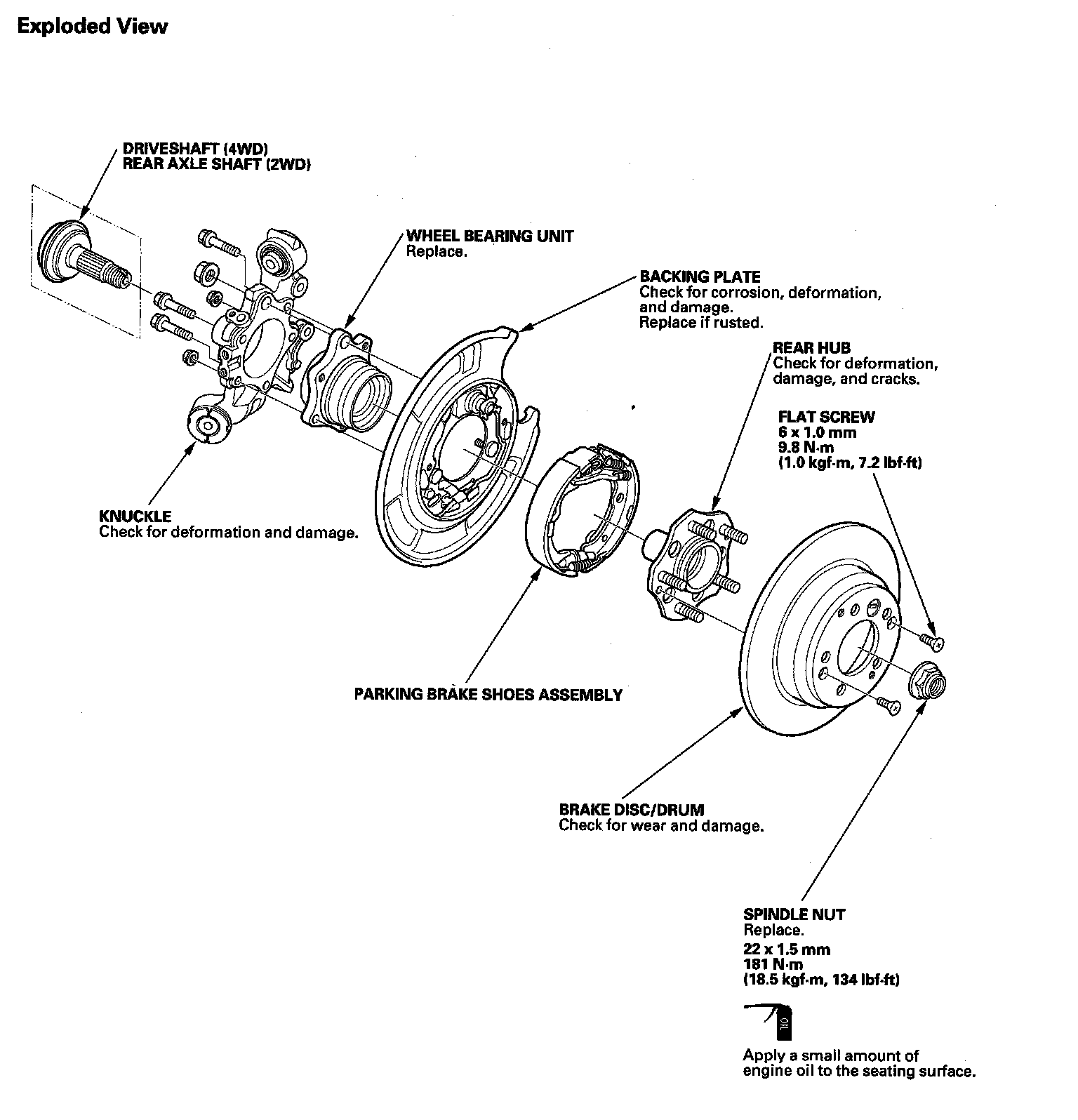

Knuckle/Hub/Wheel Bearing:
