Home >> Honda >> 2007 >> Civic L4-1.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Under-Dash Fuse/Relay Box

Under-Dash Fuse/Relay Box

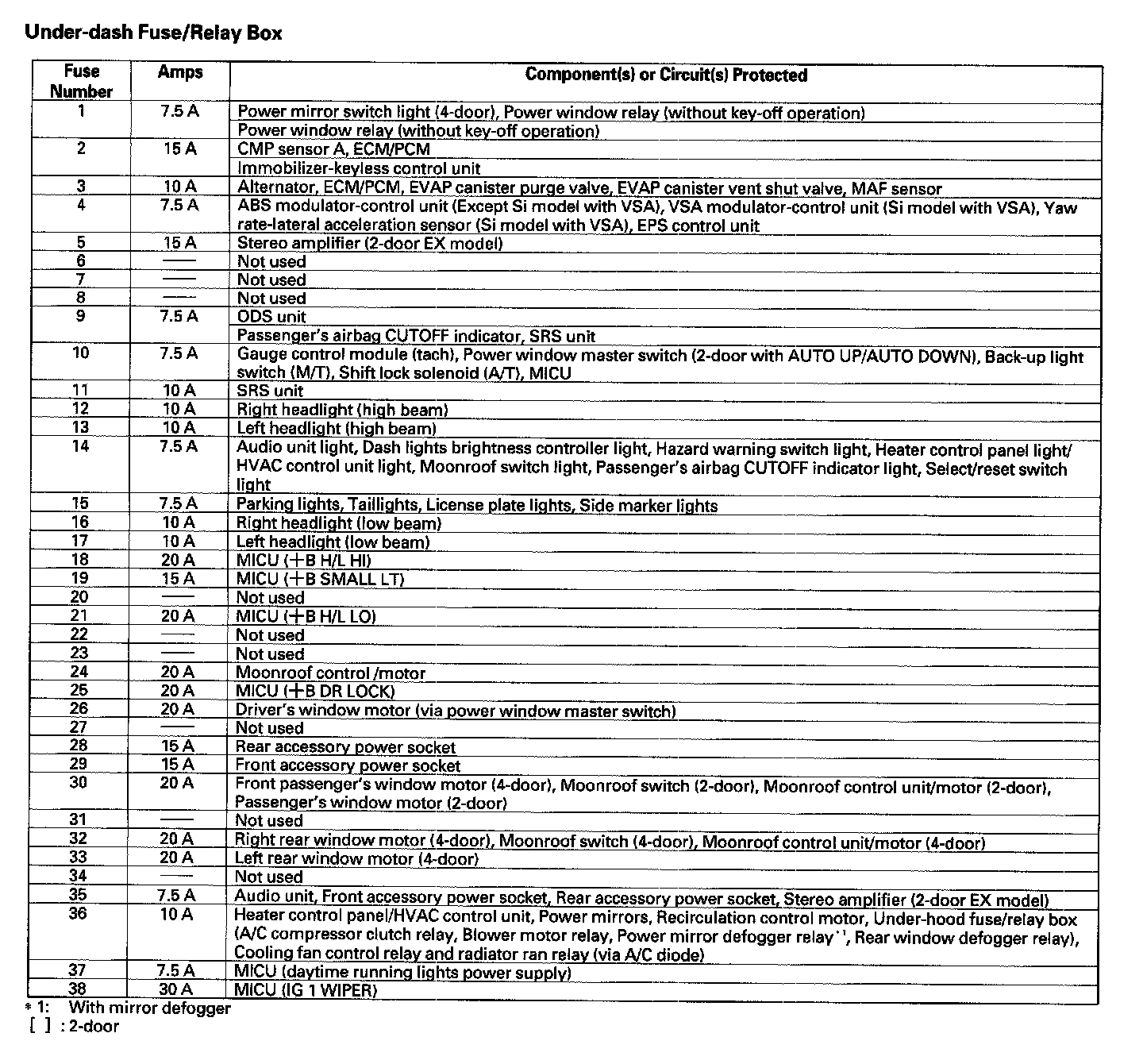

Under-dash Fuse/Relay Box:

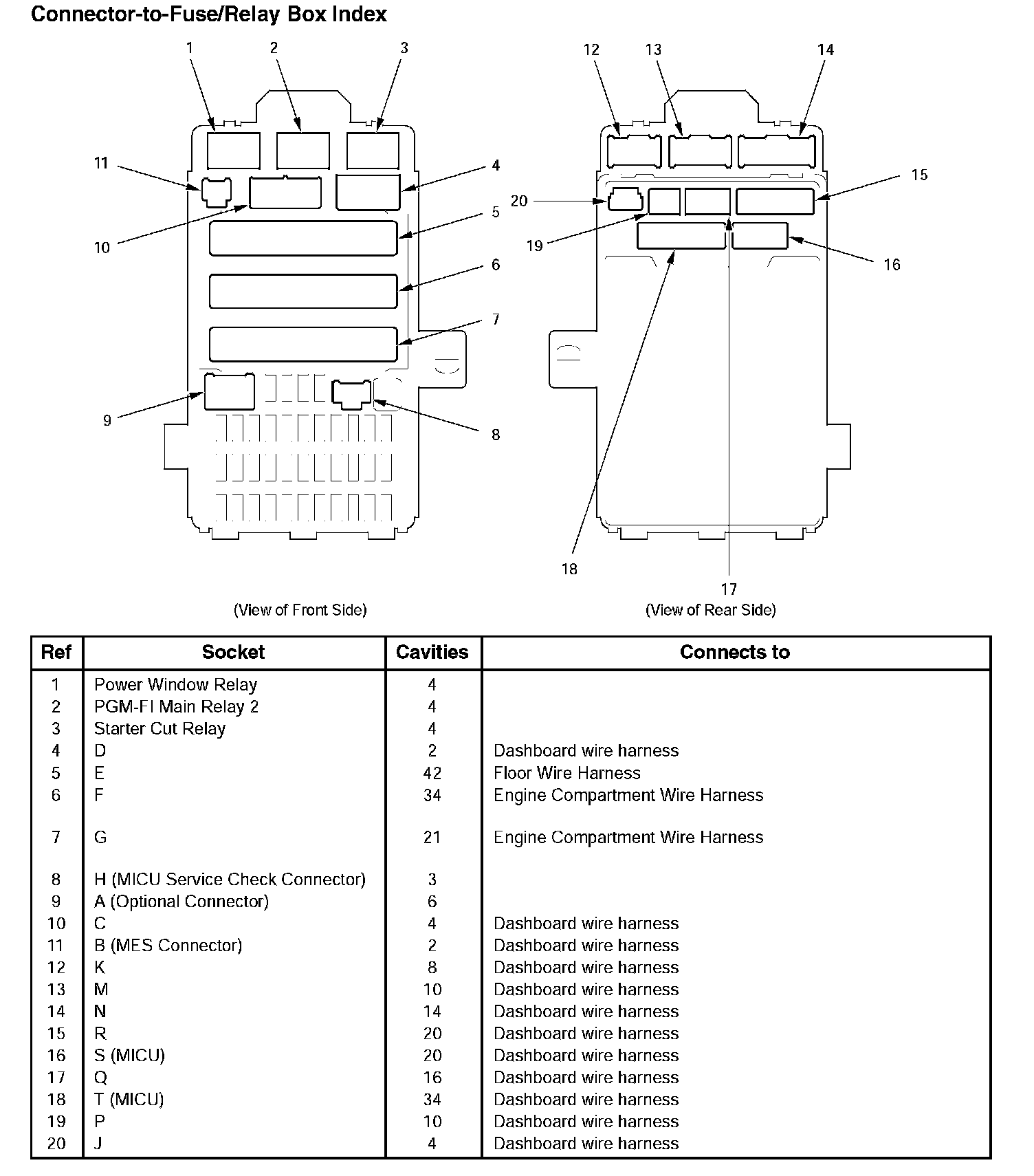

Under-dash Fuse/Relay Box:
