Power Window Switch
Power Window Switch

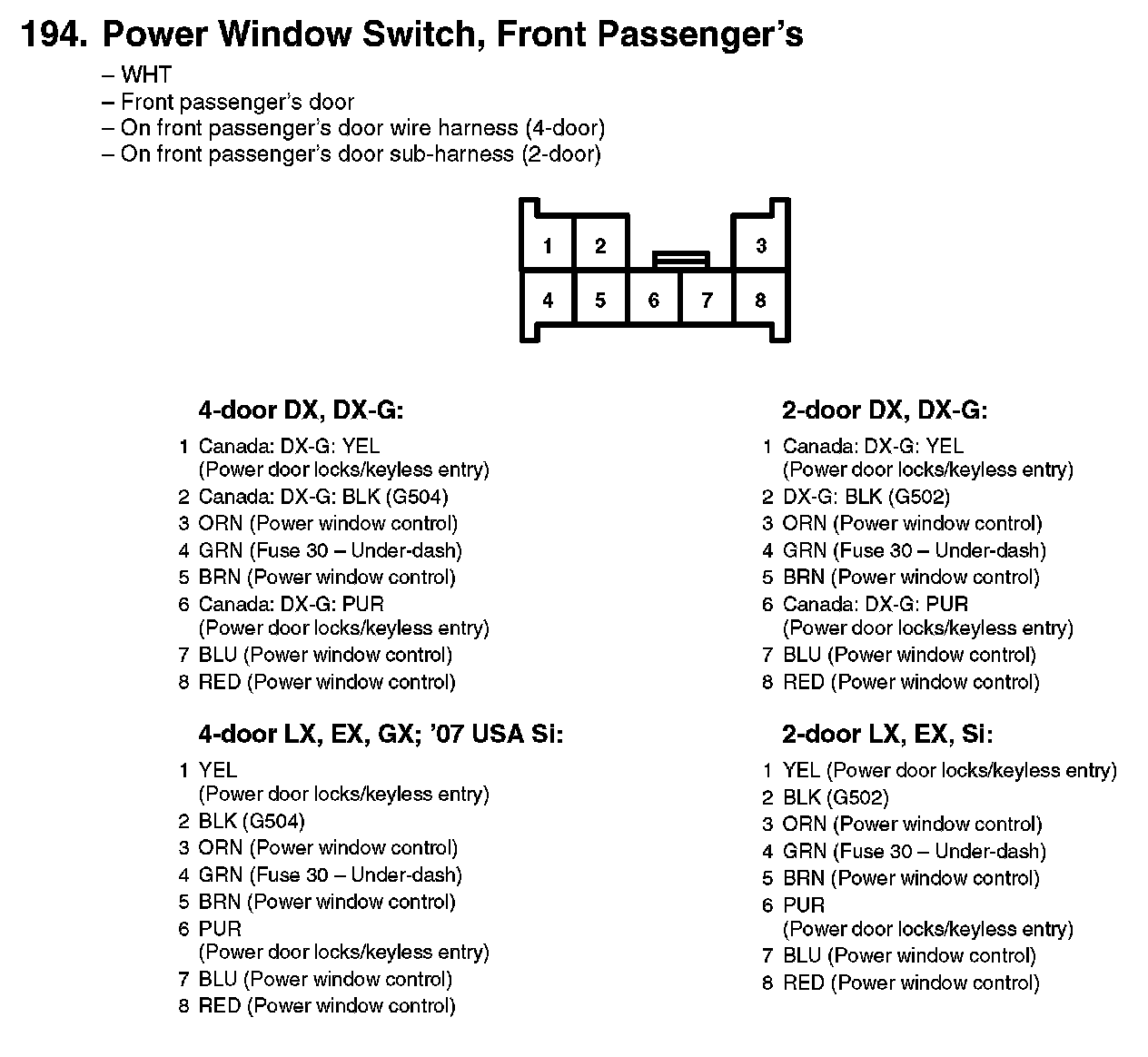

194. Power Window Switch, Front Passenger's:
195. Power Window Switch, Left Rear (4-door):
196. Power Window Switch, Right Rear (4-door):

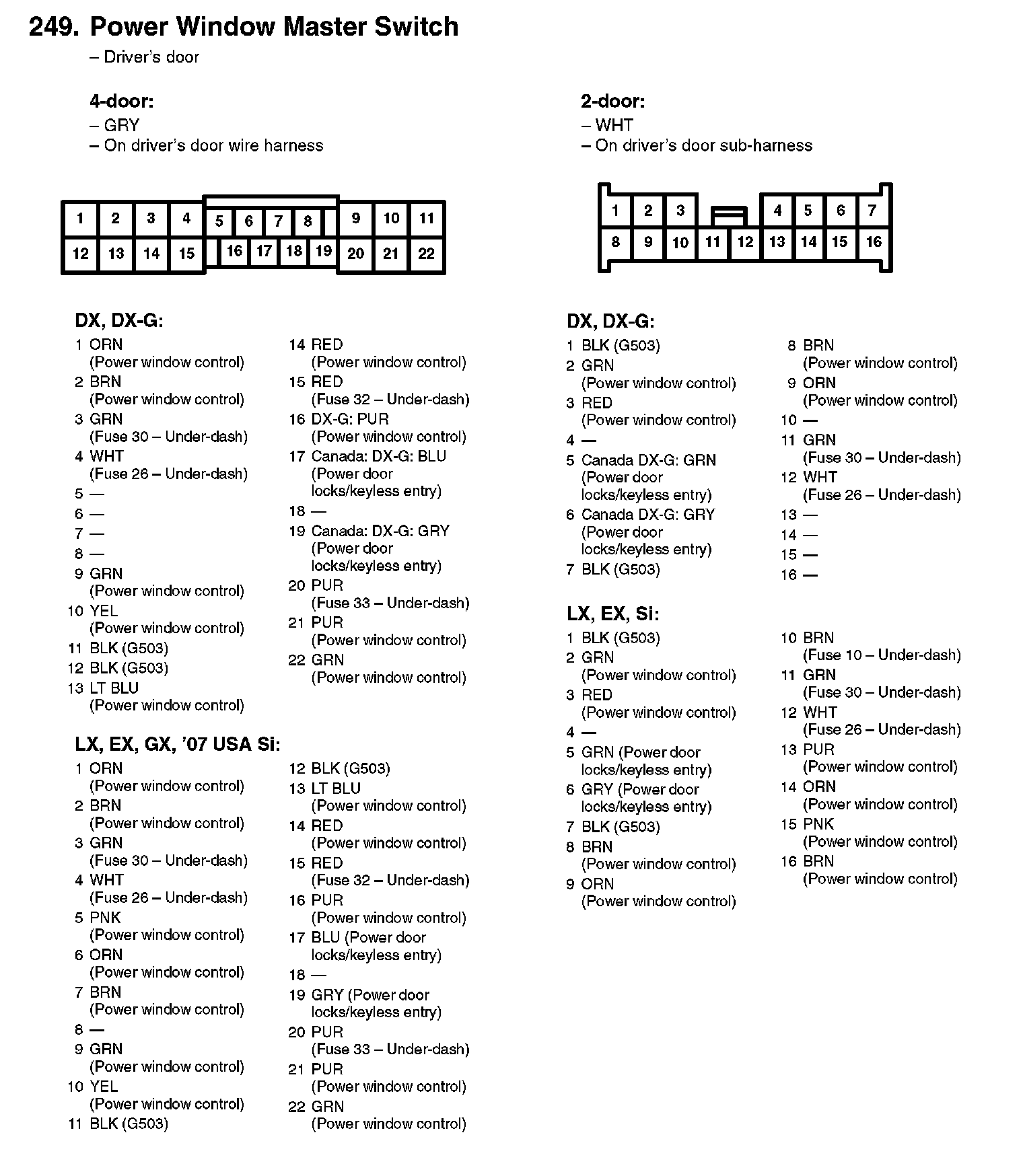

249. Power Window Master Switch:
