Home >> Honda >> 2007 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Injector

Fuel Injector

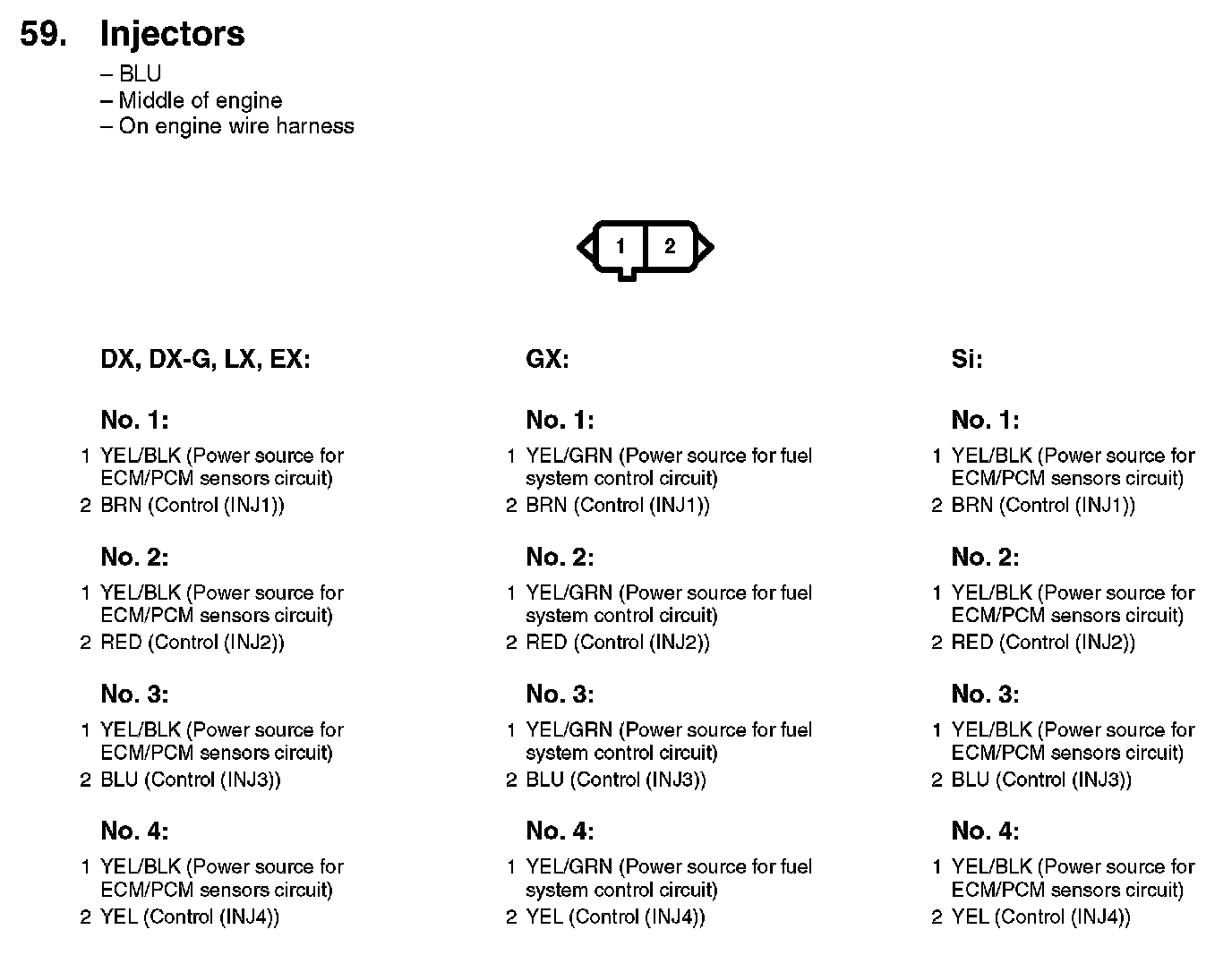

59. Injectors:
