View 76-100: 86

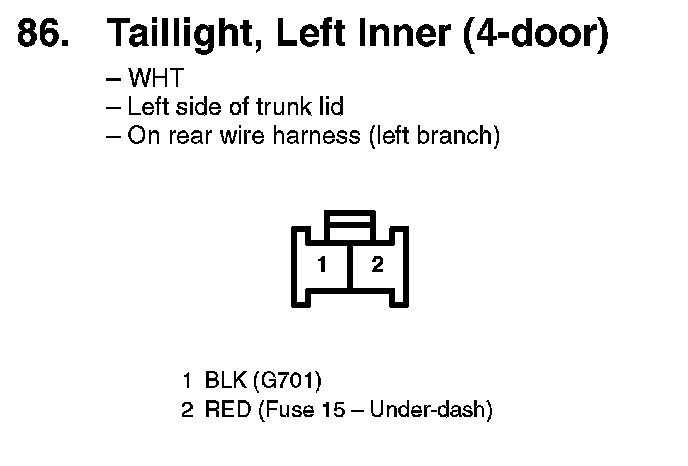

86. Taillight, Left Inner (4-door):

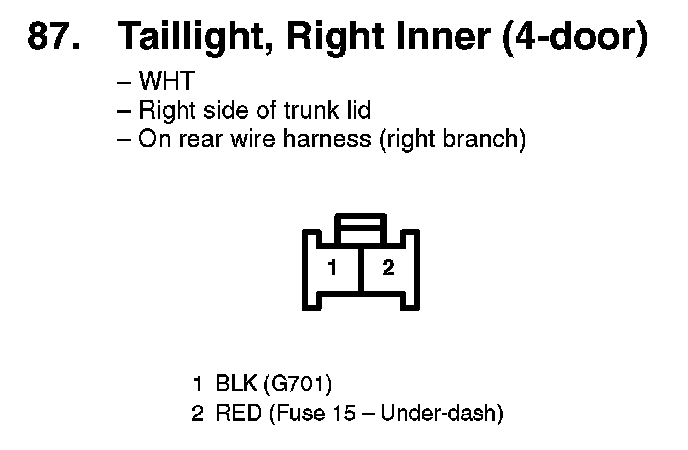

87. Taillight, Right Inner (4-door):

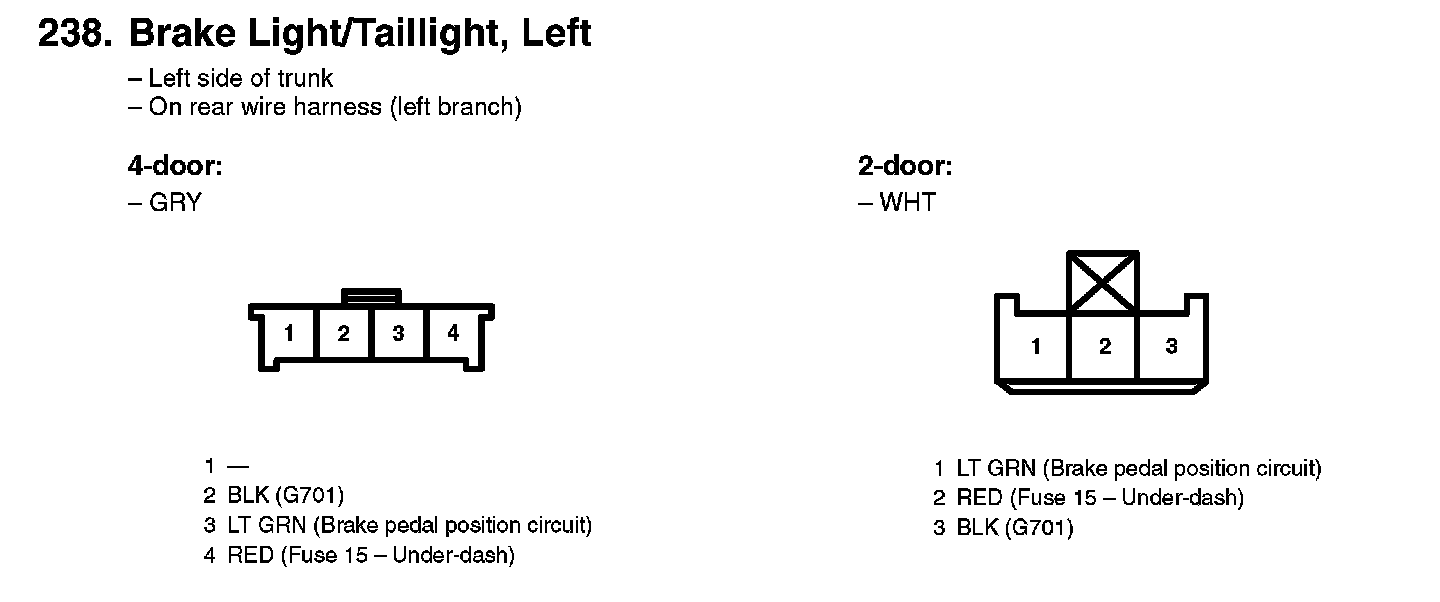

238. Brake Light/Taillight, Left:

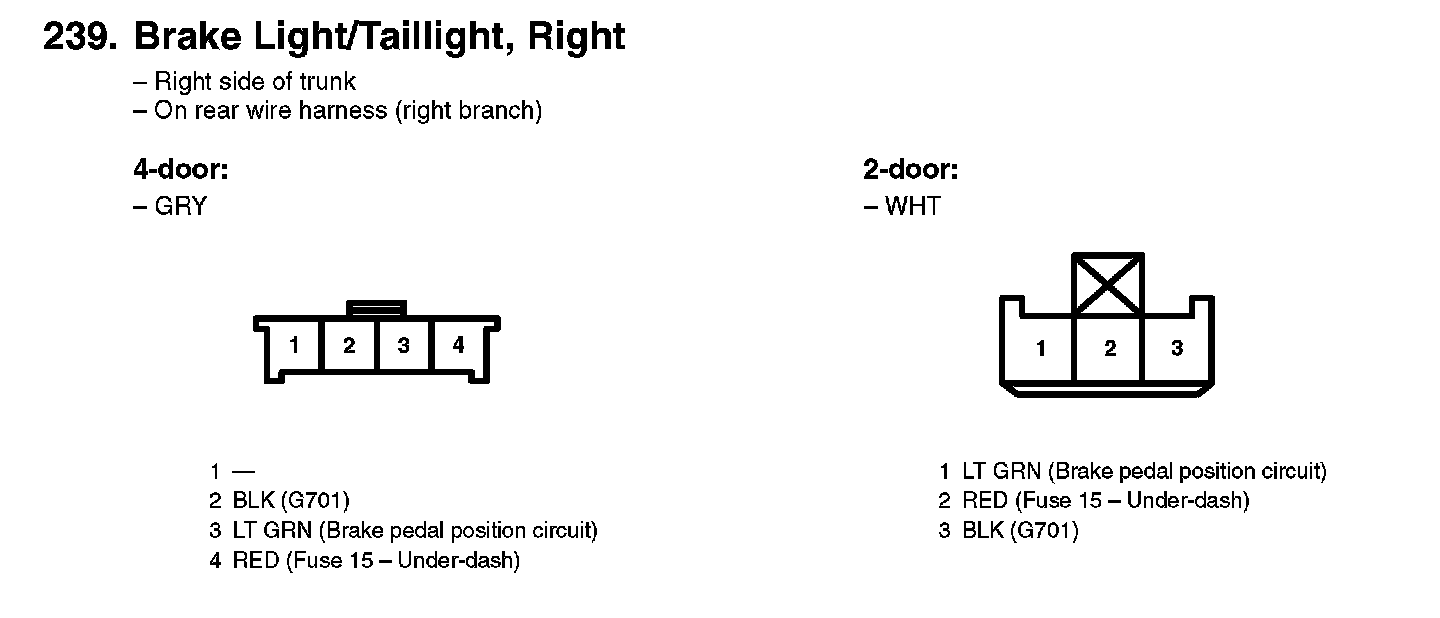

239. Brake Light/Taillight, Right:
