Home >> Honda >> 2007 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 76-100 >> 84

View 76-100: 84

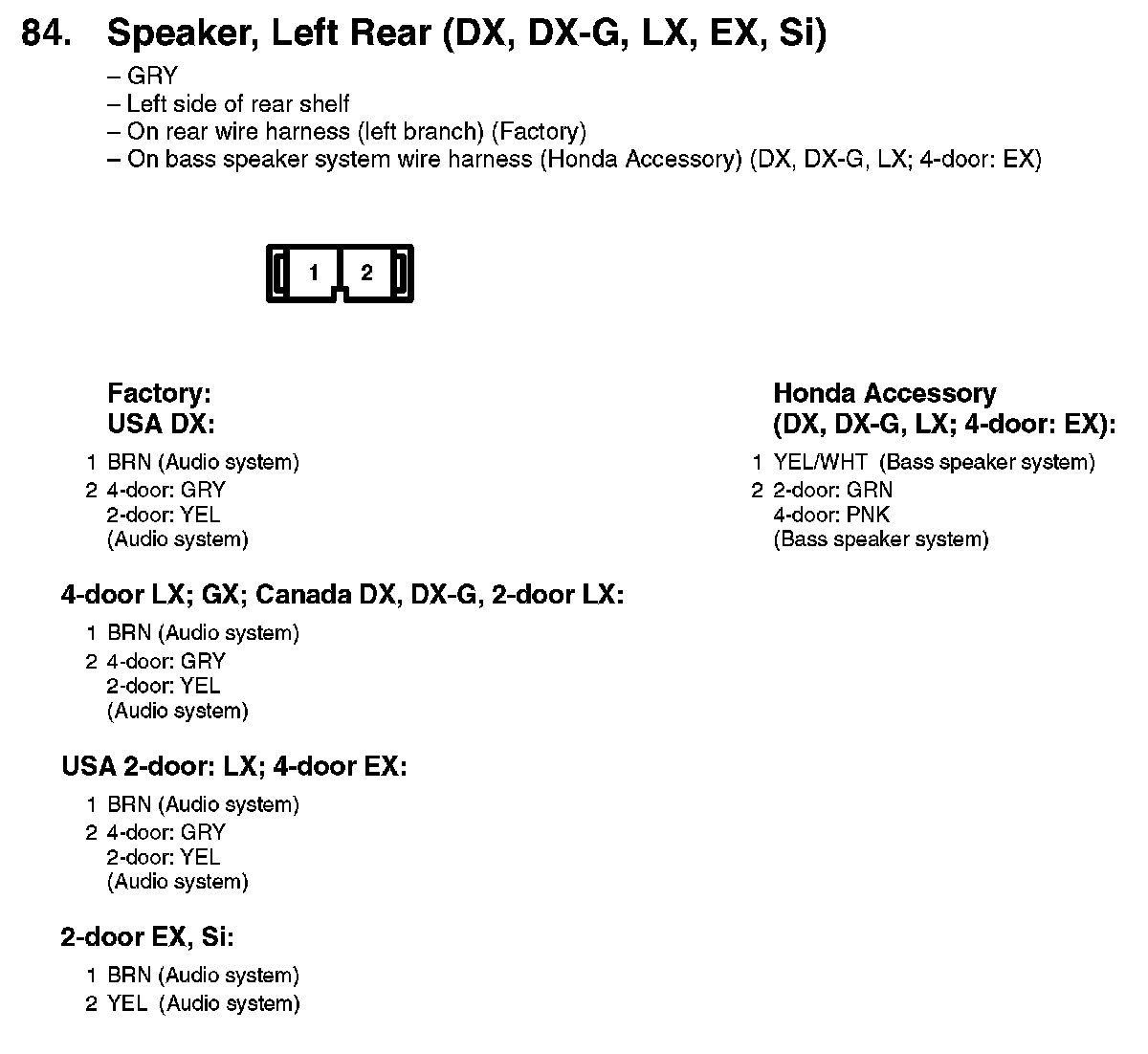

84. Speaker, Left Rear (DX, DX_G, LX, EX, Si):
