Intake Manifold

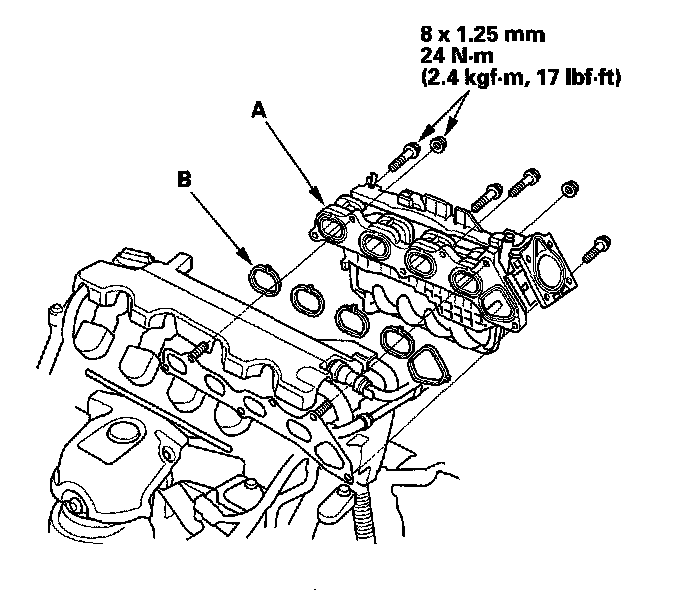

Intake Manifold
Tighten the bolts and nuts in a crisscross pattern in two or three steps, beginning with the inner bolt.





Throttle body
Throttle body (A)
