Fuel Injector Driver Module (CNG): Diagrams

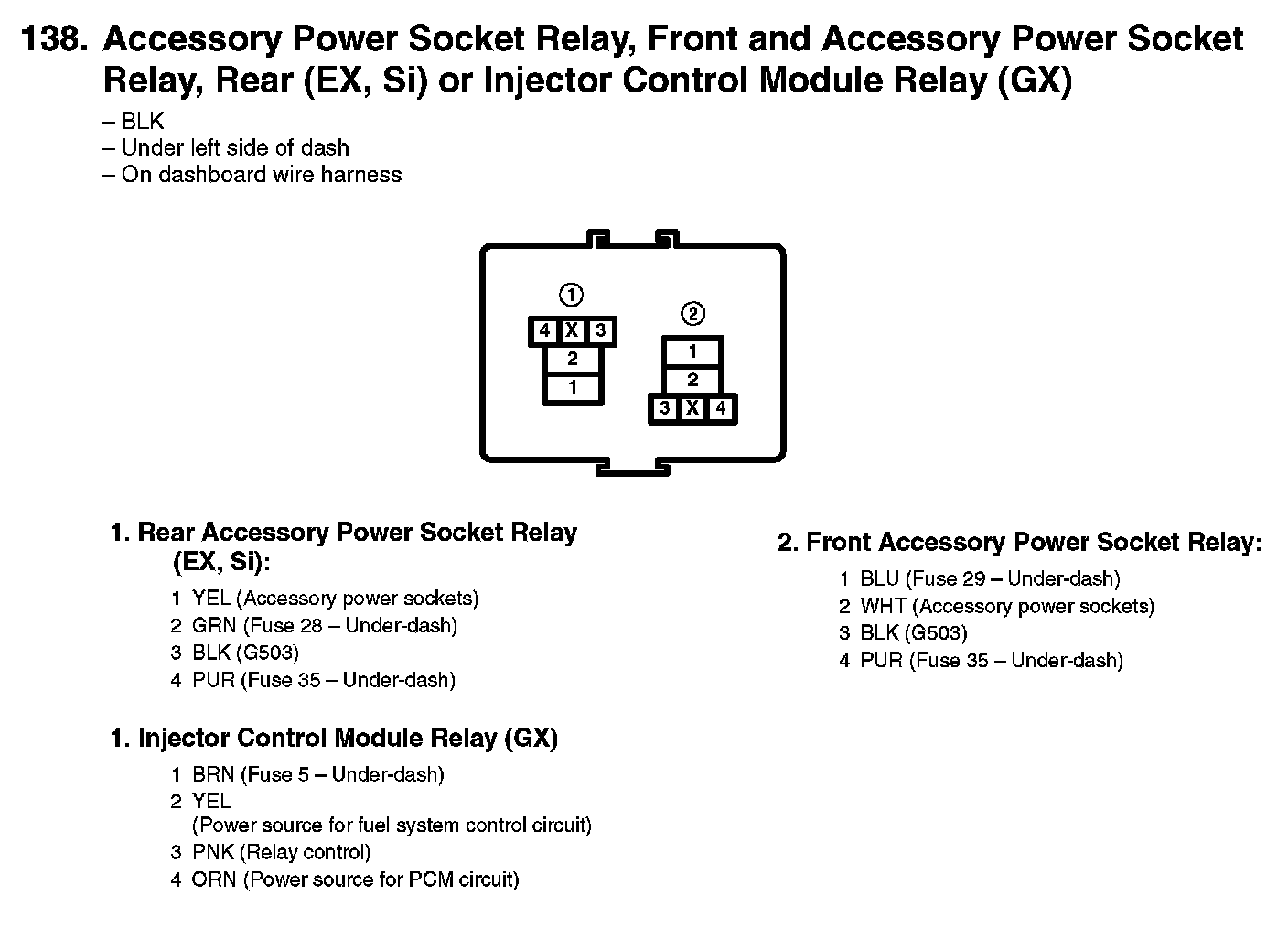

138. Accessory Power Socket Relay, Front And Accessory Power Socket Relay, Rear (EX, Si) Or Injector Control Module Relay (GX):



266. Injector Control Module (GX):
