Information Bus: Locations

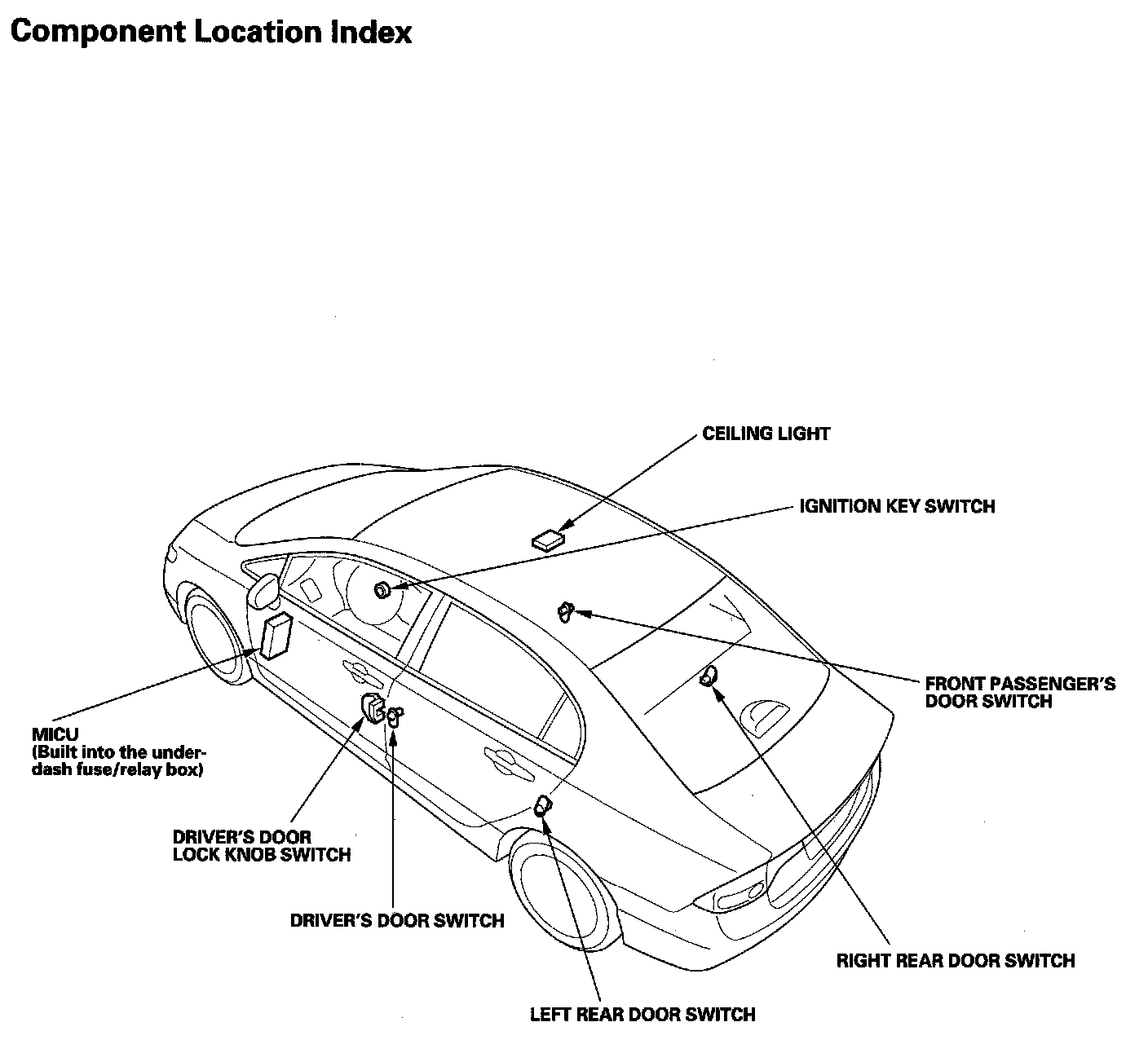

Multiplex Integrated Control System Component Location Index:

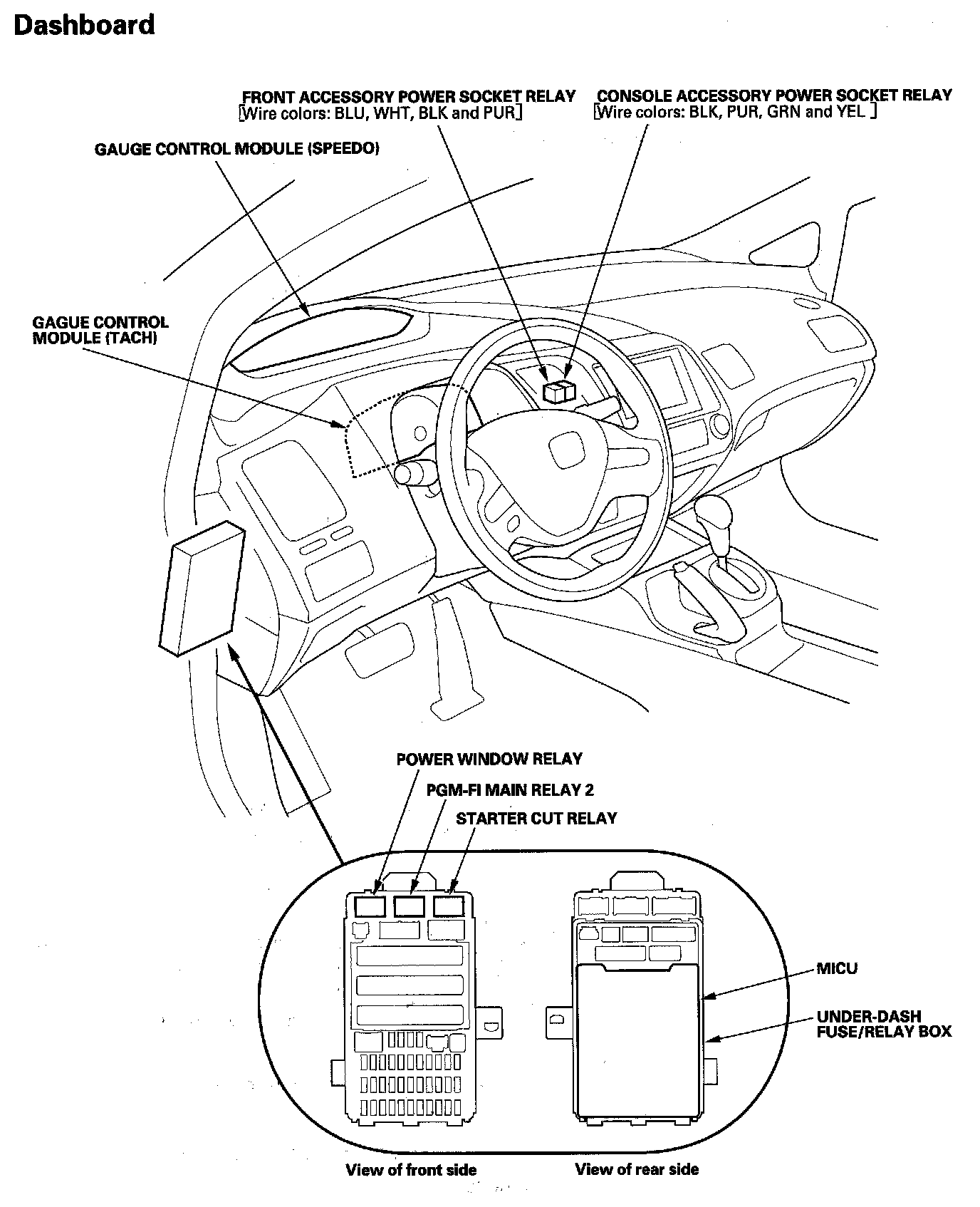

Relay and Control Unit Locations Dashboard:

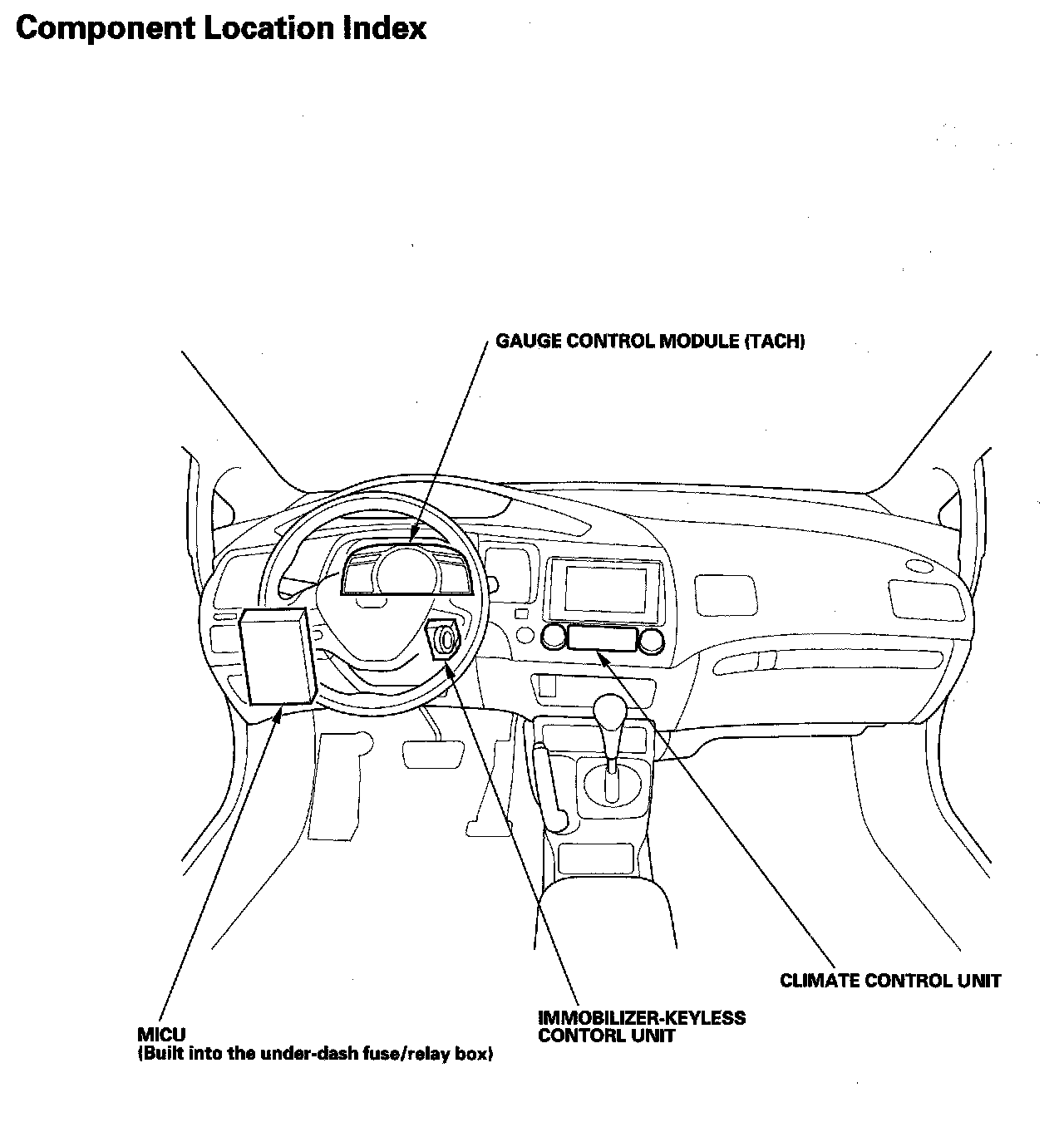

Keyless/Power Door Locks/Security System Component Location Index:



Entry Lights Control System Component Location Index:
