Home >> Honda >> 2007 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Angle Sensor

Steering Angle Sensor

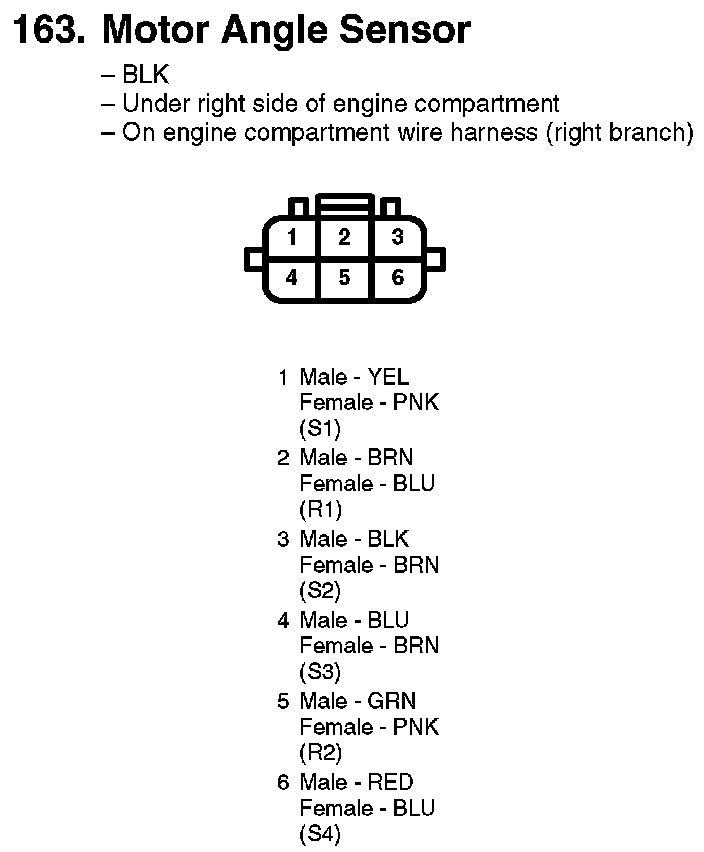

163. Motor Angle Sensor:
