Home >> Honda >> 2007 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

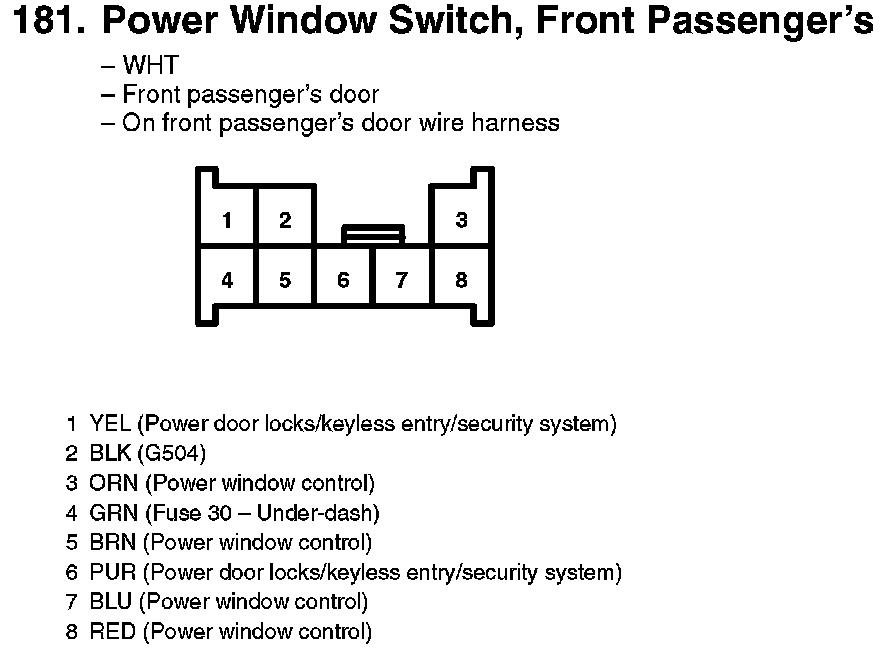

181. Power Window Switch, Front Passenger's:

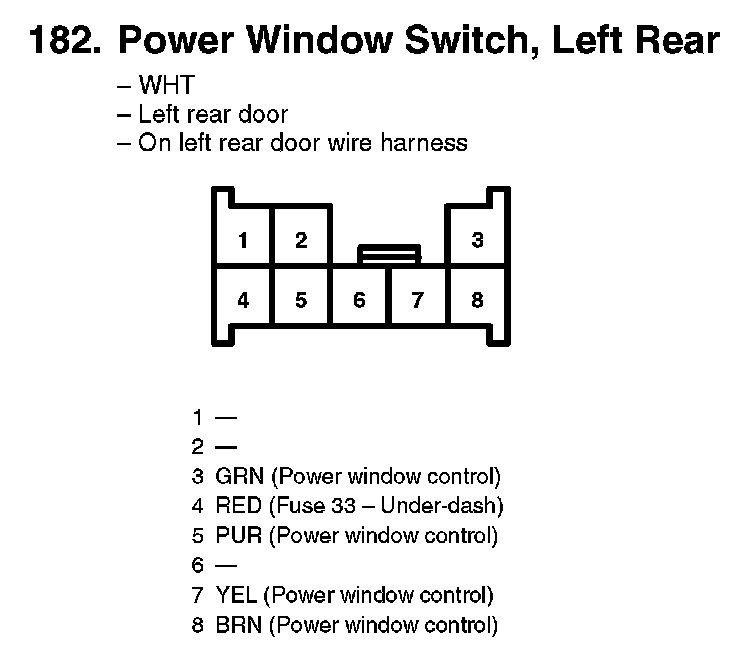

182. Power Window Switch, Left Rear:

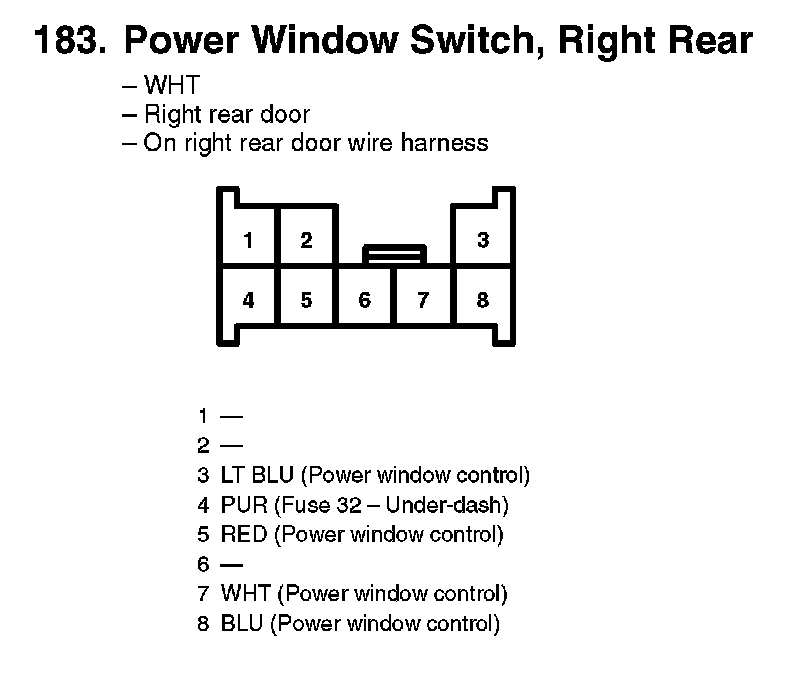

183. Power Window Switch, Right Rear:

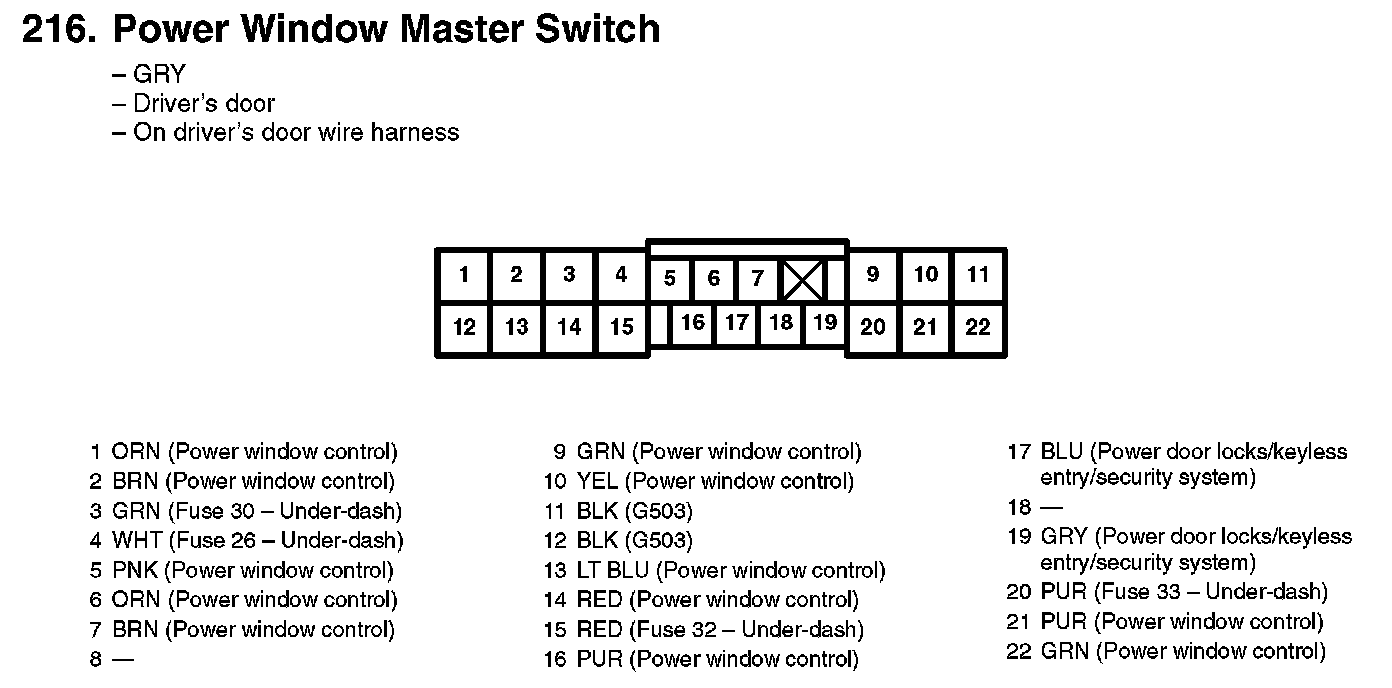

216. Power Window Master Switch:

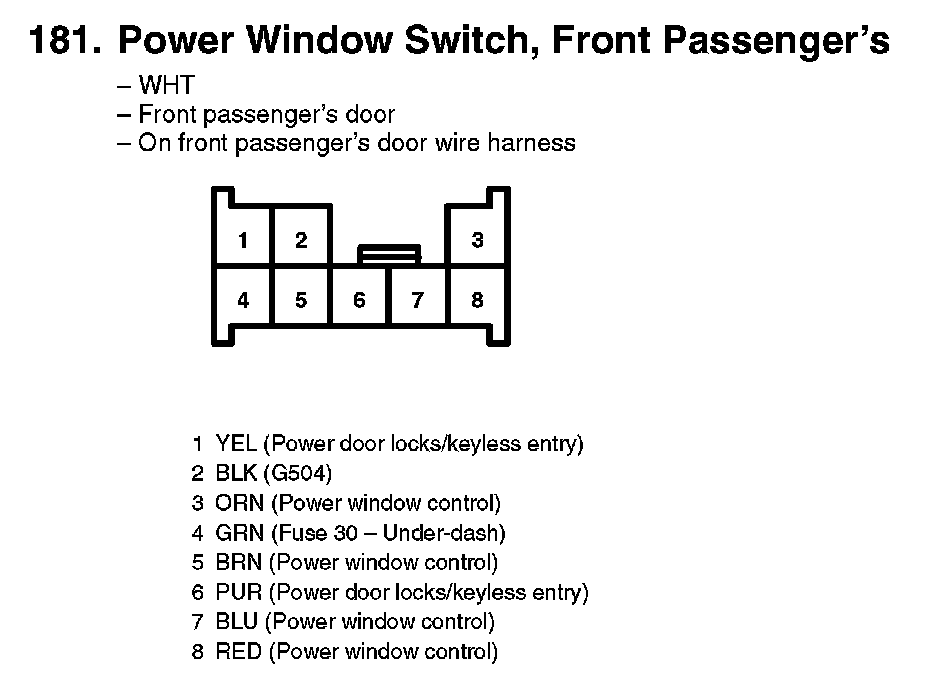

181. Power Window Switch, Front Passenger's:

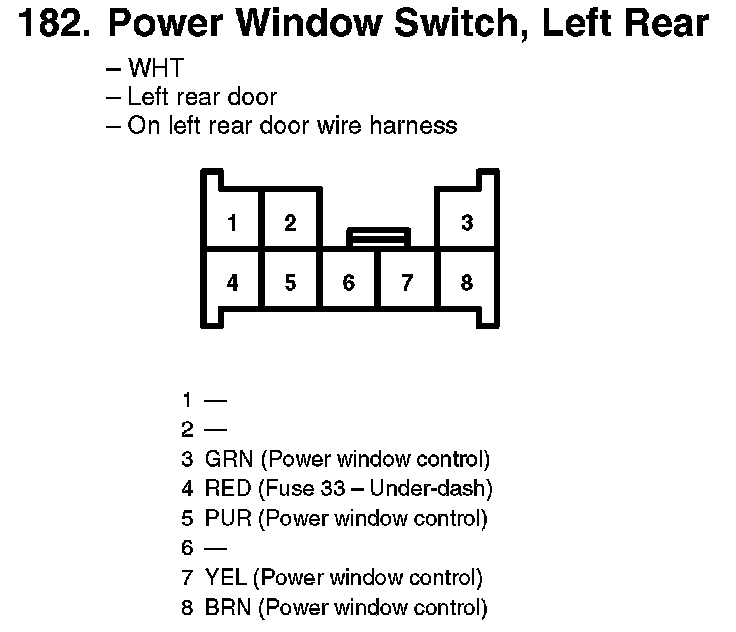

182. Power Window Switch, Left Rear:

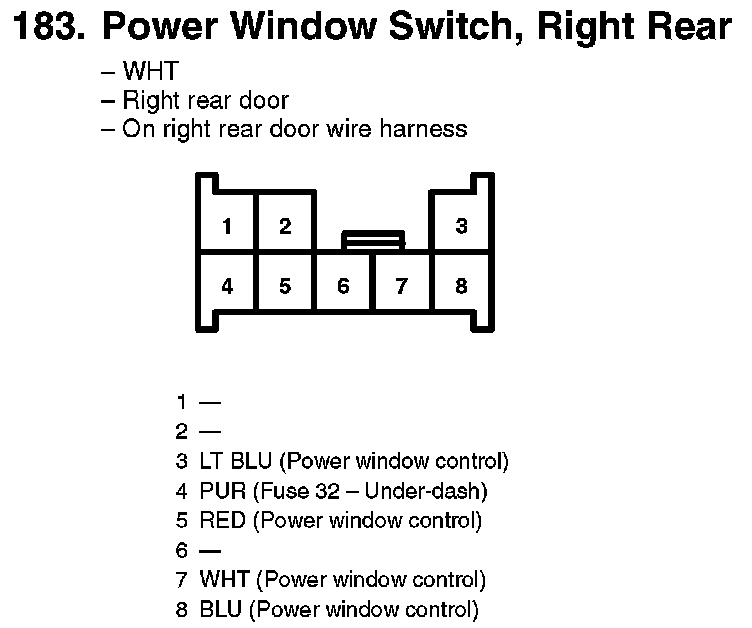

183. Power Window Switch, Right Rear:

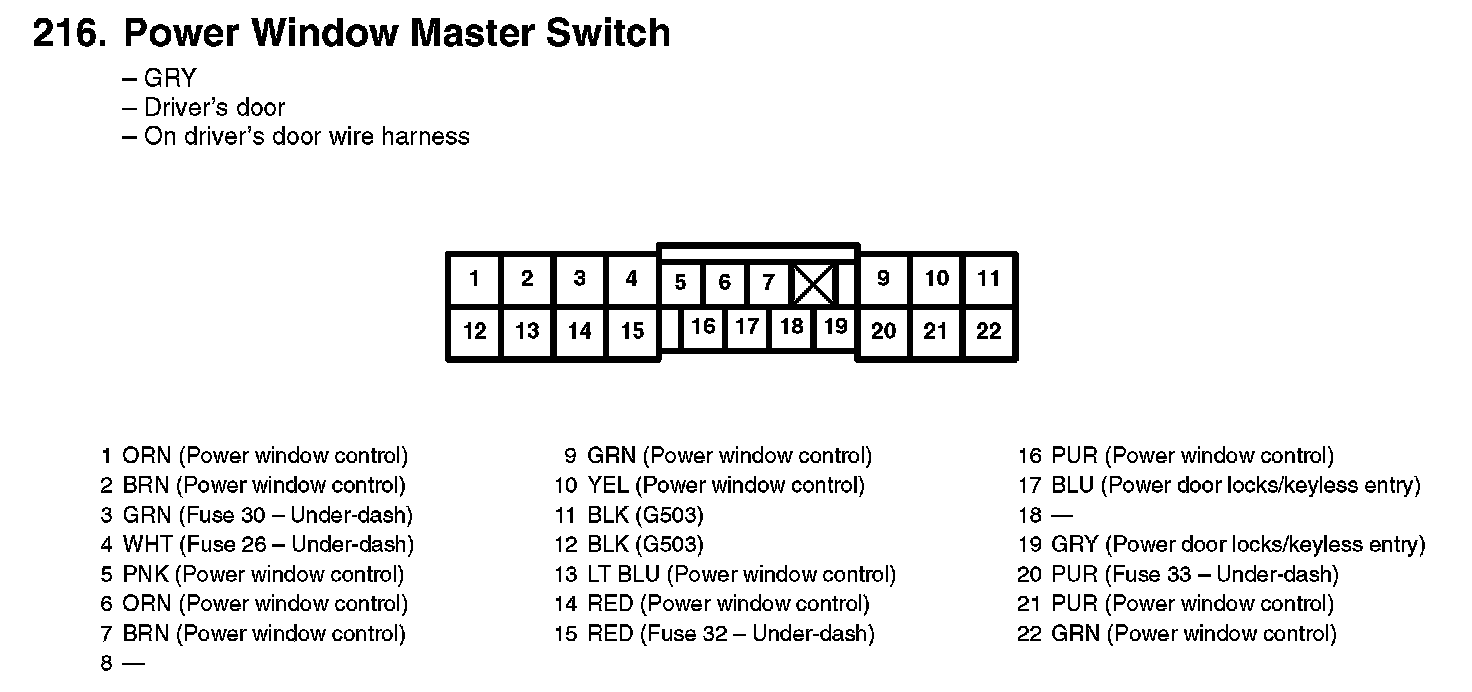

216. Power Window Master Switch:
