Fuse Block

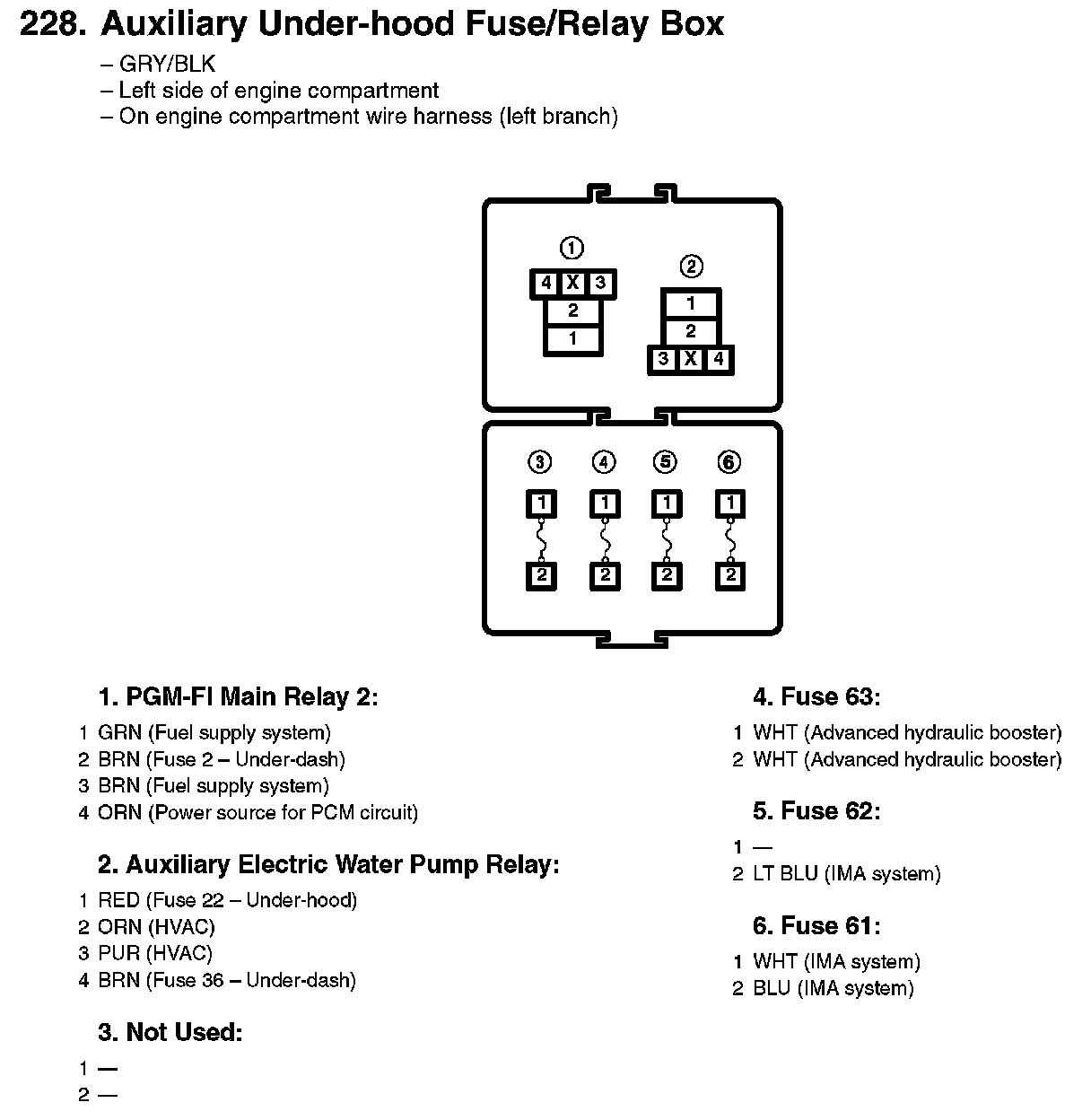

228. Auxiliary Under-hood Fuse/Relay Box:

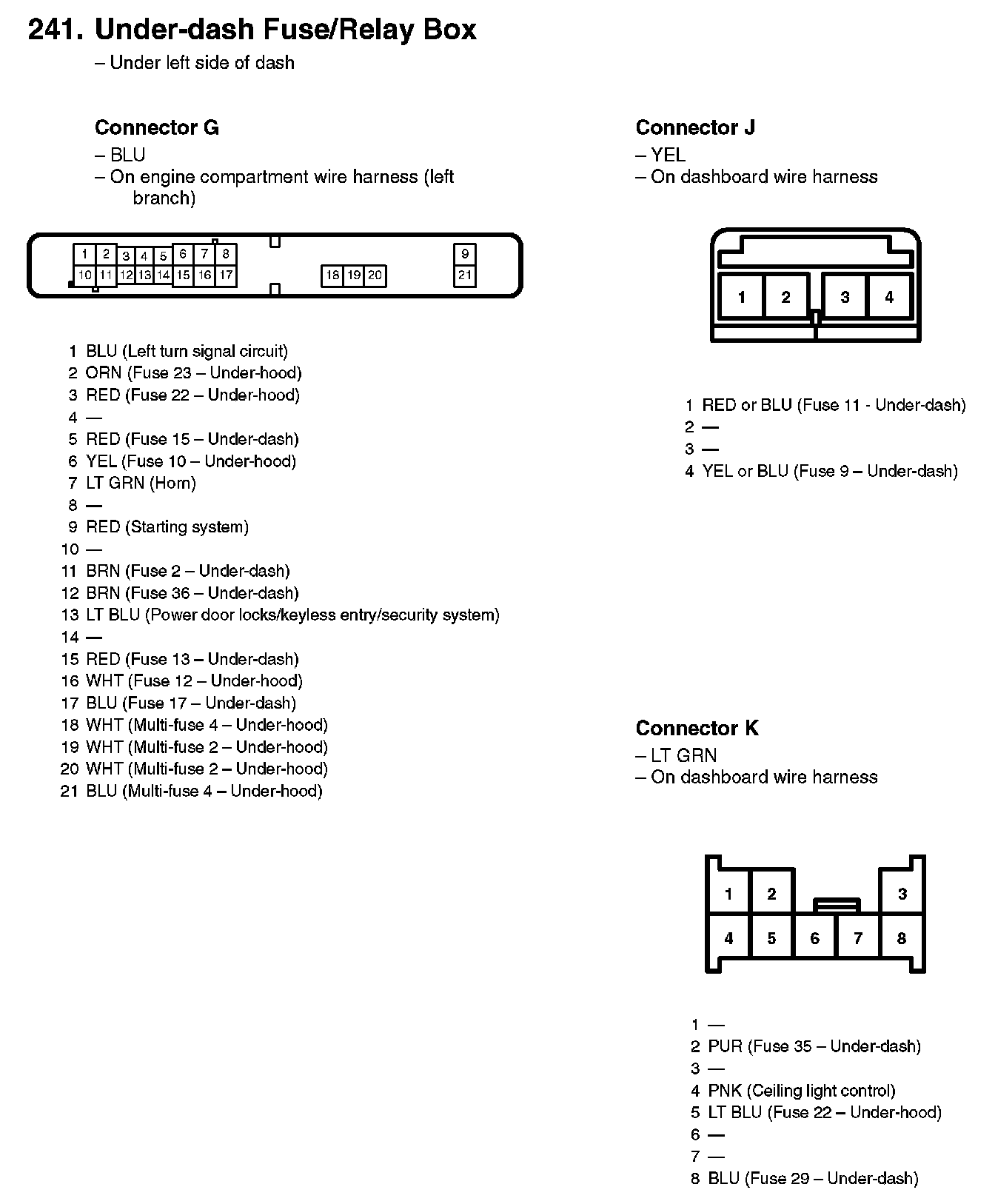

241. Under-dash Fuse/Relay Box:

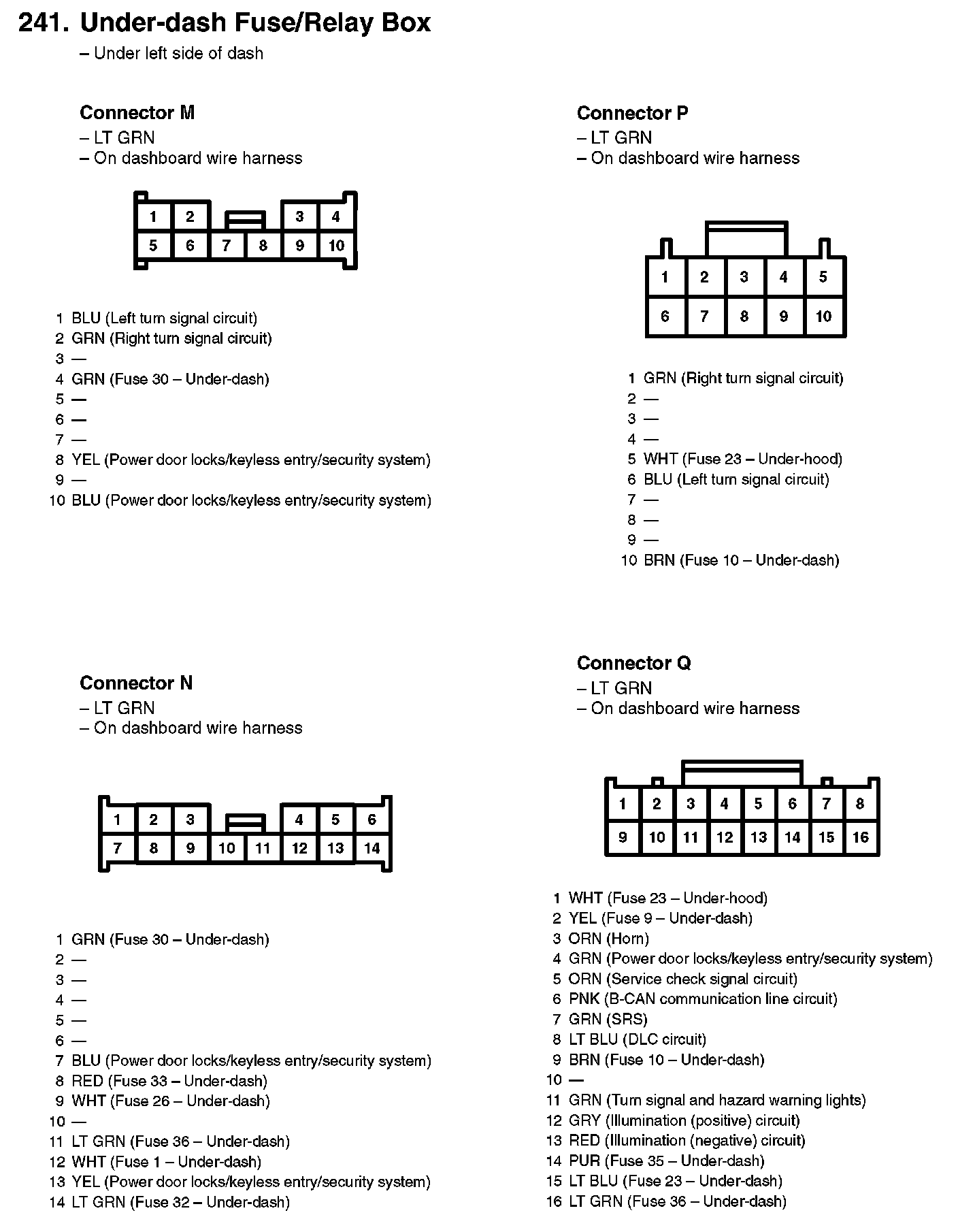

241. Under-dash Fuse/Relay Box:

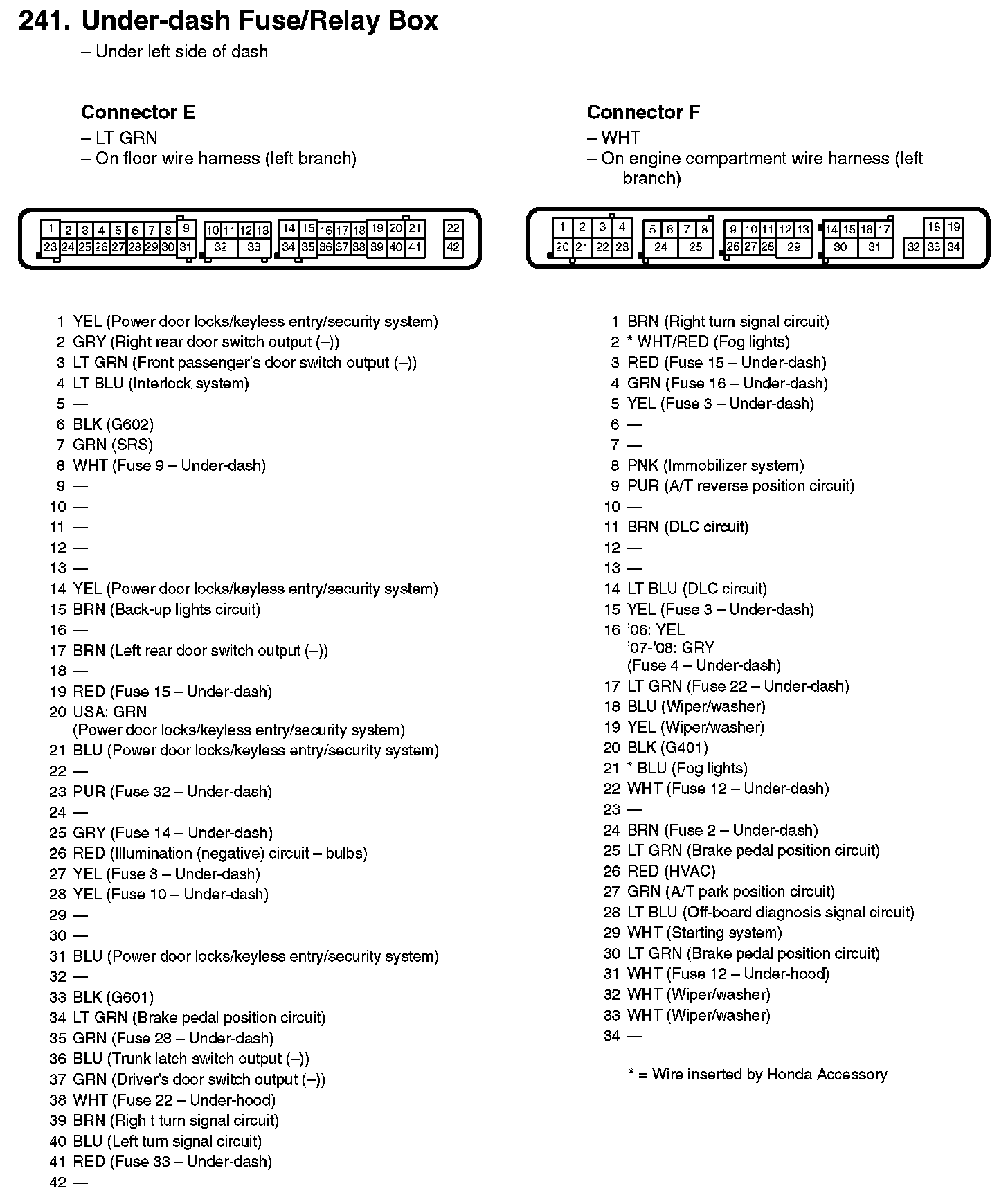

241. Under-dash Fuse/Relay Box:

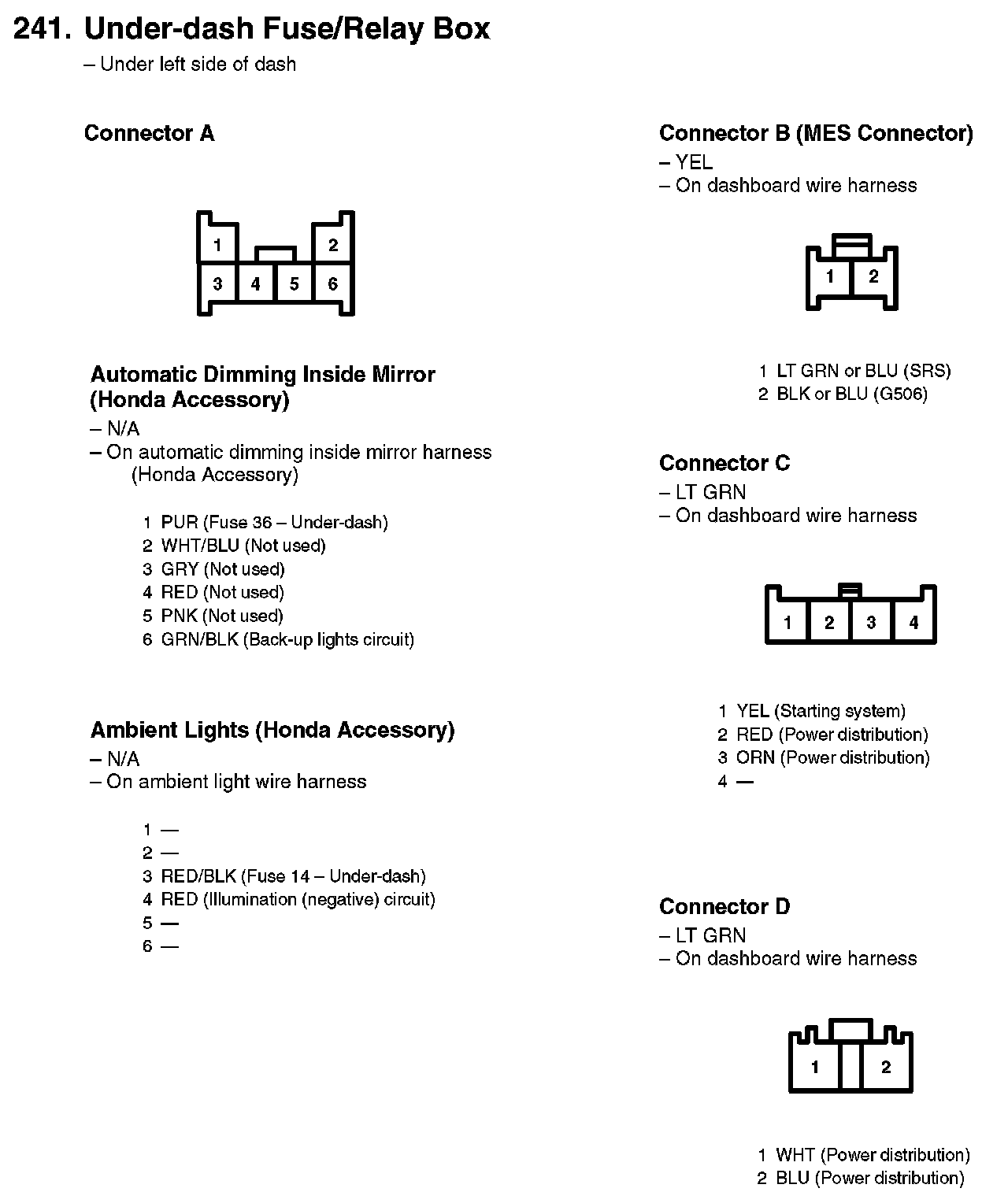

241. Under-dash Fuse/Relay Box:

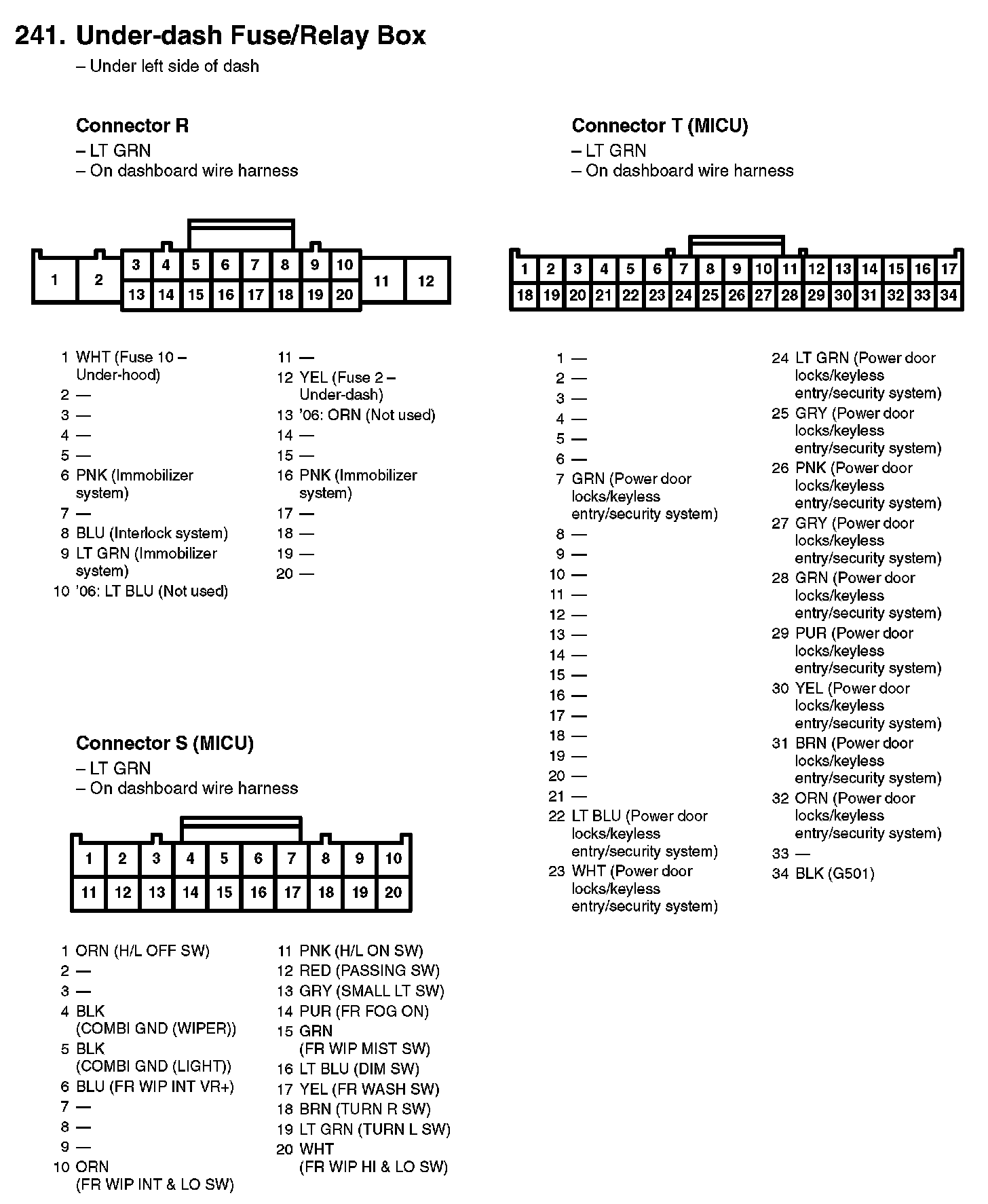

241. Under-dash Fuse/Relay Box:

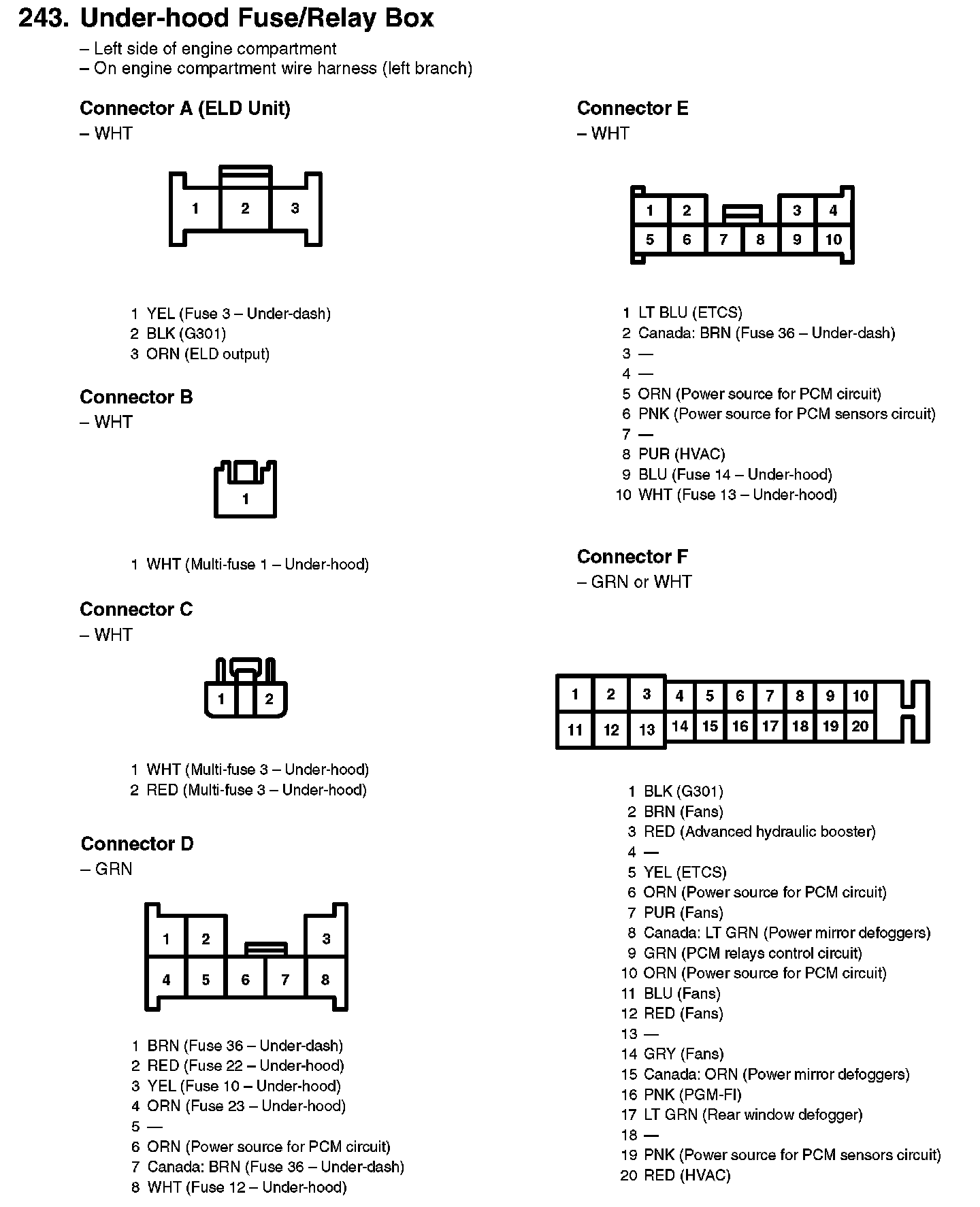

243. Under-hood Fuse/Relay Box:



243. Under-hood Fuse/Relay Box:
