Home >> Honda >> 2007 >> CR-V 2WD L4-2.4L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations

Power Window Switch: Locations

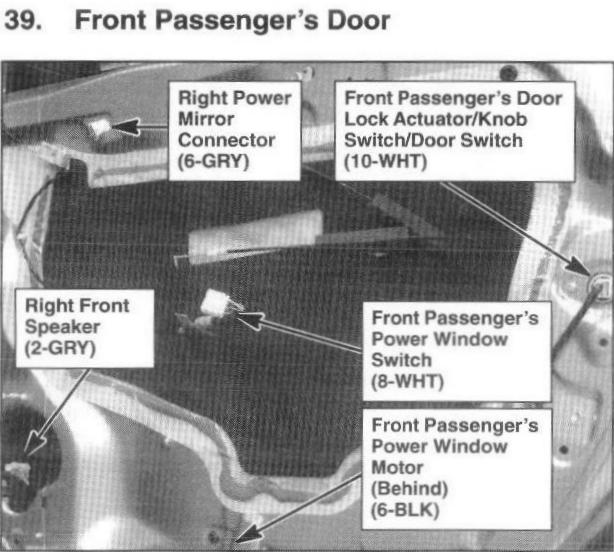

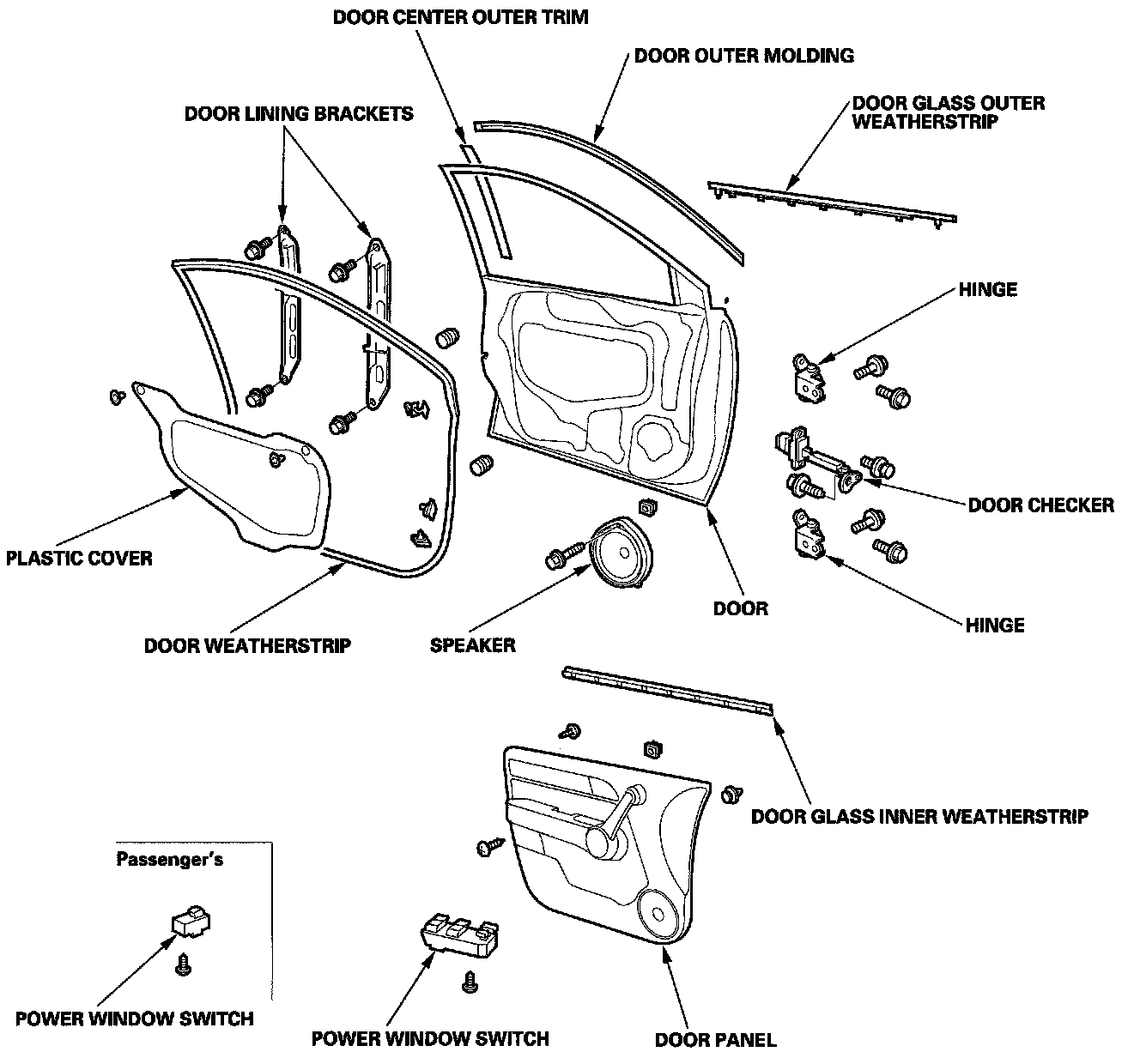

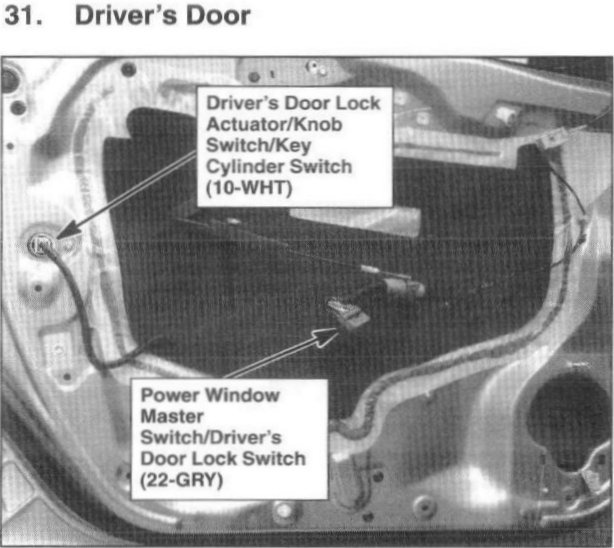

Front Door Component Location Index:

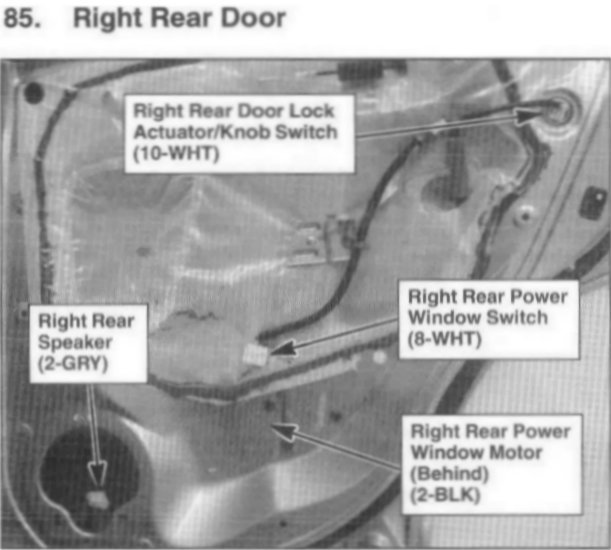

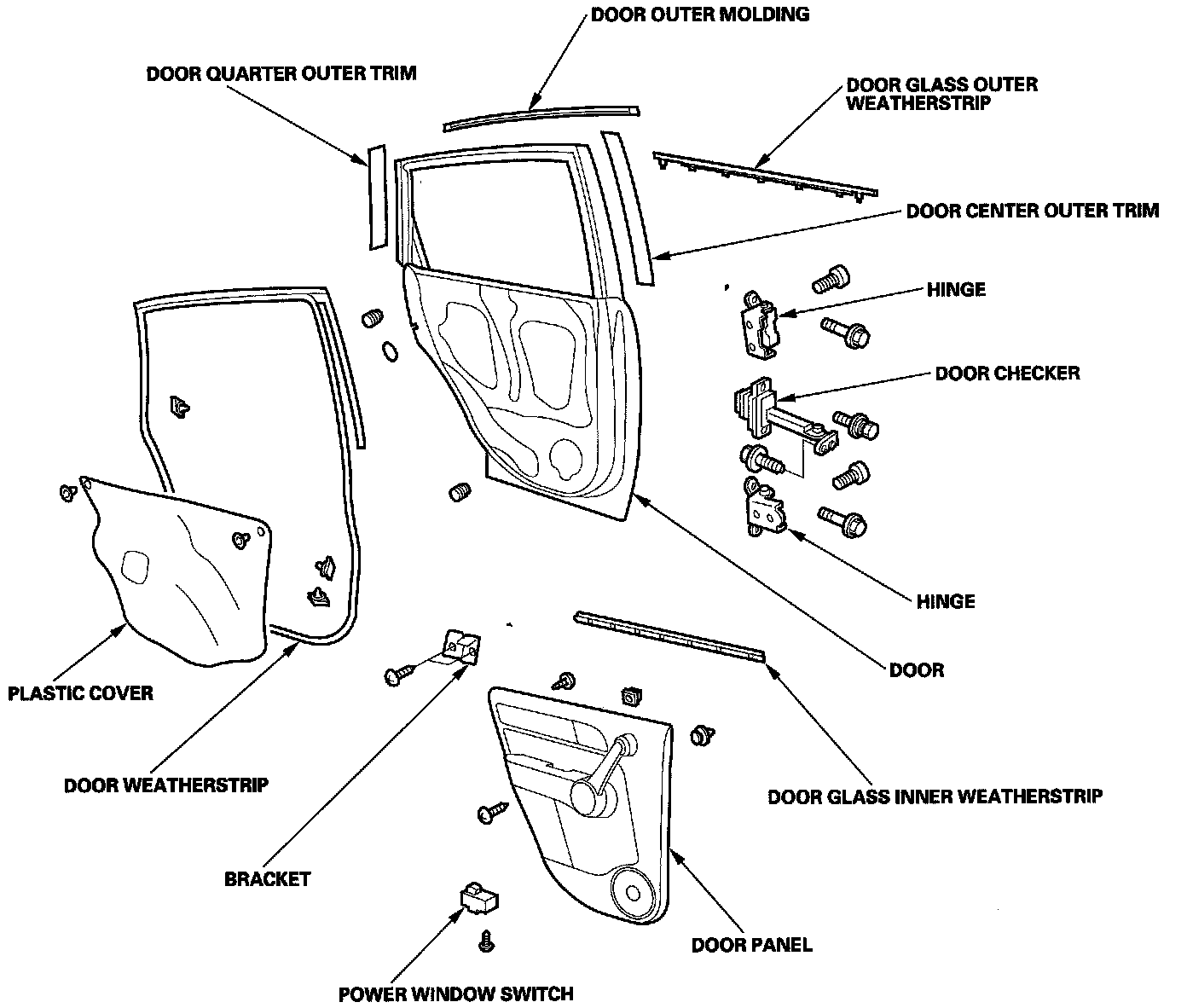

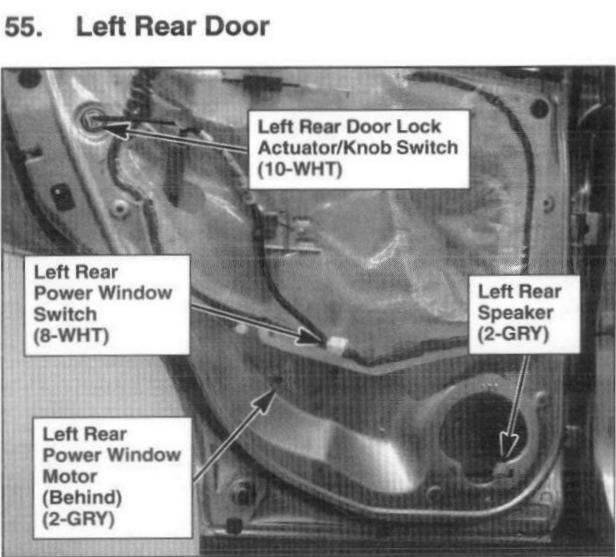

Rear Door Component Location Index:



Power Windows Component Location Index:

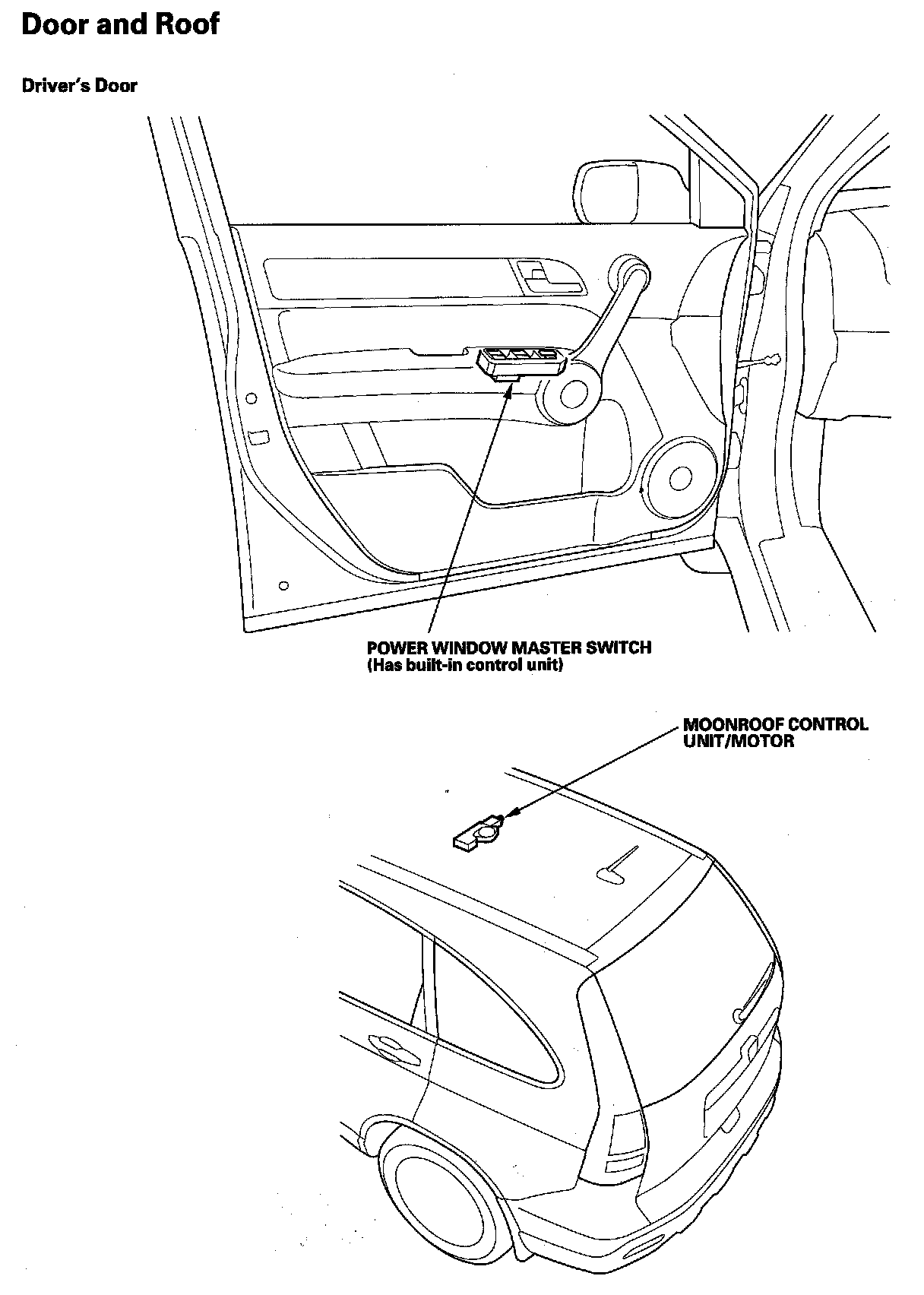

Relay And Control Unit Locations Door And Roof:
