Home >> Honda >> 2007 >> Accord V6-3.0L >> Repair and Diagnosis >> Locations >> Harness Locations >> Throttle Actuator Control Module Subharness

Throttle Actuator Control Module Subharness

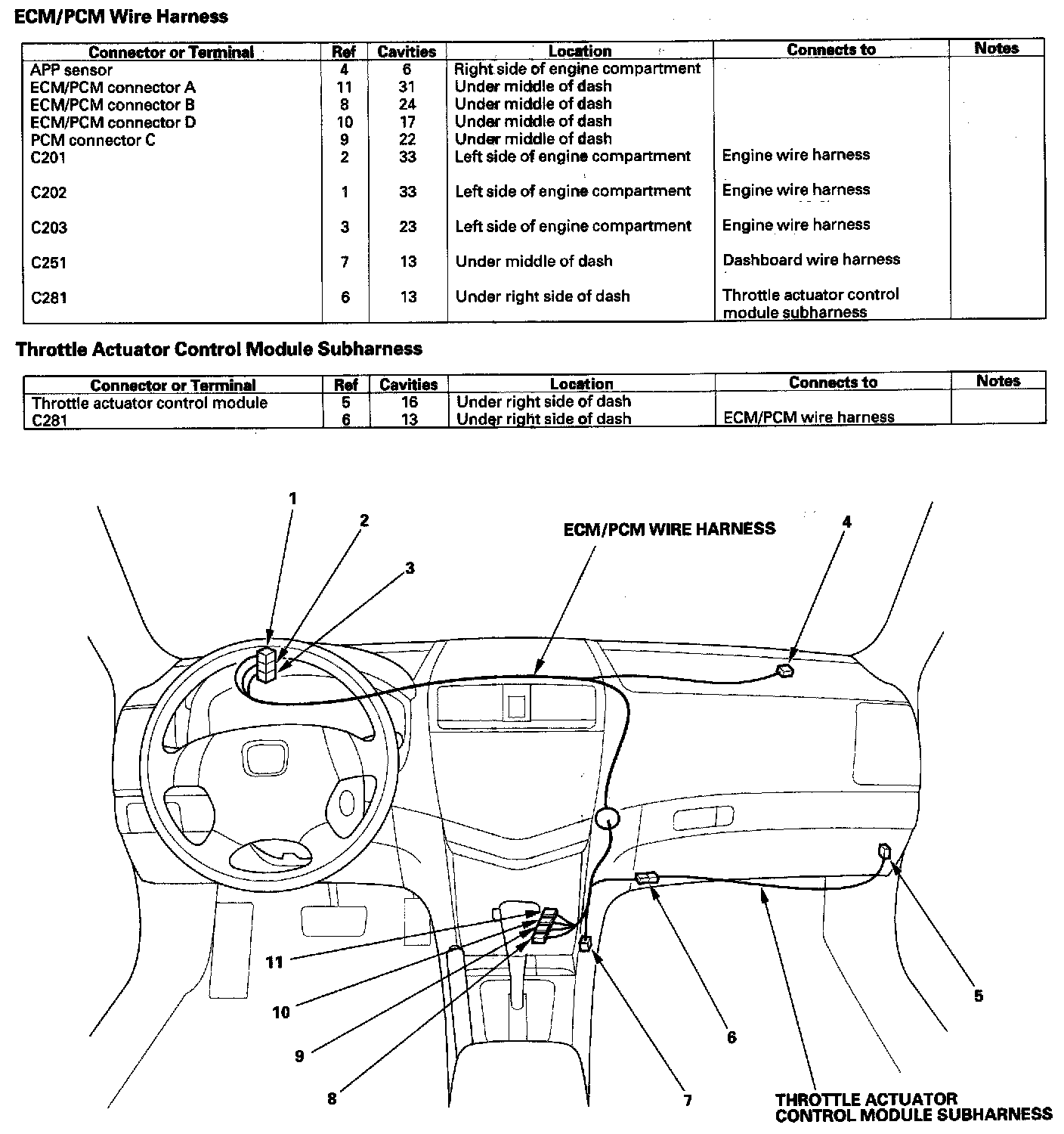

ECM/PCM Wire Harness/Throttle Actuator Control Module Subharness:

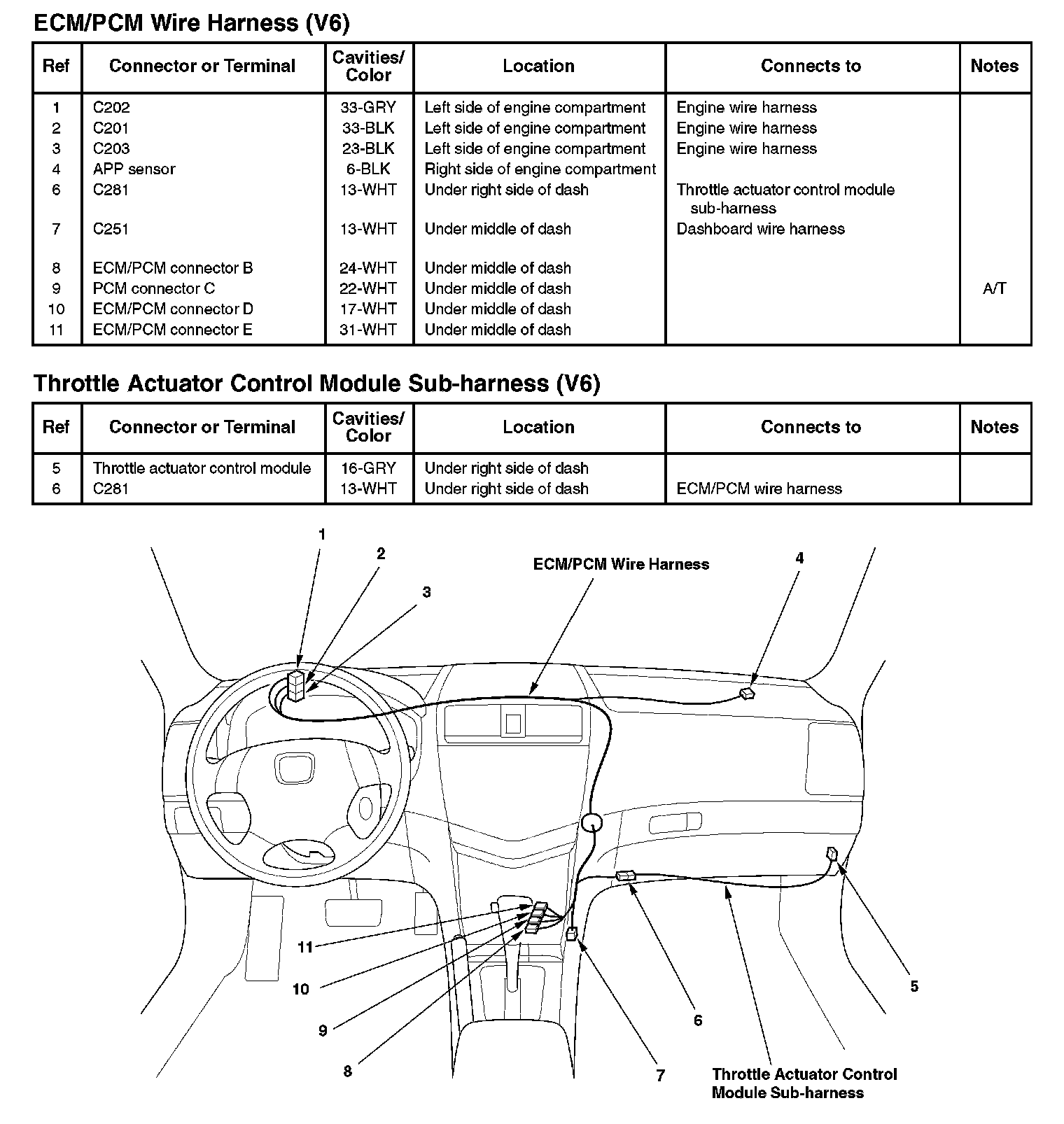

ECM/PCM Wire Harness (V6)/Throttle Actuator Control Module Sub-harness (V6):
