System Specifications

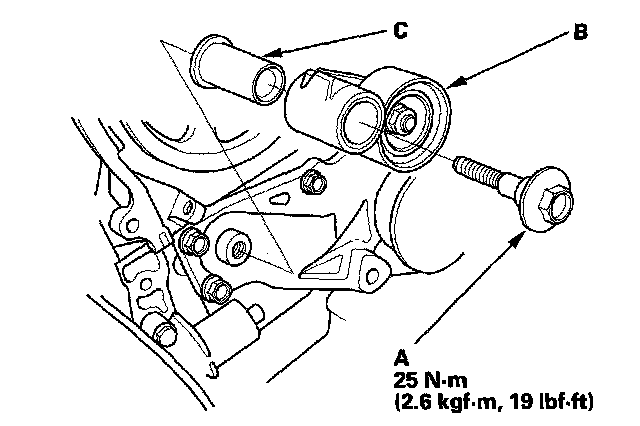

Timing Belt Adjuster






Crankshaft Pulley
For complete and accurate Crankshaft Pulley Torque data, please refer to Crankshaft Pulley Removal and Installation. Service and Repair

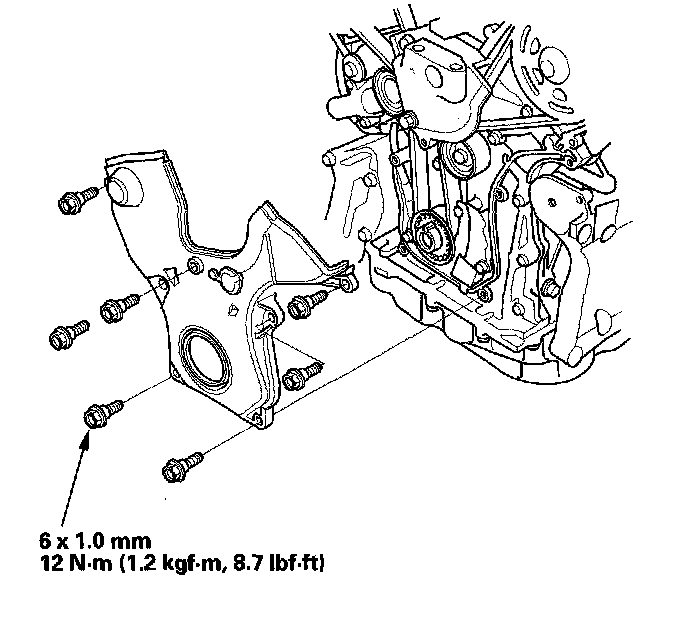

Lower Cover

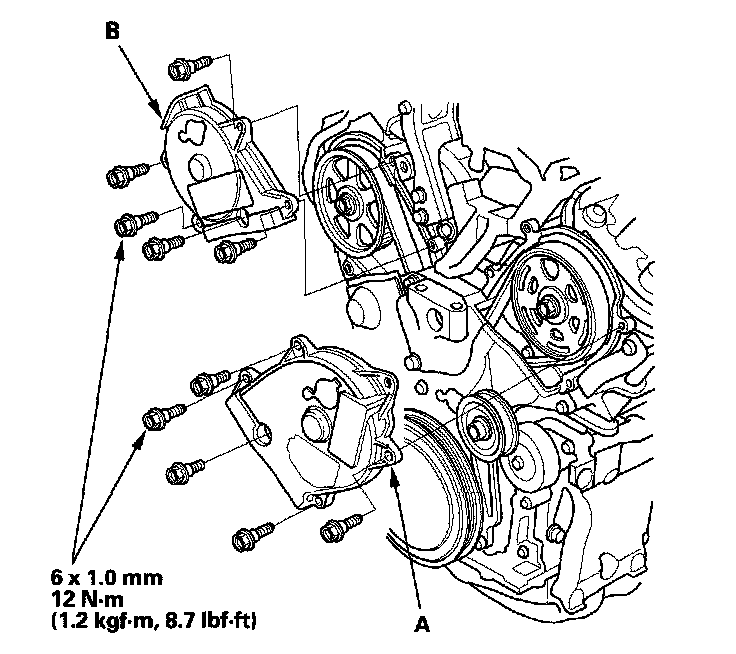

Front upper cover (A) and rear upper cover (B)
