Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

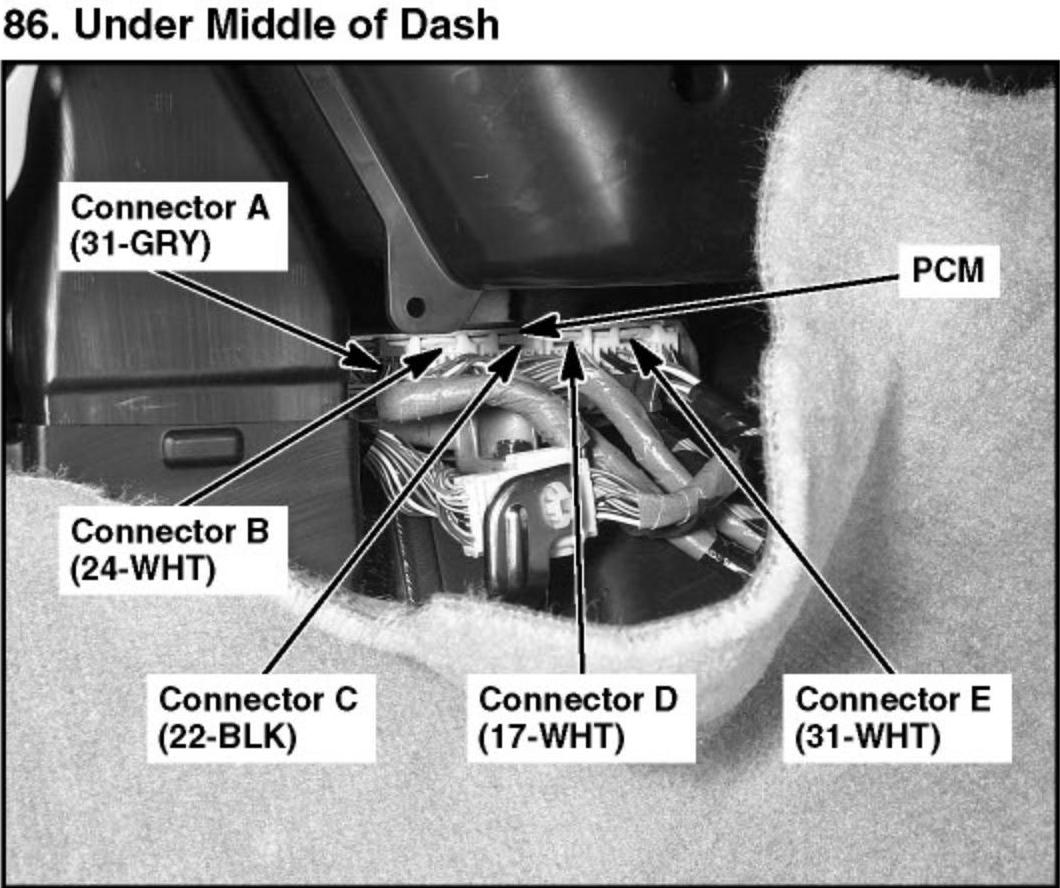

86. Under Middle of Dash:

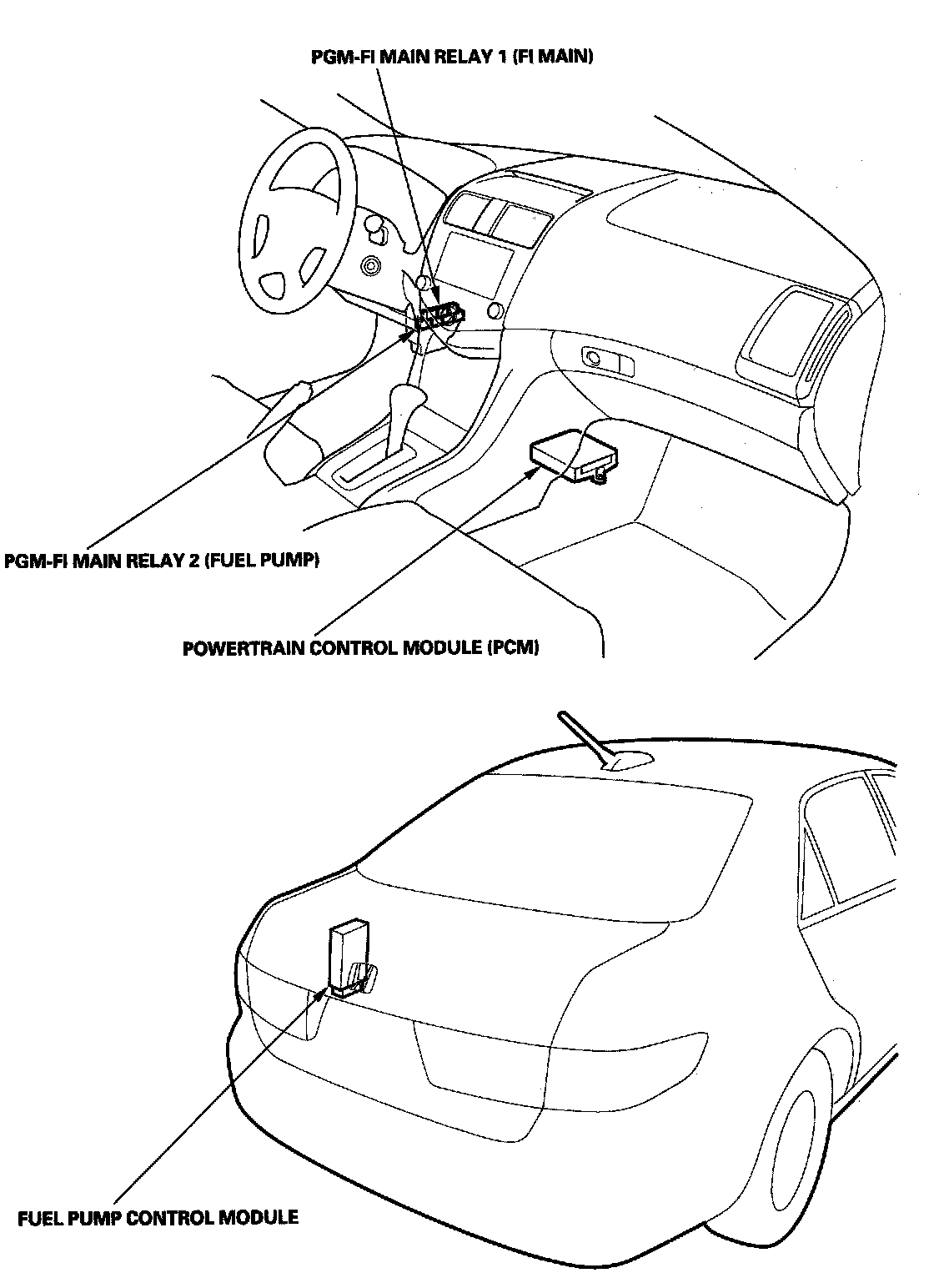

Fuel Supply System Component Location Index:

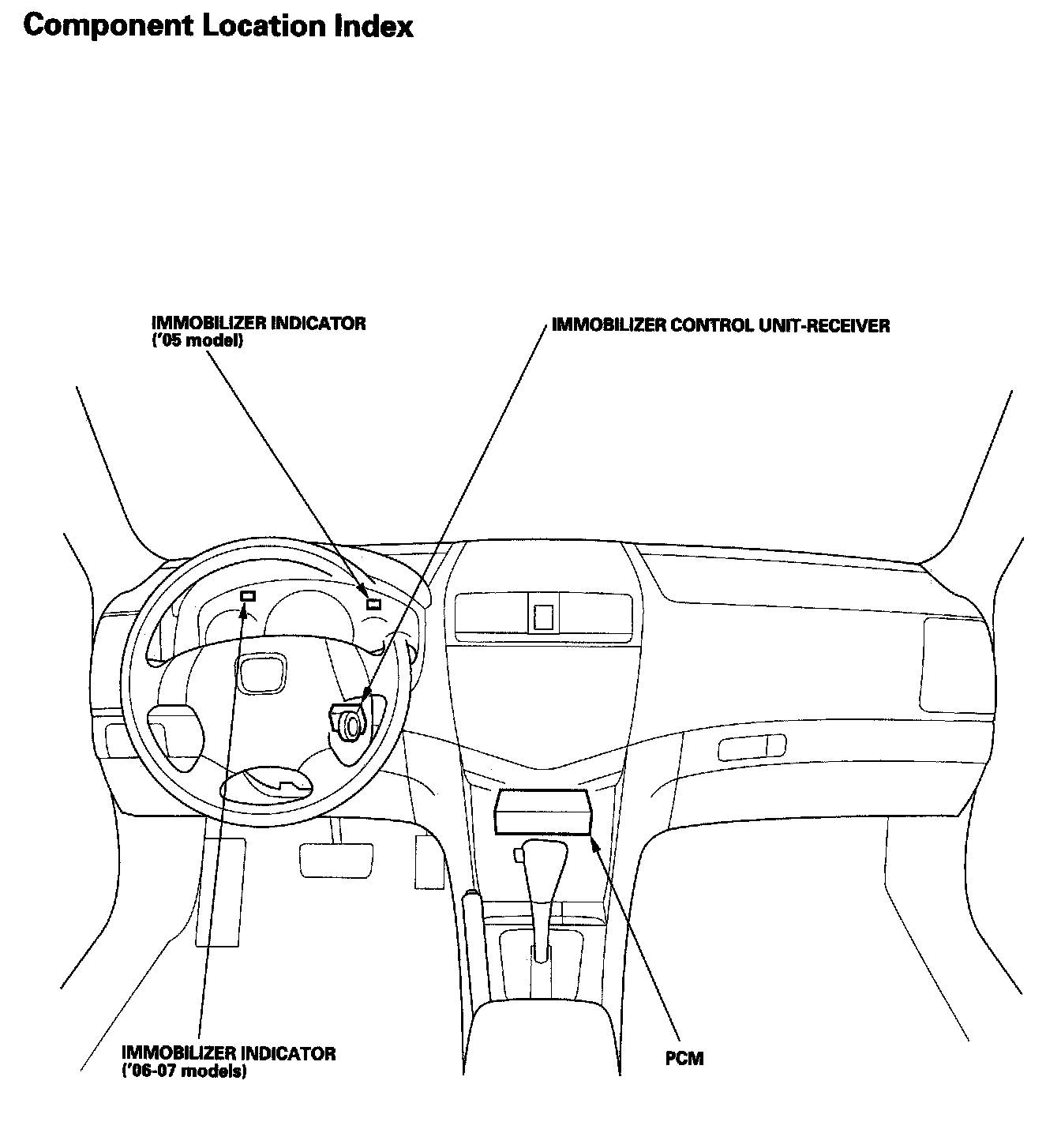

Immobilizer System Component Location Index:

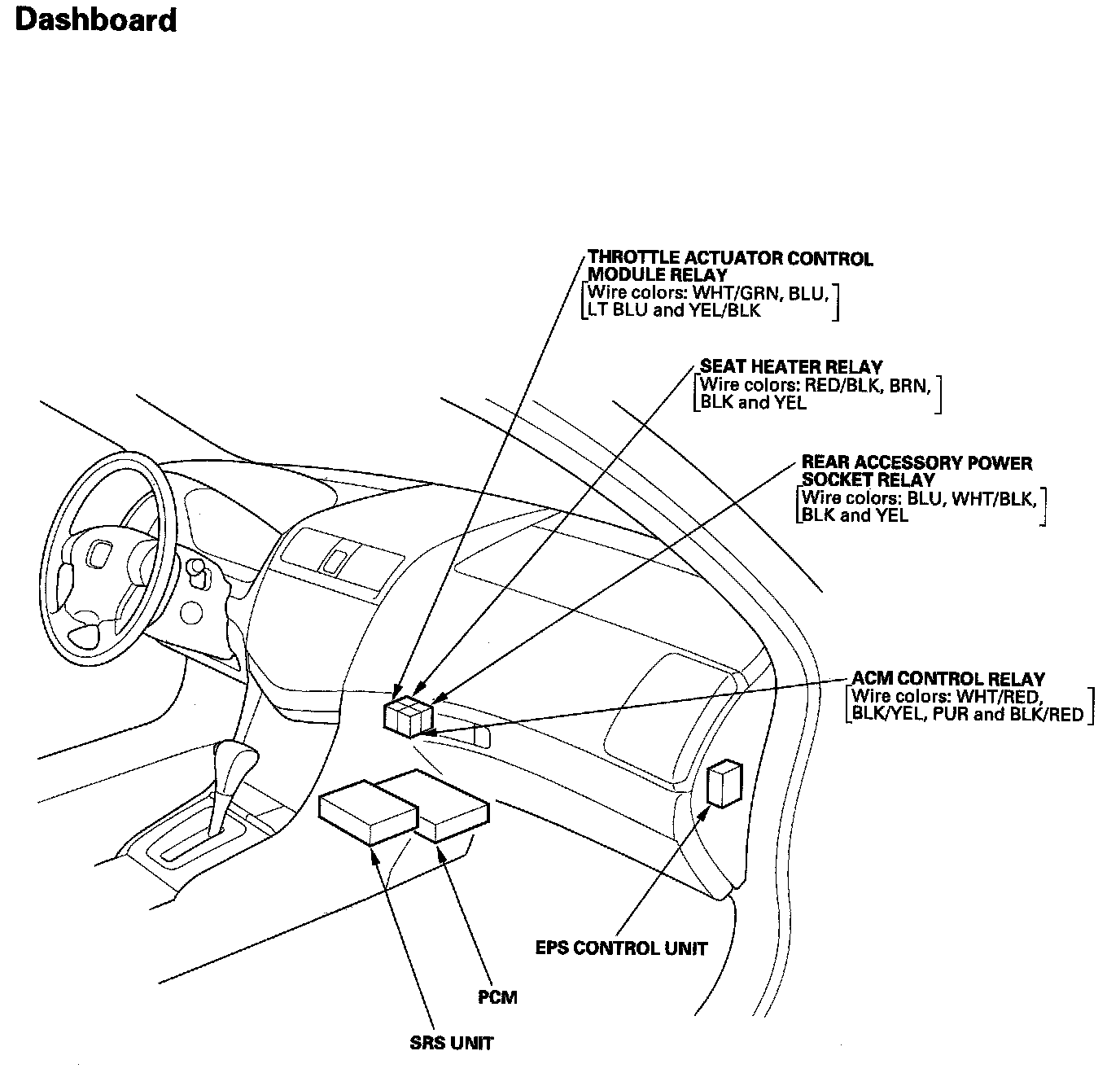

Relay And Control Unit Locations Dashboard:
