Engine Mount Control Unit: Service and Repair

Engine Mount Control Unit Replacement

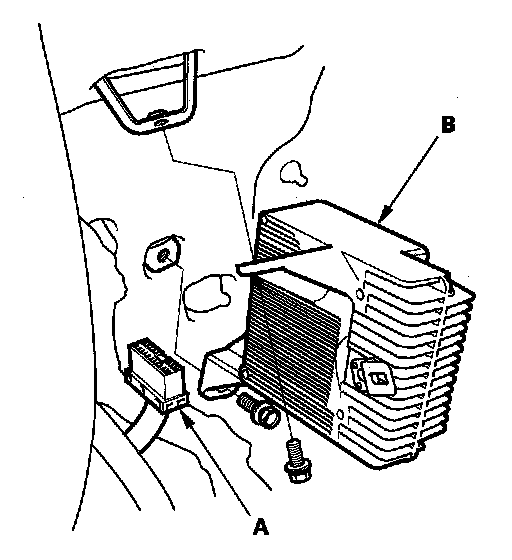

1. Disconnect the engine mount control unit 20P connector (A).
2. Remove the engine mount control unit (B).
3. Install the parts in the reverse order of removal.
