Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Engine >> Engine Mount Control Unit >> Locations

Engine Mount Control Unit: Locations

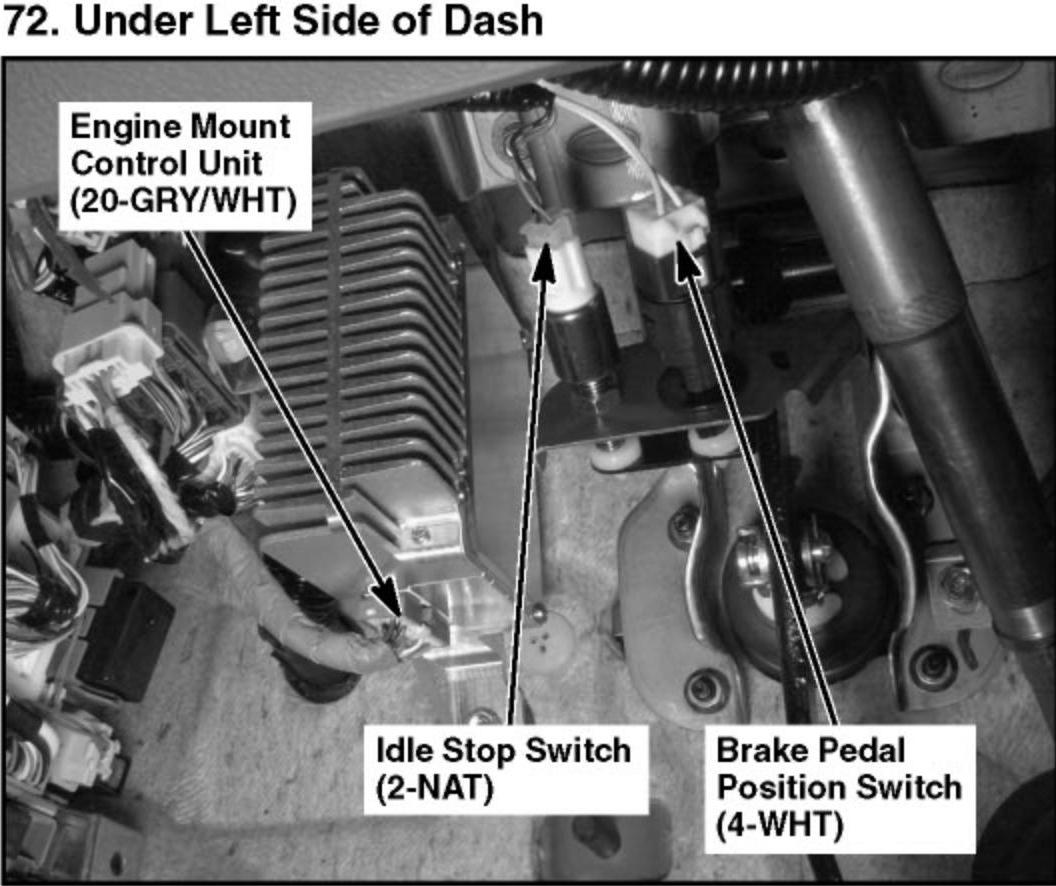

72. Under Left Side of Dash:

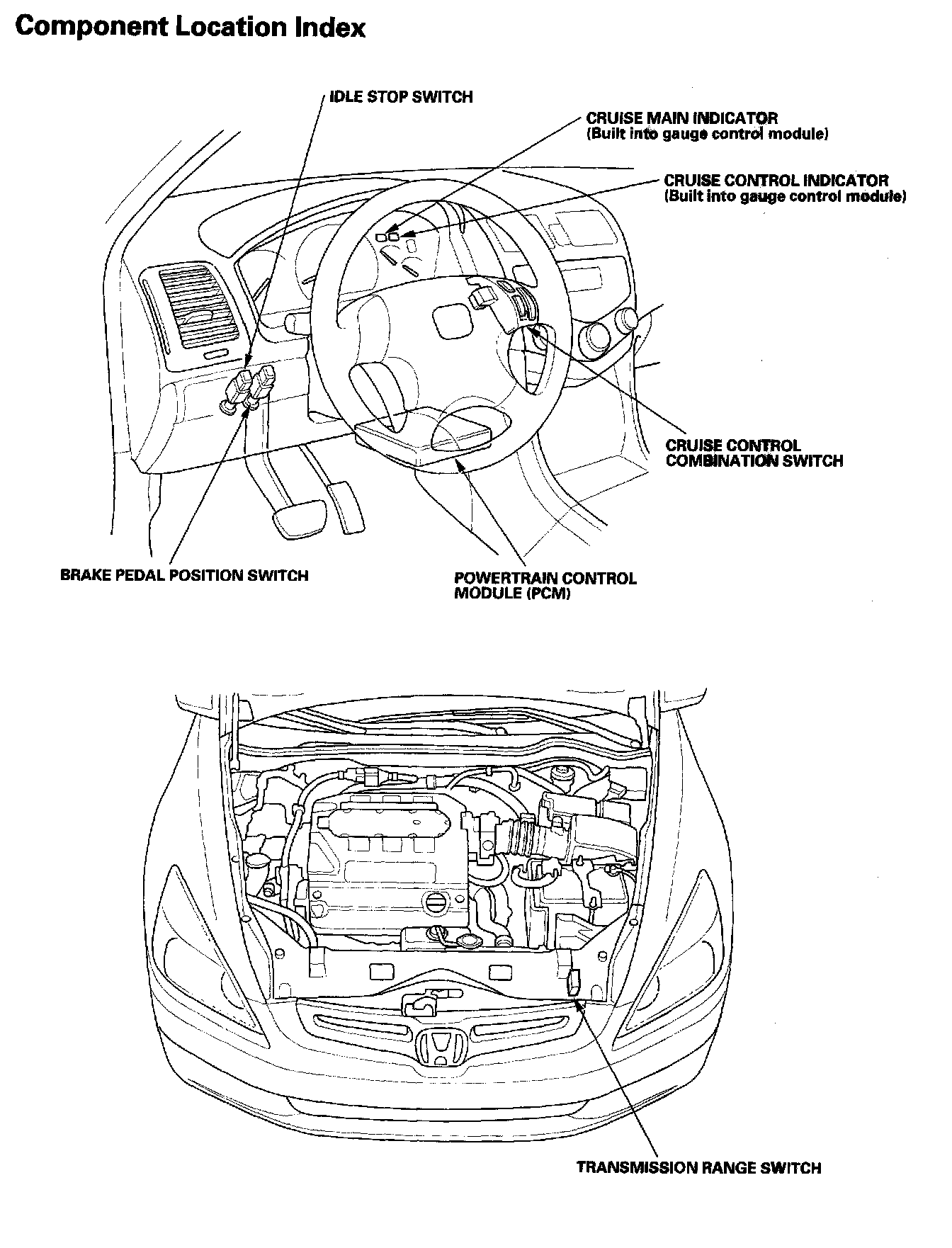

Cruise Control - Component Location Index:

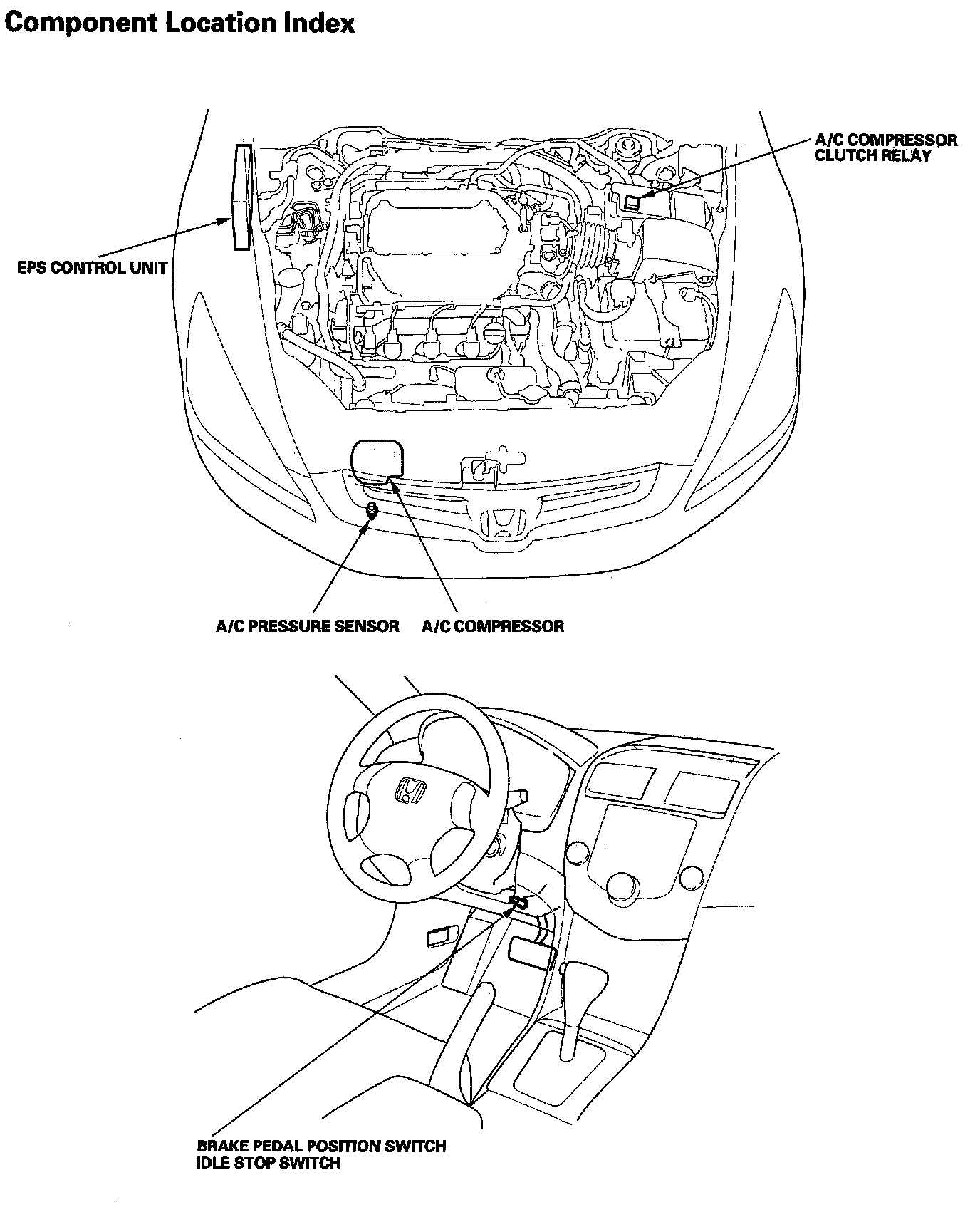

Idle Control System Component Location Index:

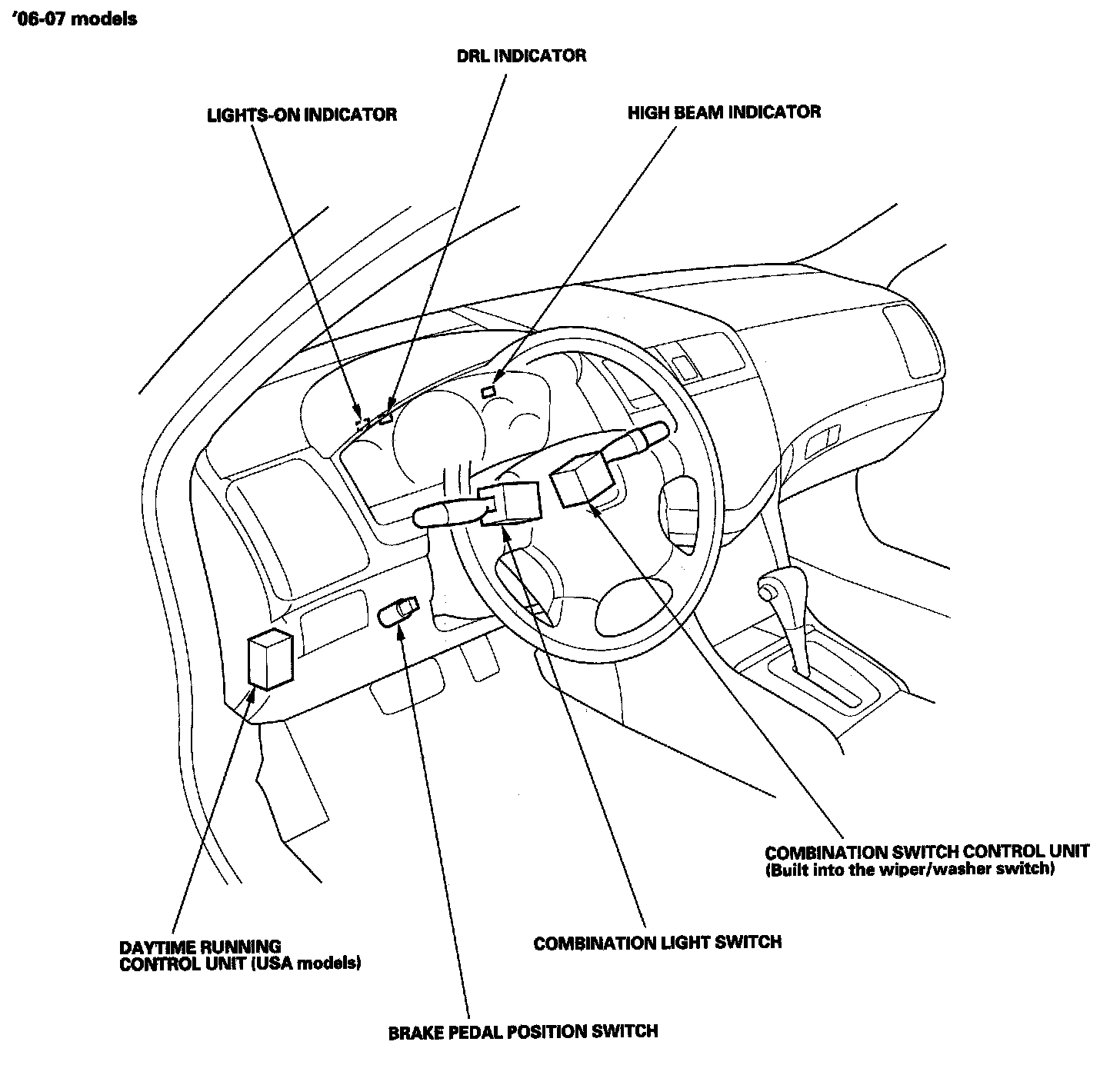

Exterior Lights Component Location Index:
