Information Bus: Locations

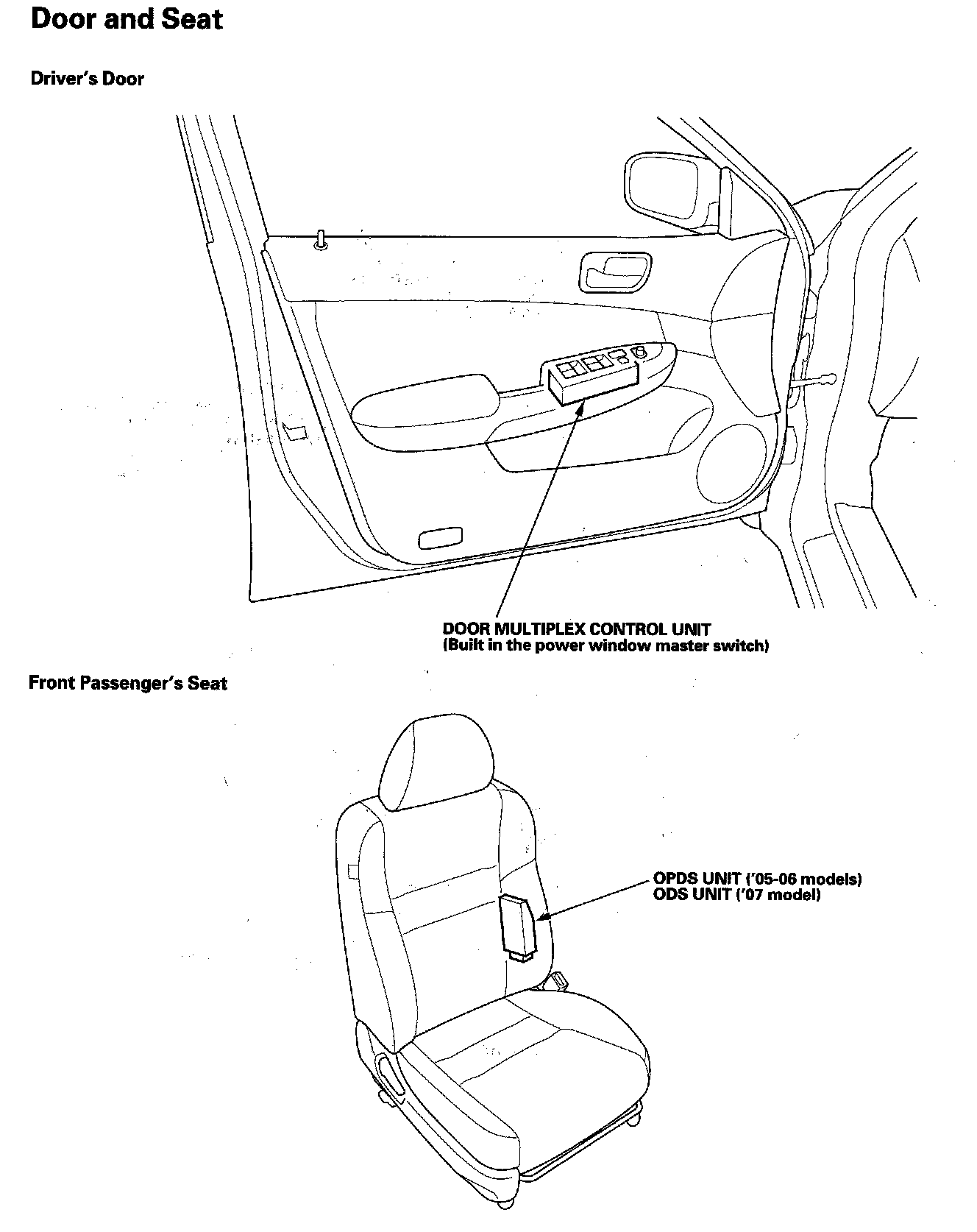

Relay And Control Unit Locations Door And Seat:

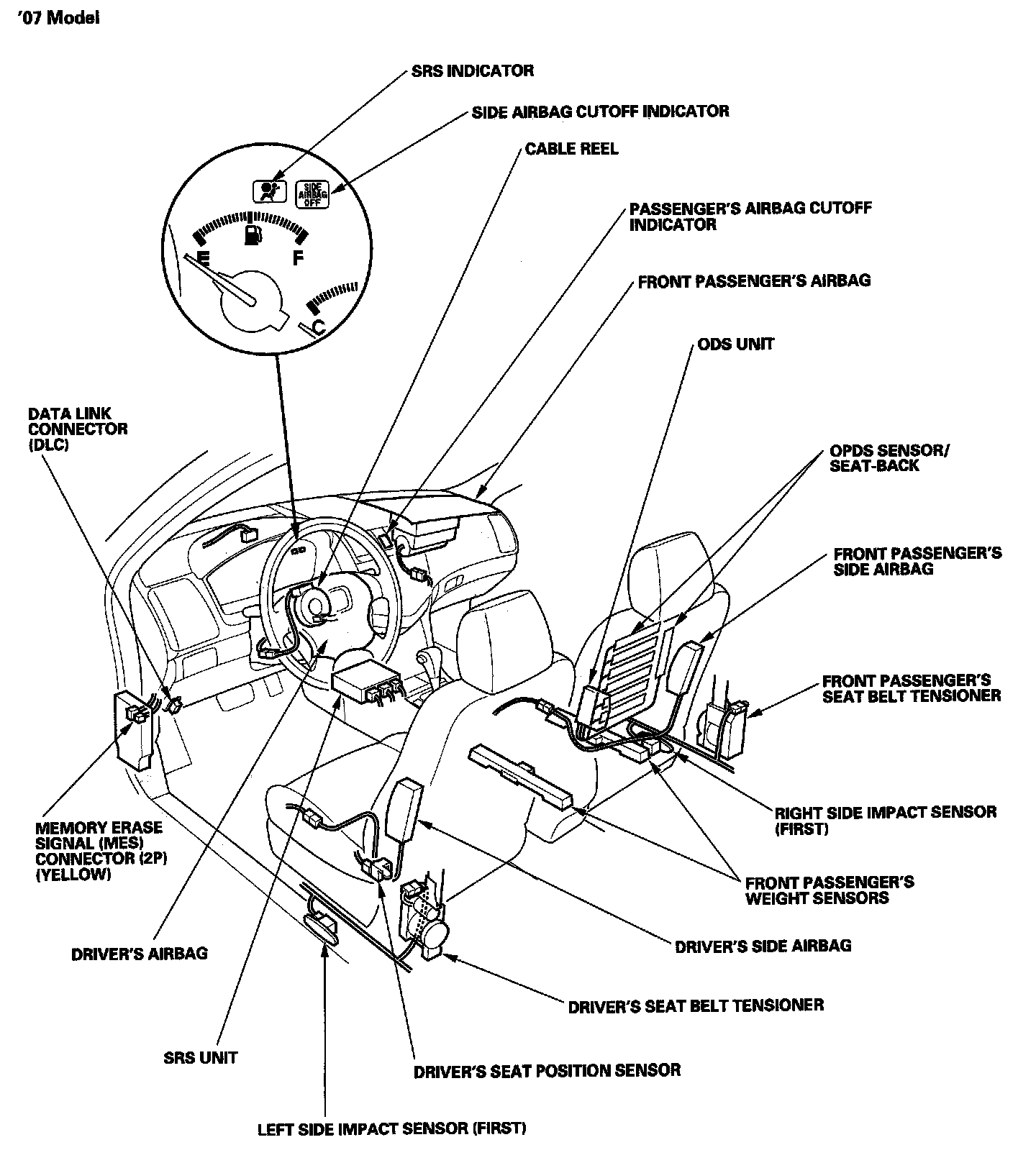

SRS Component Location Index:
