Electric Load Sensor: Locations

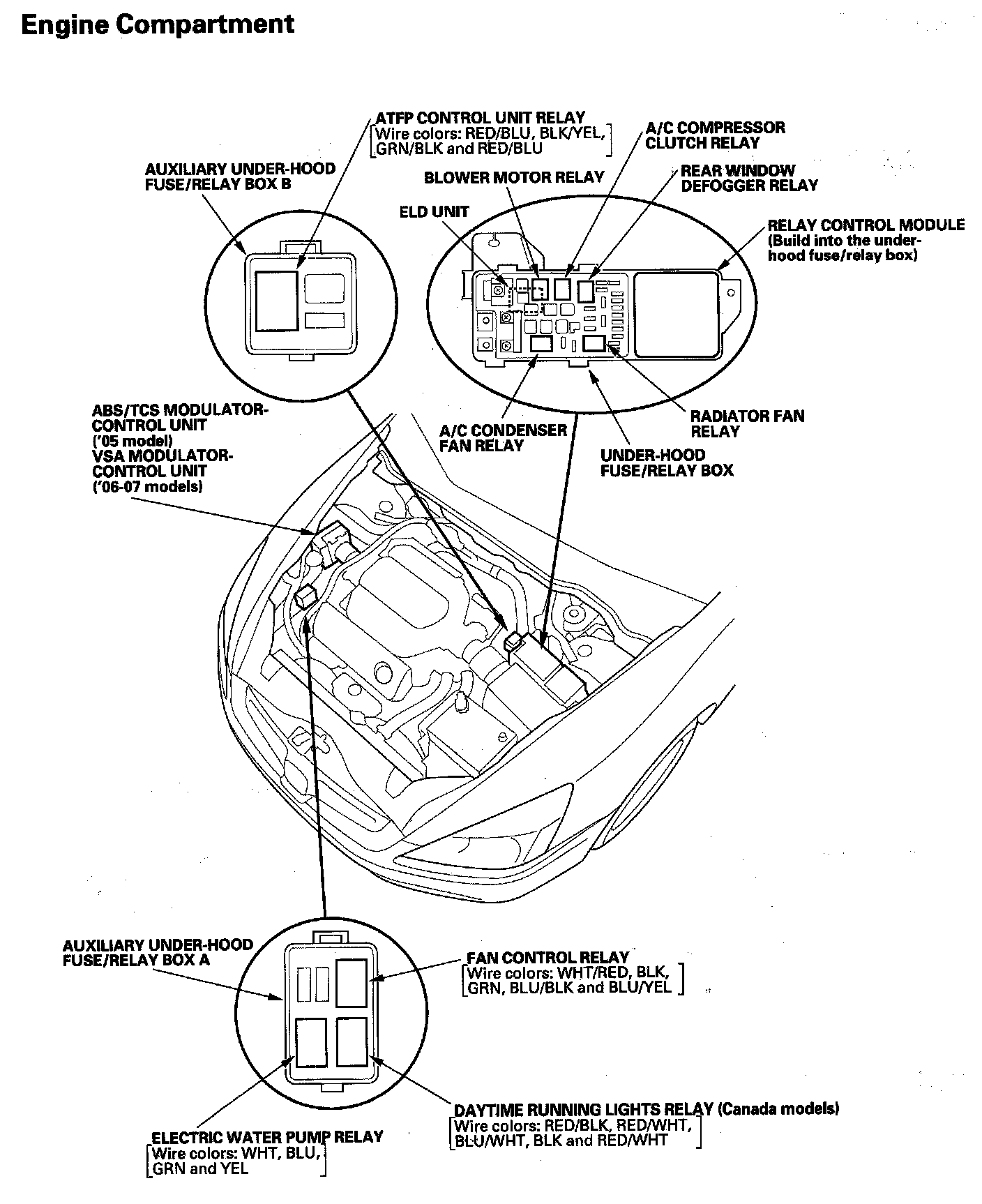

Relay And Control Unit Locations Engine Compartment:



Relay And Control Unit Locations Dashboard:

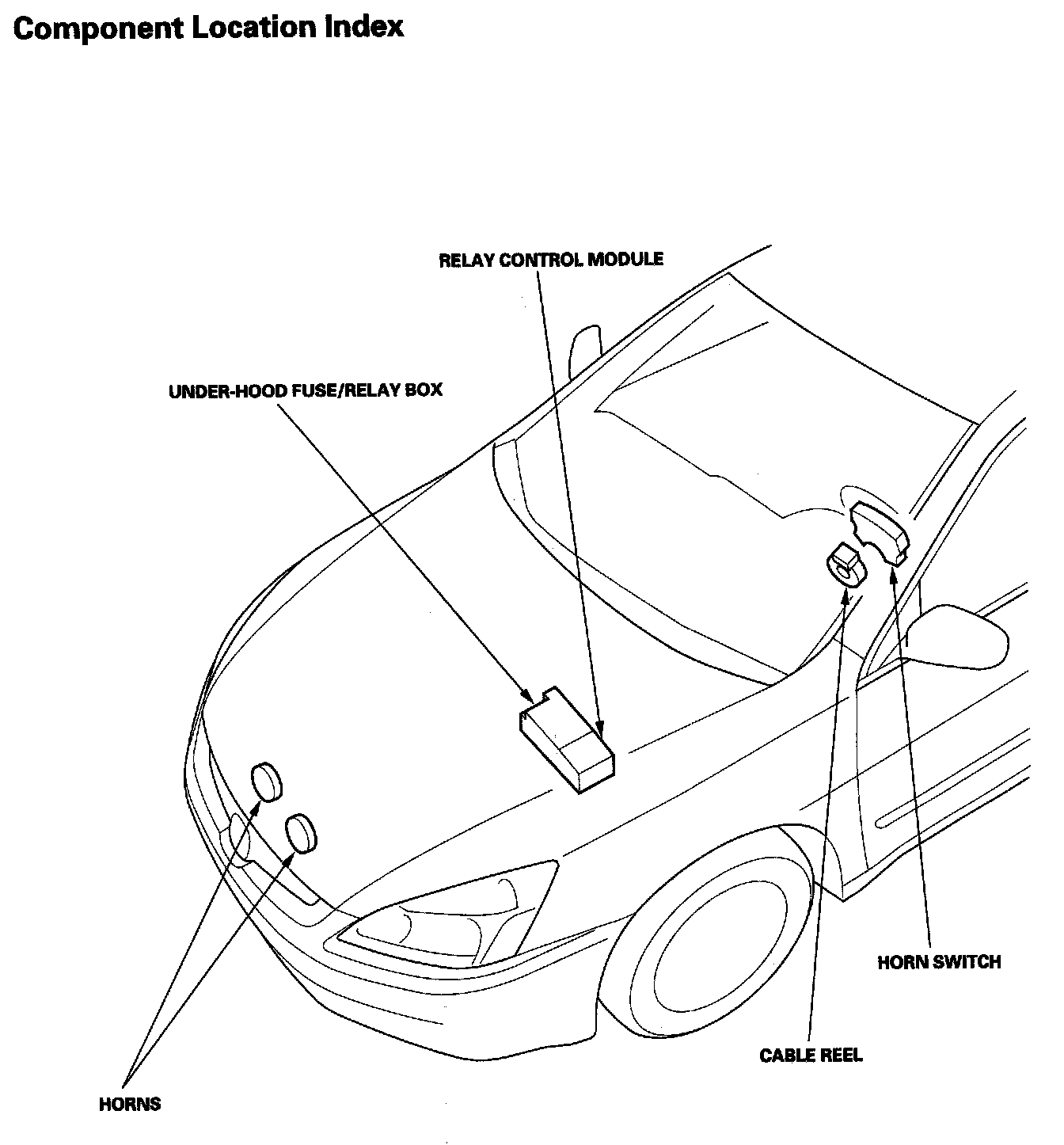

Horns Component Location Index:

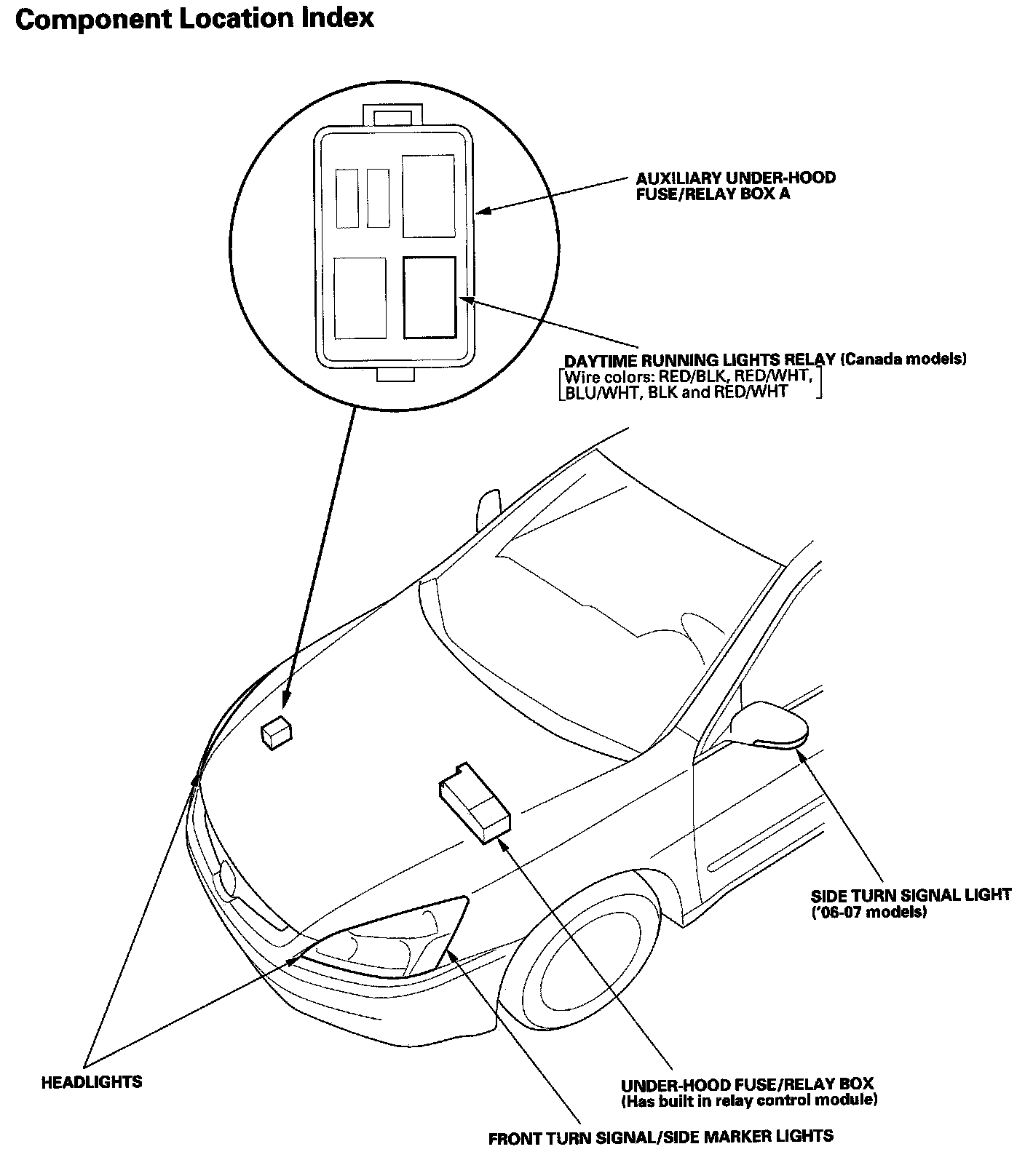

Exterior Lights Component Location Index:

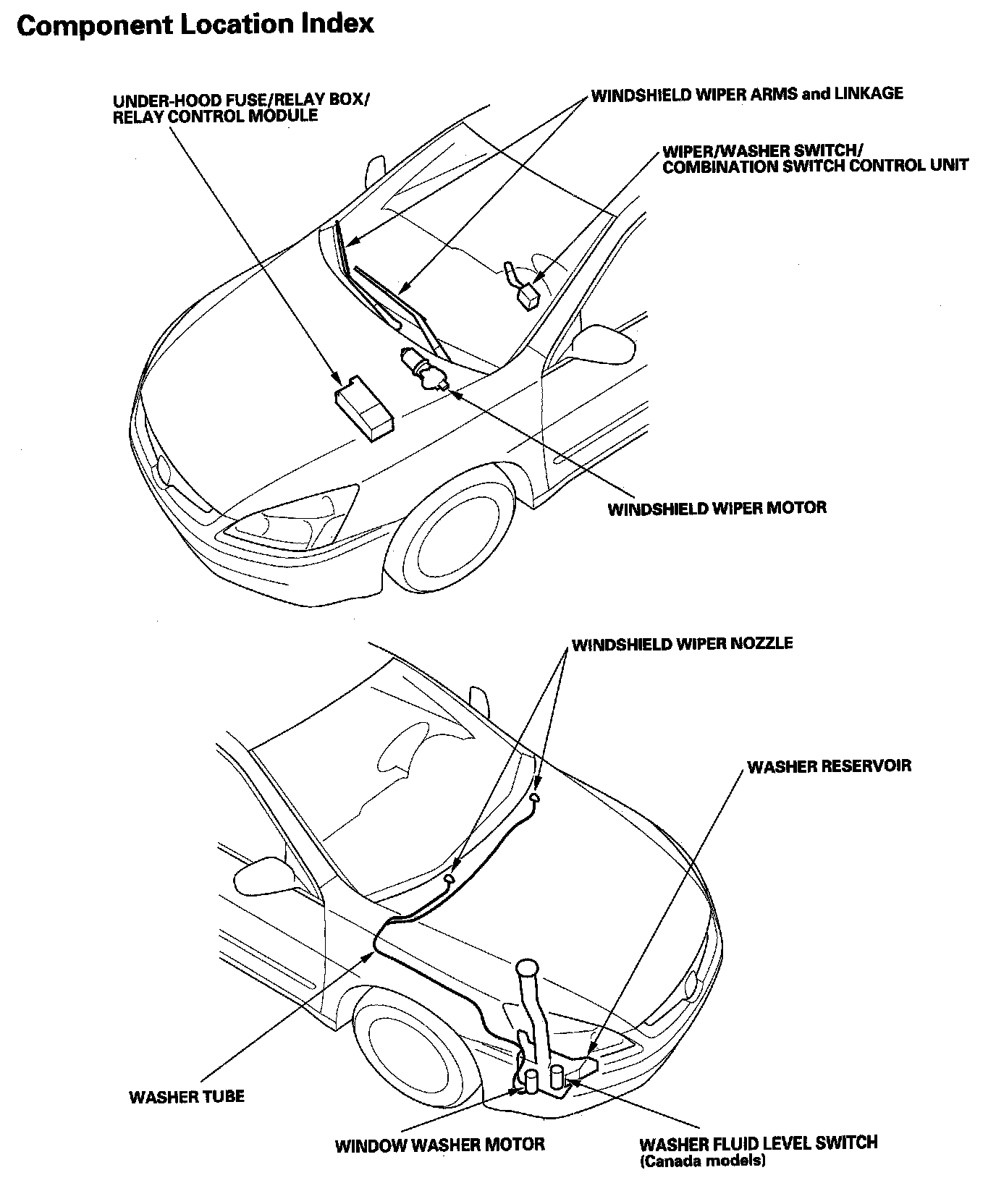

Wipers/Washers Component Location Index:



Rear Window Defogger Component Location Index:



13. Left Side of Engine Compartment:

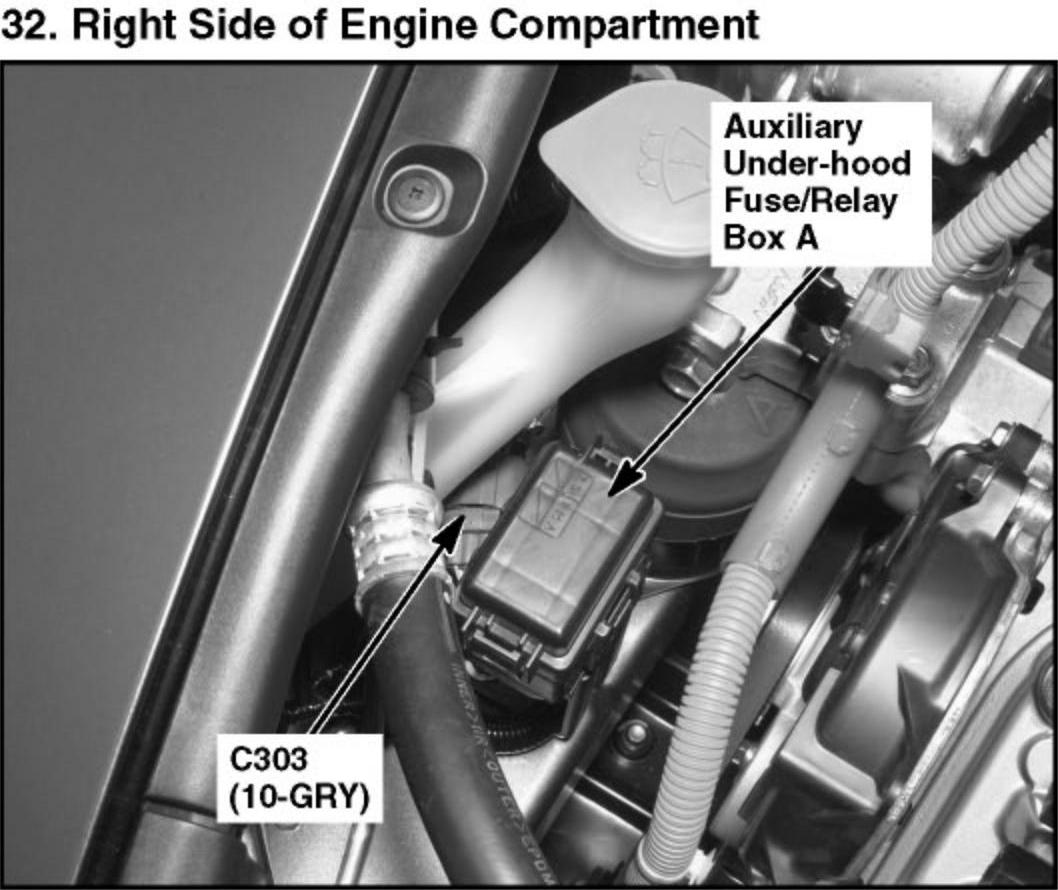

32. Right Side of Engine Compartment:
