Air Flow Meter/Sensor: Service and Repair

MAF Sensor/IAT Sensor 1 Replacement

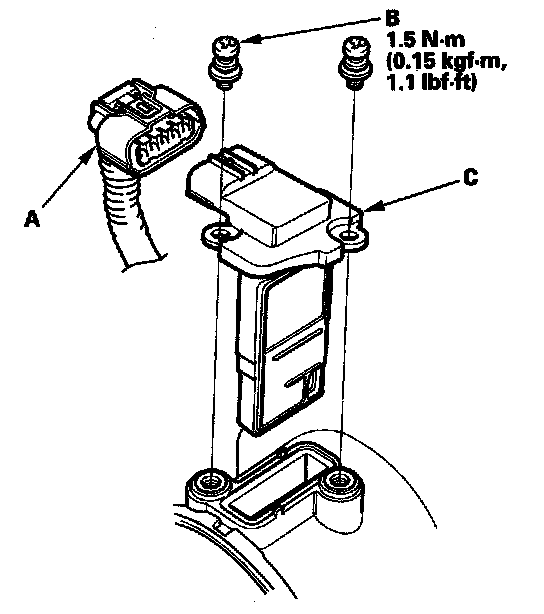

1. Disconnect the MAF sensor/IAT sensor 1 connector (A).
2. Remove the screws (B).
3. Remove the MAF sensor/IAT sensor 1 (C).
4. Install the parts in the reverse order of removal.
