Intelligent Power Unit Module (IPU)/IPU Module Fan Replacement

IPU Module Fan Removal/Installation

1. Remove the spare tire lid and the trunk front trim panel.
2. Remove the IPU module air duct.

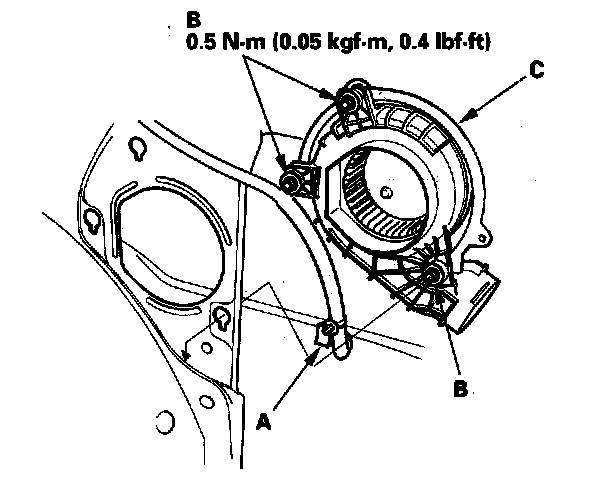

3. Disconnect the IPU module fan connector (A).
4. Remove the bolts (B).
5. Remove the IPU module fan (C).
6. Install the parts in the reverse order of removal.
