Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Power Control System >> Drive Motor Control Module >> Testing and Inspection >> Component Tests and General Diagnostics >> MCM Inputs and Outputs

MCM Inputs and Outputs

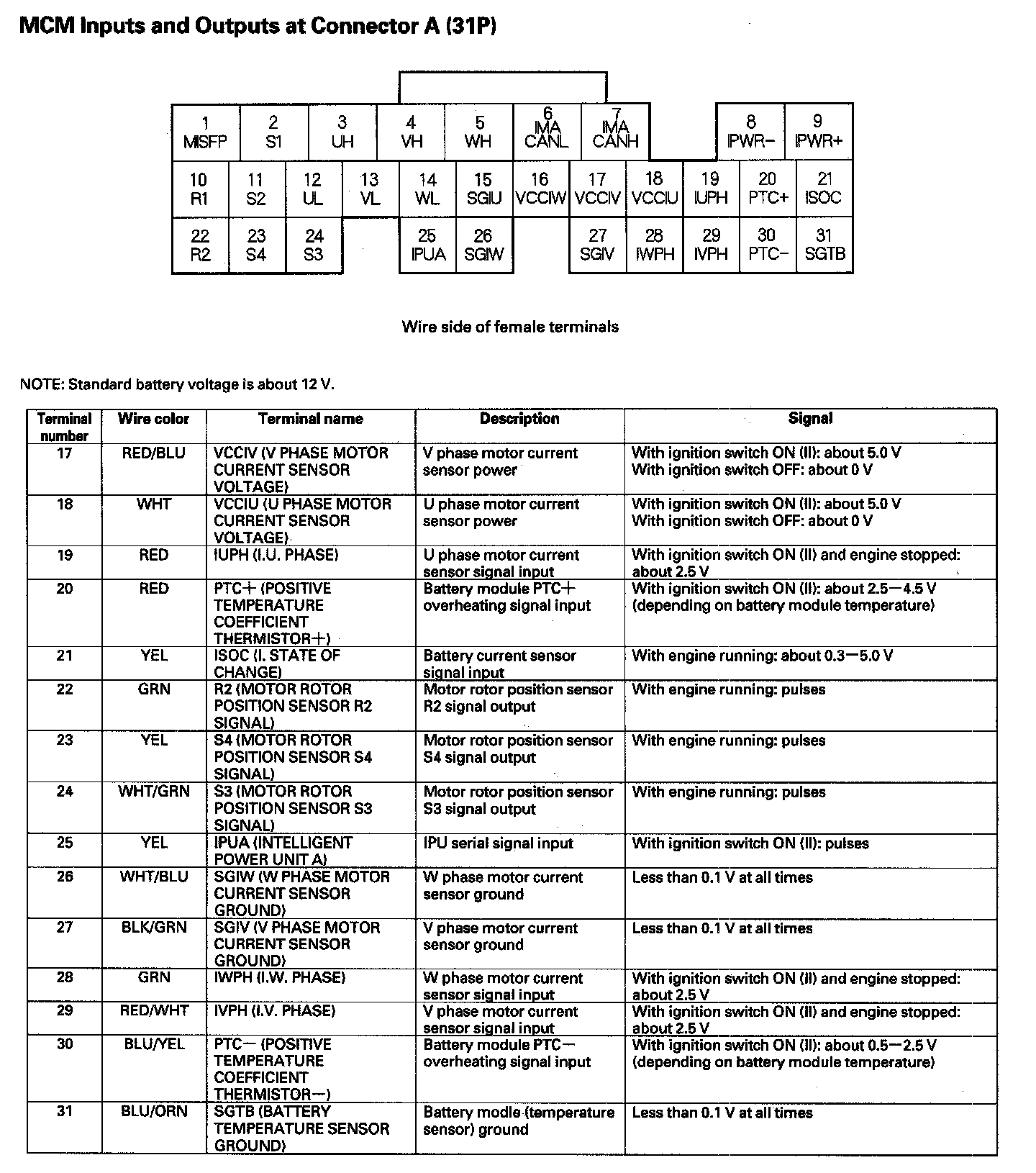

MCM Inputs And Outputs At Connector A (31P) Part 1:




MCM Inputs And Outputs At Connector A (31P)

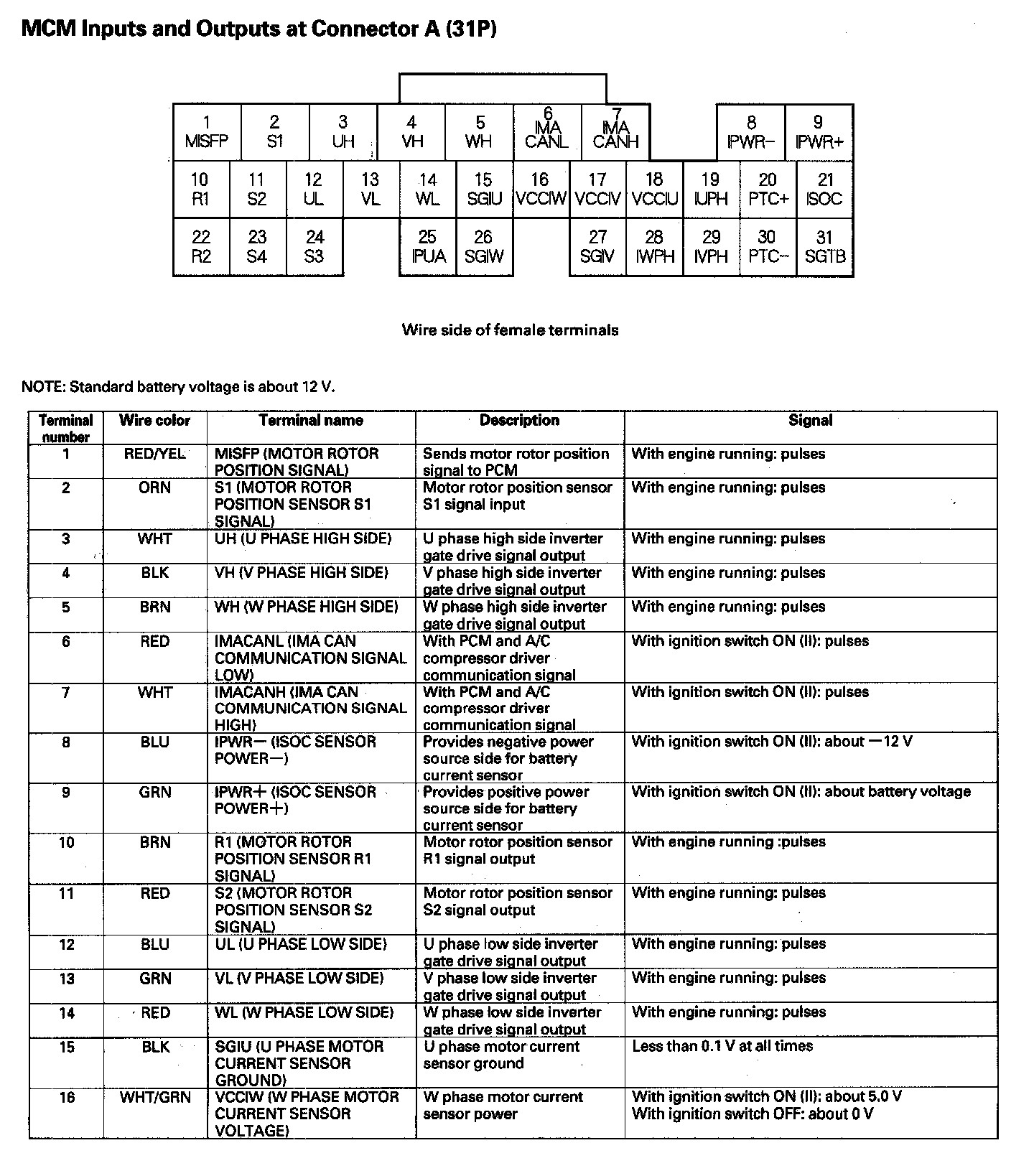

MCM Inputs And Outputs At Connector A (31P) Part 2:




MCM Inputs And Outputs At Connector A (31P)

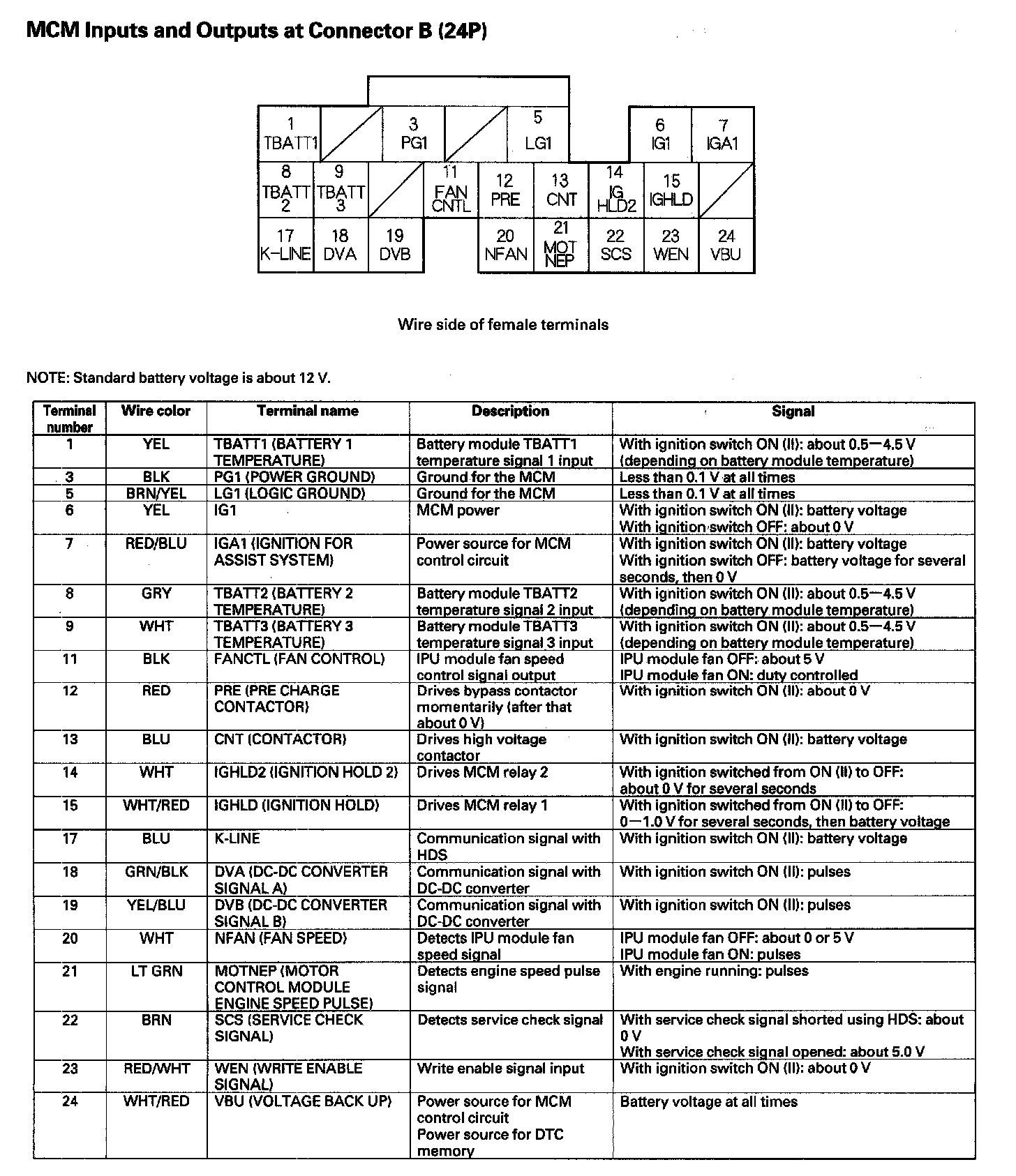

MCM Inputs And Outputs At Connector B (24P):




MCM Inputs And Outputs At Connector B (24P)

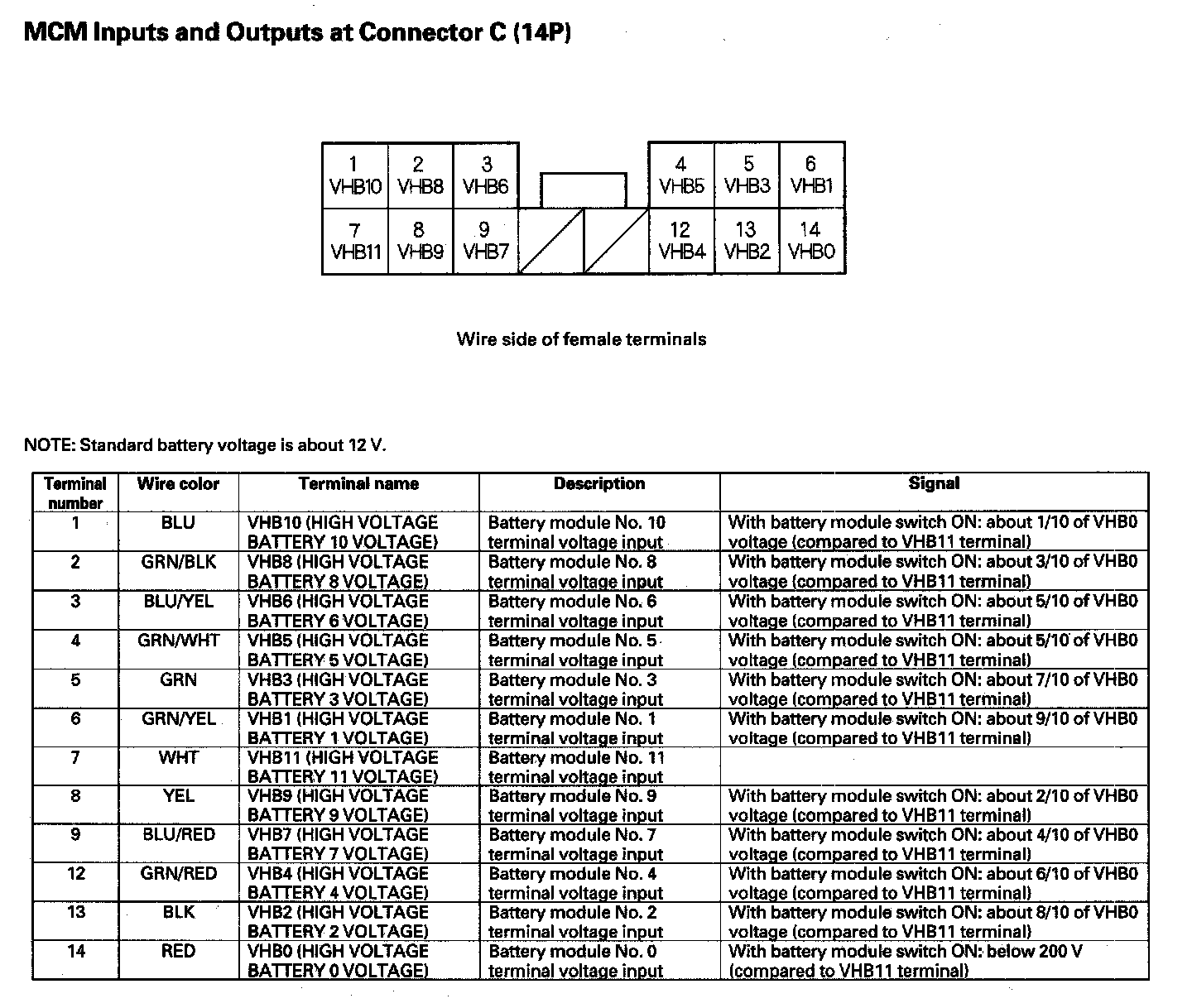

MCM Inputs And Outputs At Connector A (14P):




MCM Inputs And Outputs At Connector A (14P)
