Audio-HVAC Subdisplay Unit Replacement

Audio-HVAC Subdisplay Unit Replacement

With Navigation

1. Remove the upper panel.

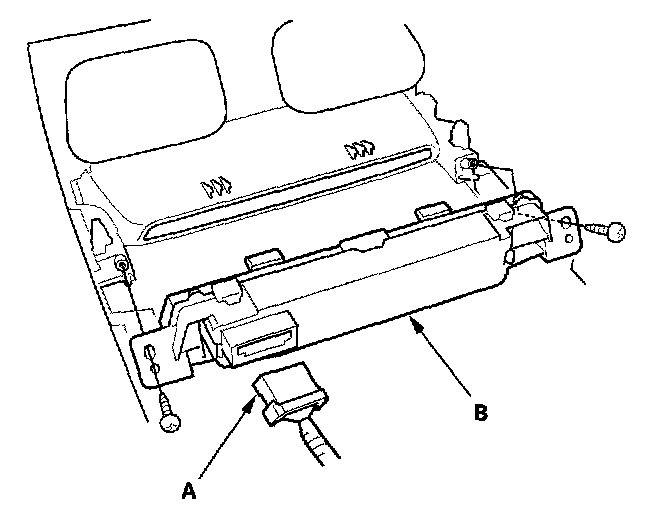

2. Remove the two mounting screws.




3. Disconnect the 10P connector (A) from the audio-HVAC subdisplay unit (B).
4. Install in the reverse order of removal.
