Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Voice Activation System >> Voice Activation Module

Voice Activation Module

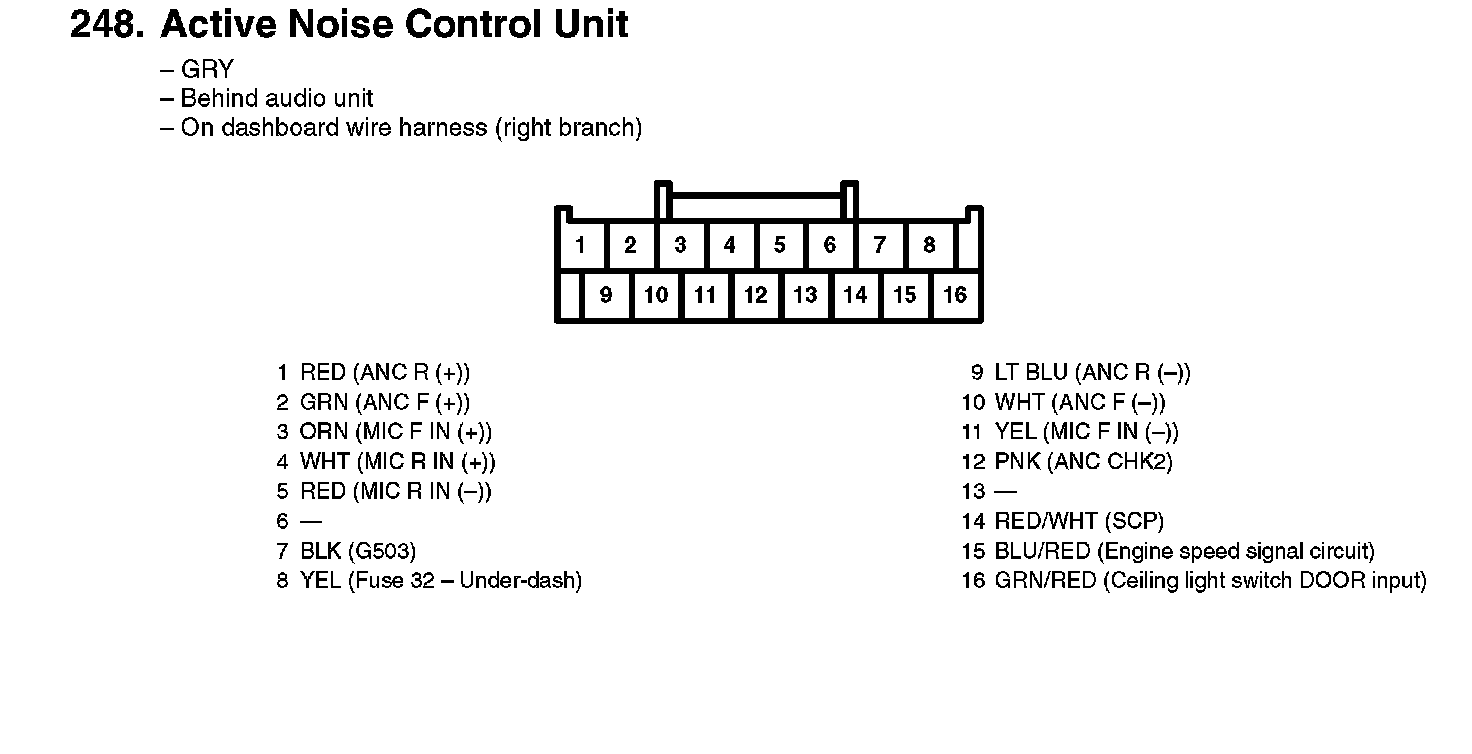

248. Active Noise Control Unit:
