Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Module

Traction Control Module

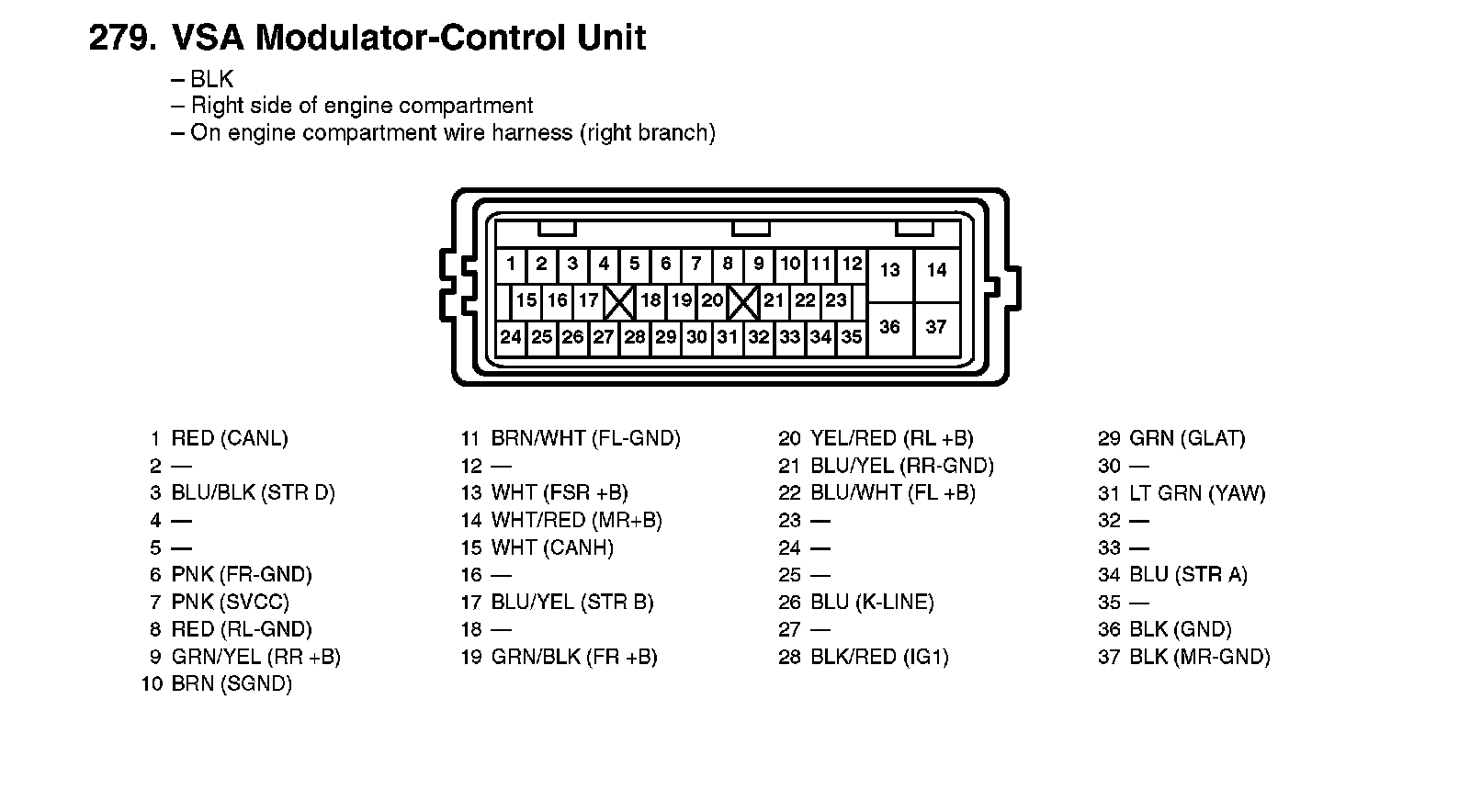

279. VSA Modulator-Control Unit:
