Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> Navigation Display

Navigation Display

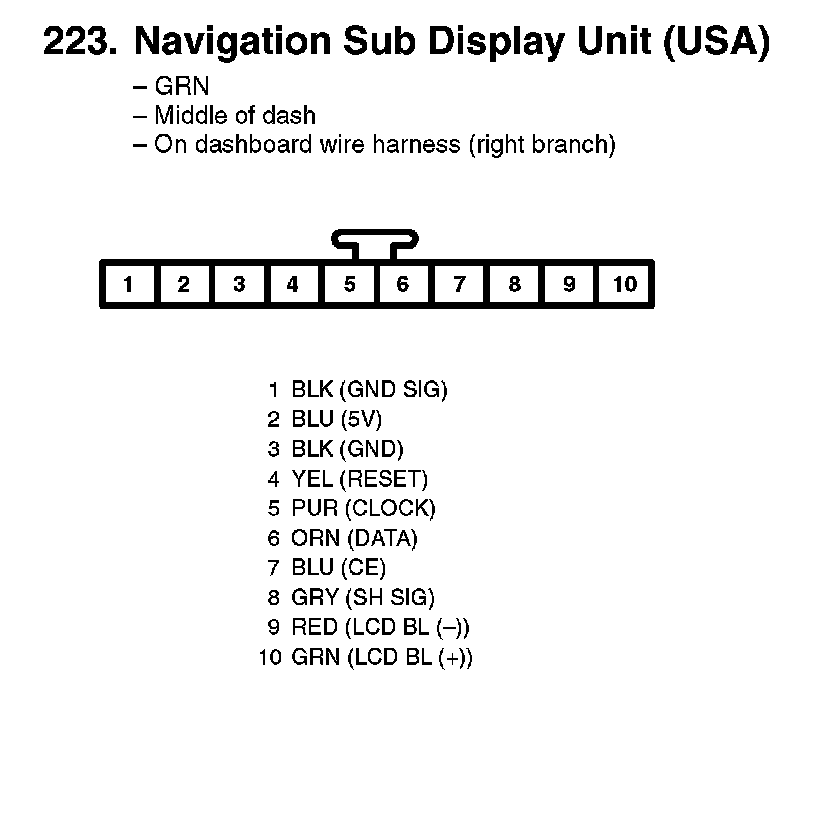

223. Navigation Sub Display Unit (USA):

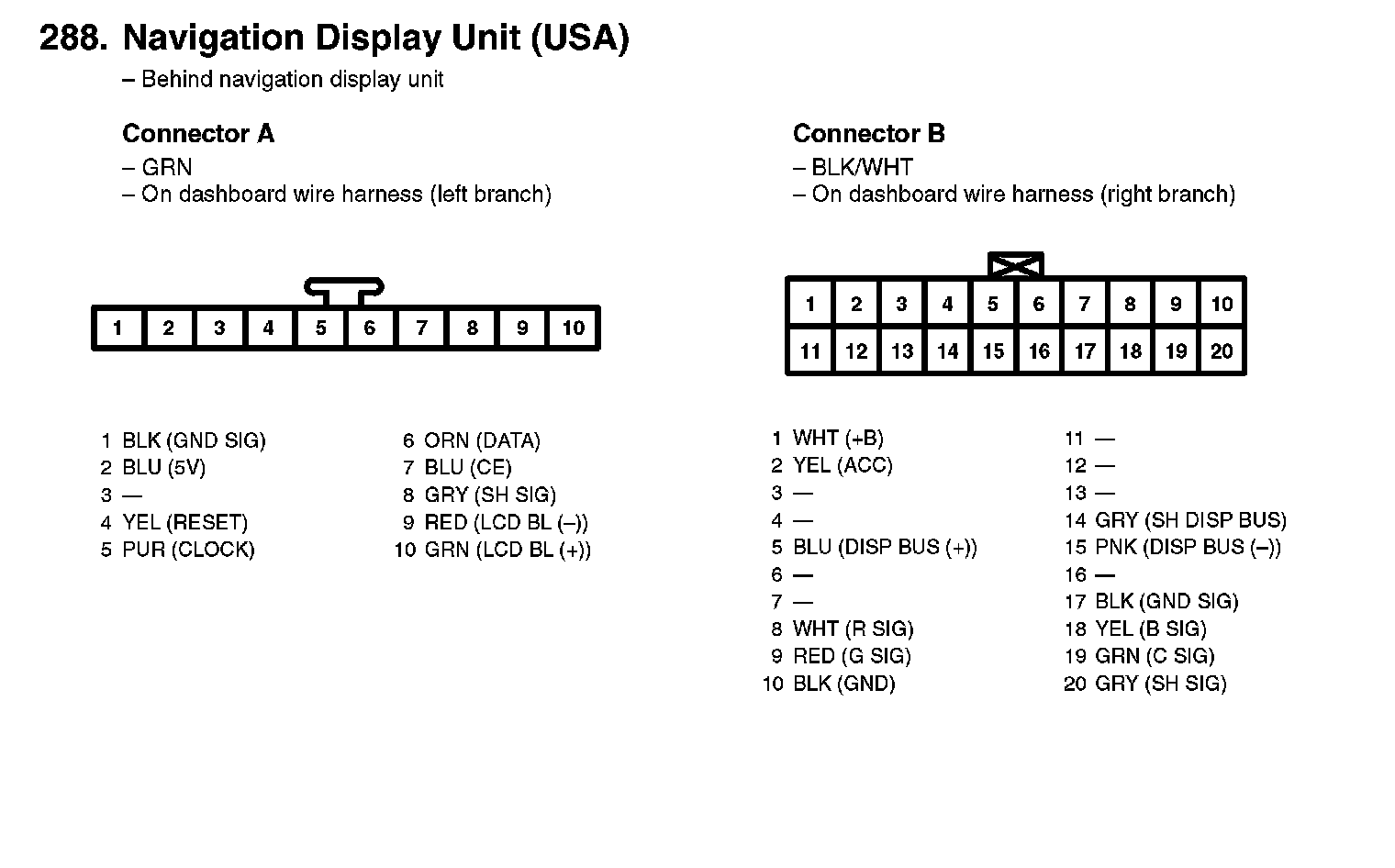

288. Navigation Display Unit (USA):
