Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Module, (Vehicle Antitheft)

Alarm Module, (Vehicle Antitheft)

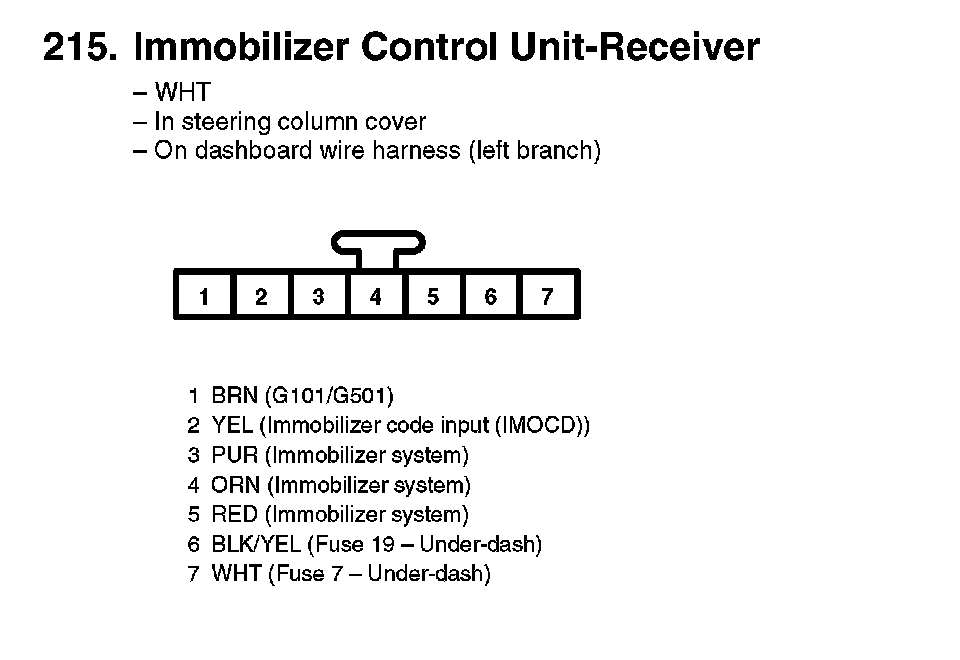

215. Immobilizer Control Unit-Receiver:
