Throttle Actuator Control Module Subharness

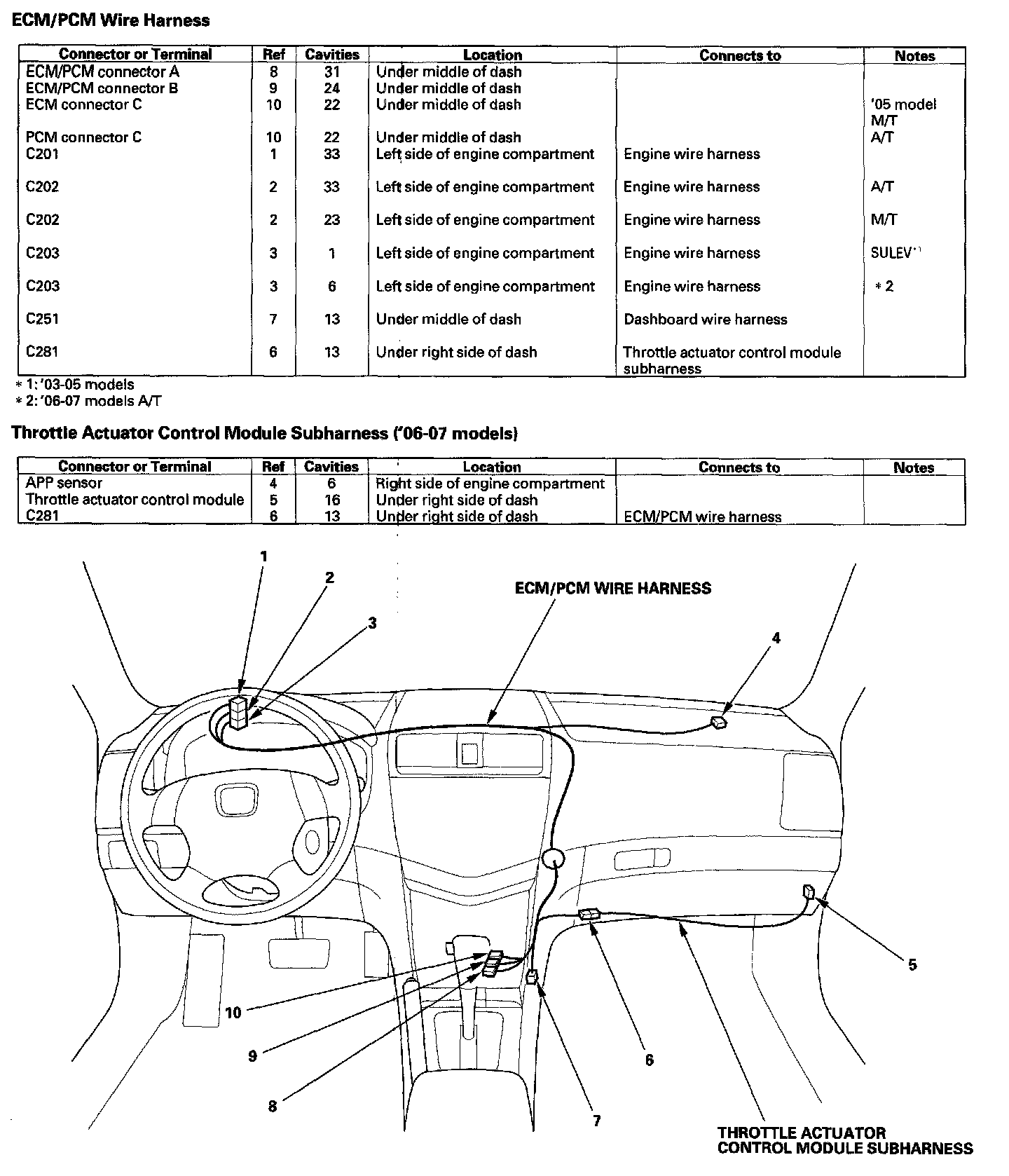

ECM/PCM Wire Harness/Throttle Actuator Control Module Subharness:

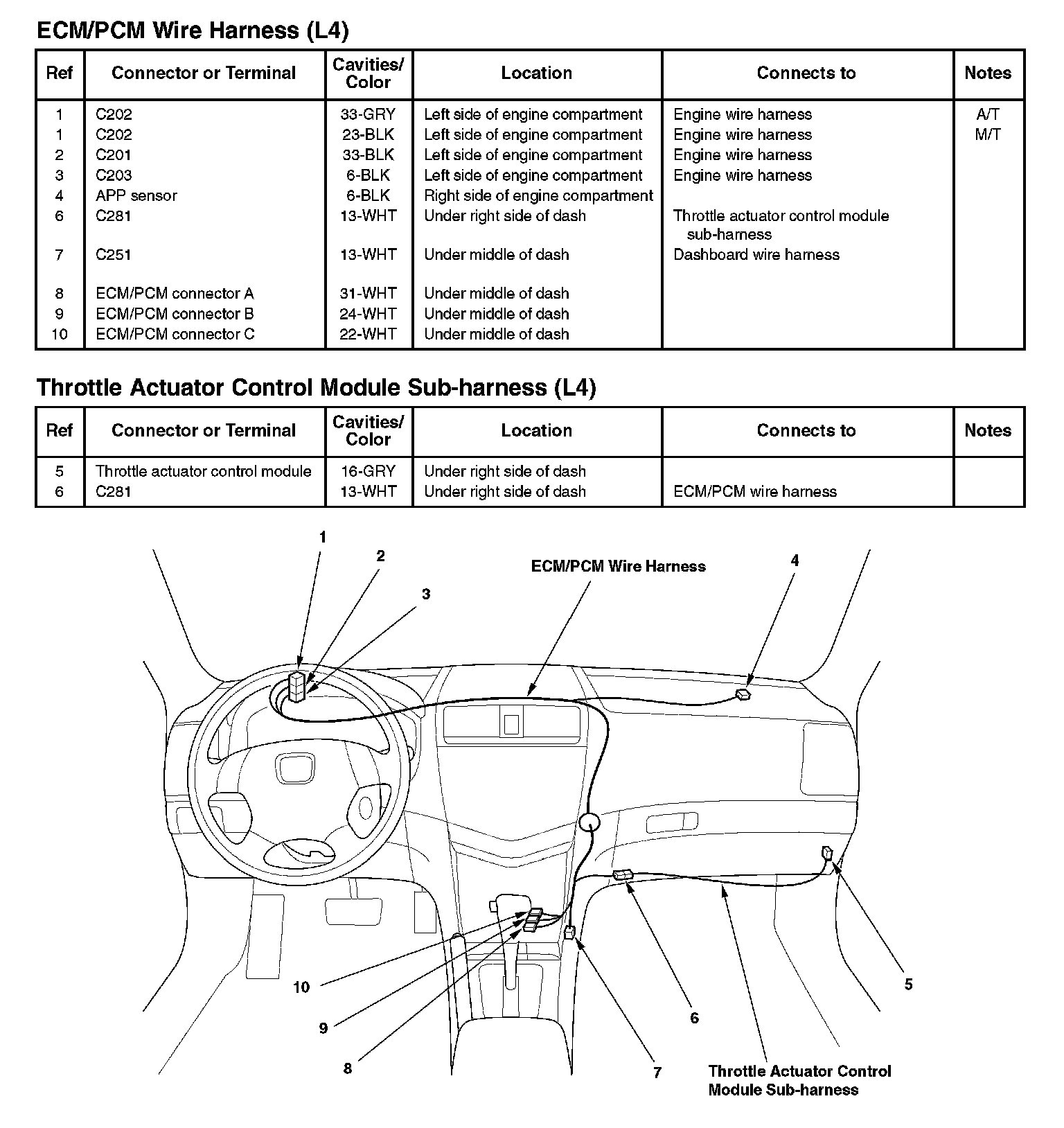

ECM/PCM Wire Harness (L4)/Throttle Actuator Control Module Sub-harness (L4):
