Home >> Honda >> 2007 >> Accord L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Solar Sensor >> Locations

Solar Sensor: Locations

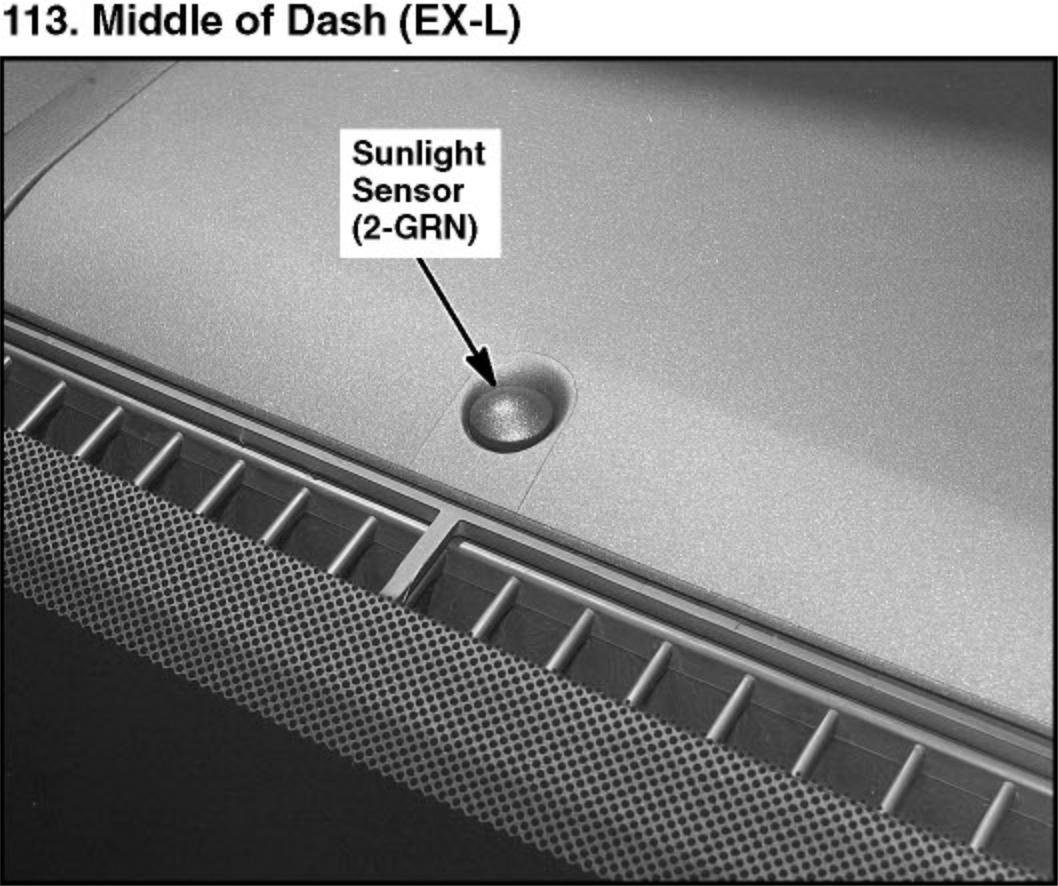

113. Middle of Dash (EX-L):

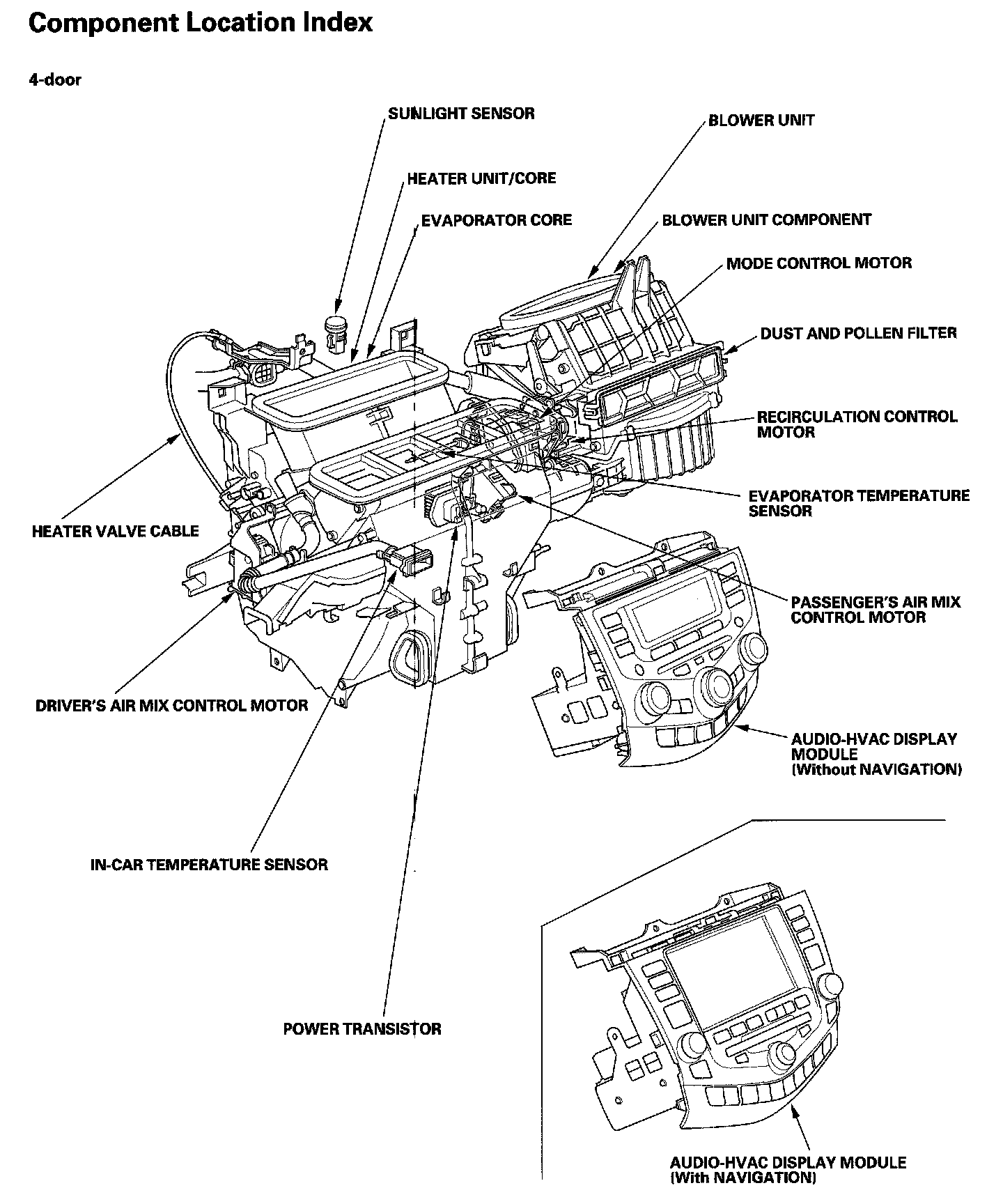

Climate Control Component Location Index:

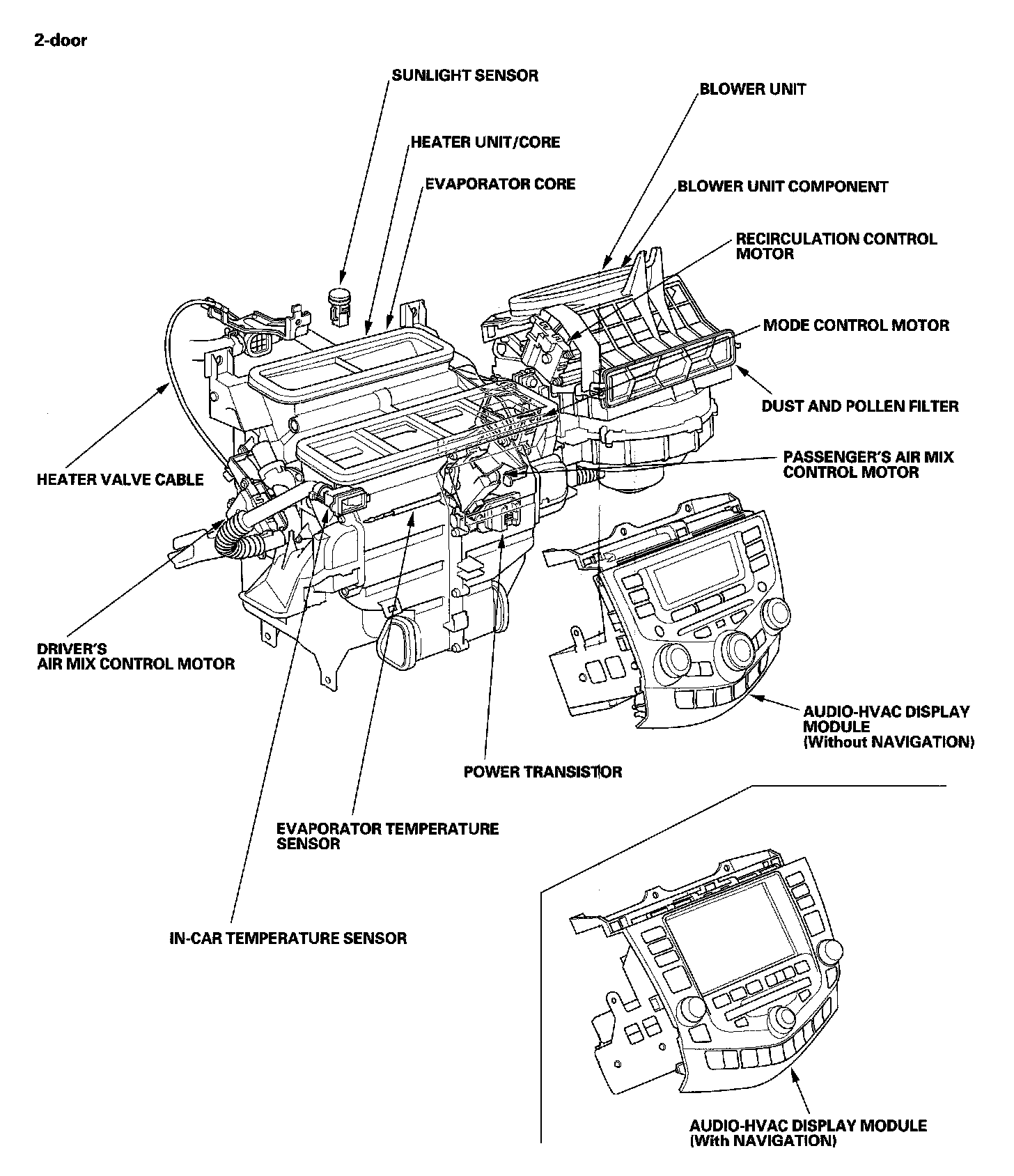

Climate Control Component Location Index:
