Home >> Honda >> 2007 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Switch

Wiper Switch

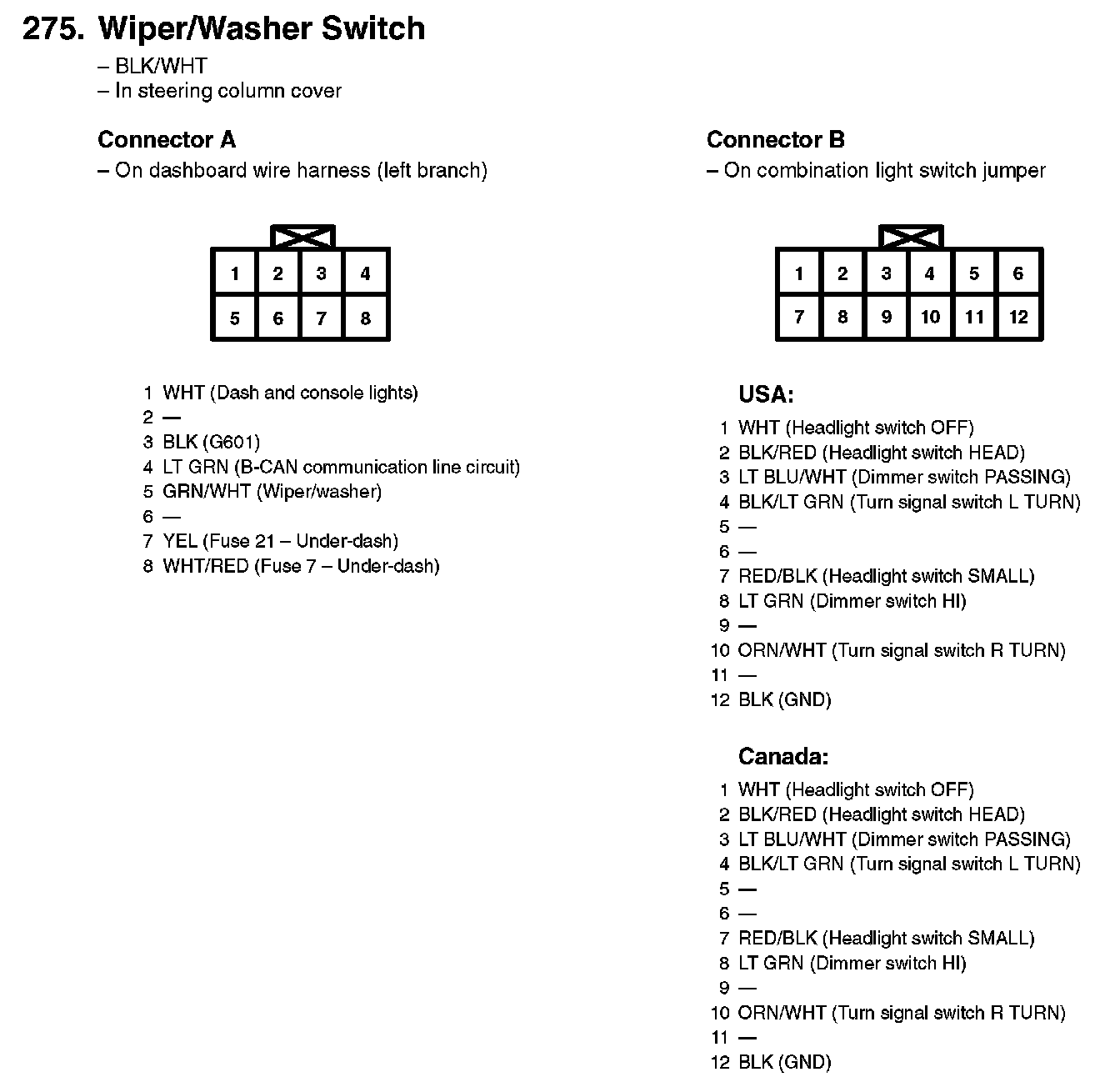

275. Wiper/Washer Switch:
