Home >> Honda >> 2006 >> Ridgeline V6-3.5L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Locations

Control Module: Locations

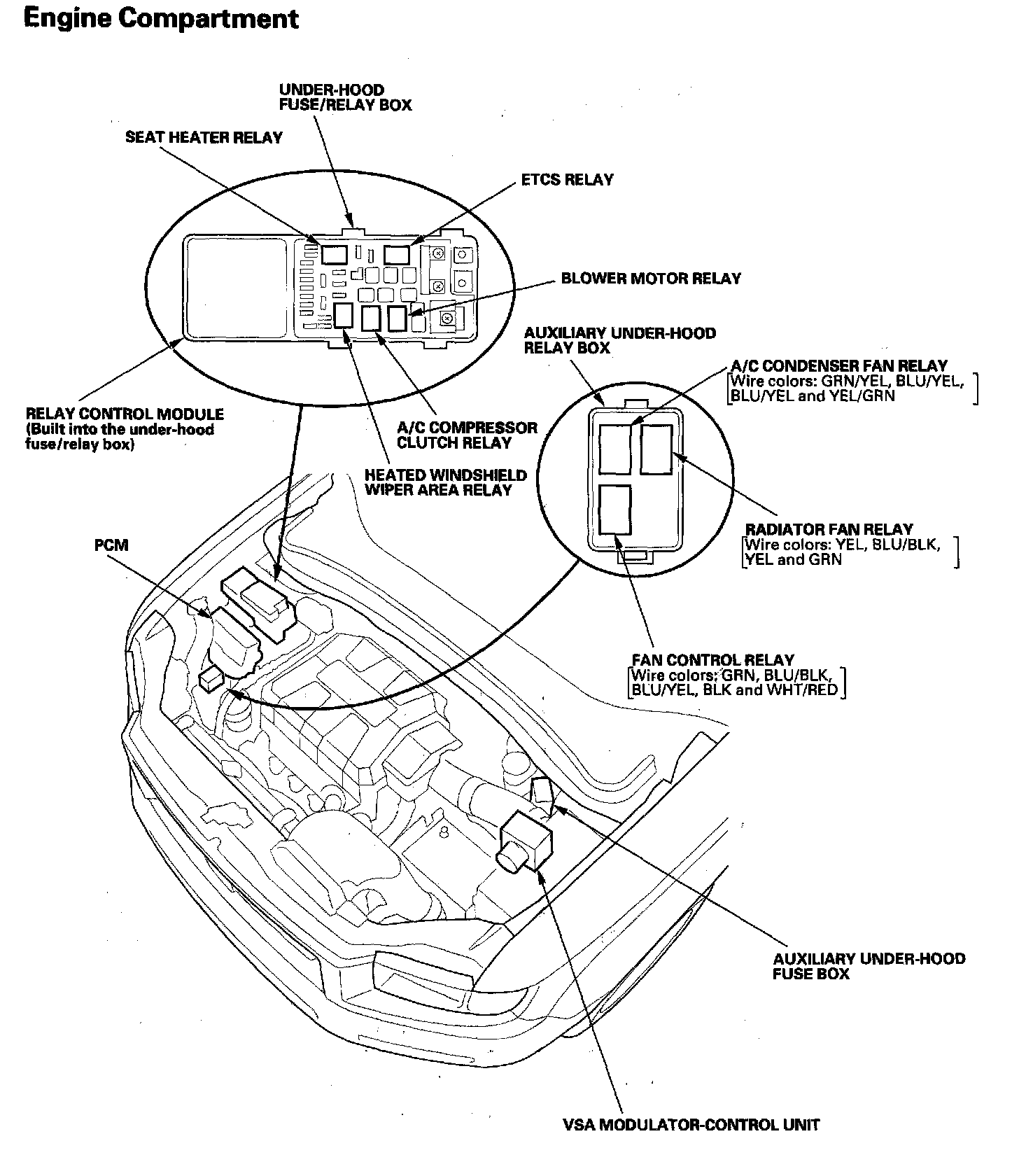

Relay And Control Unit Locations - Engine Compartment:
