Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Connector Locations
>>
Under-Dash Fuse/Relay Box
Under-Dash Fuse/Relay Box

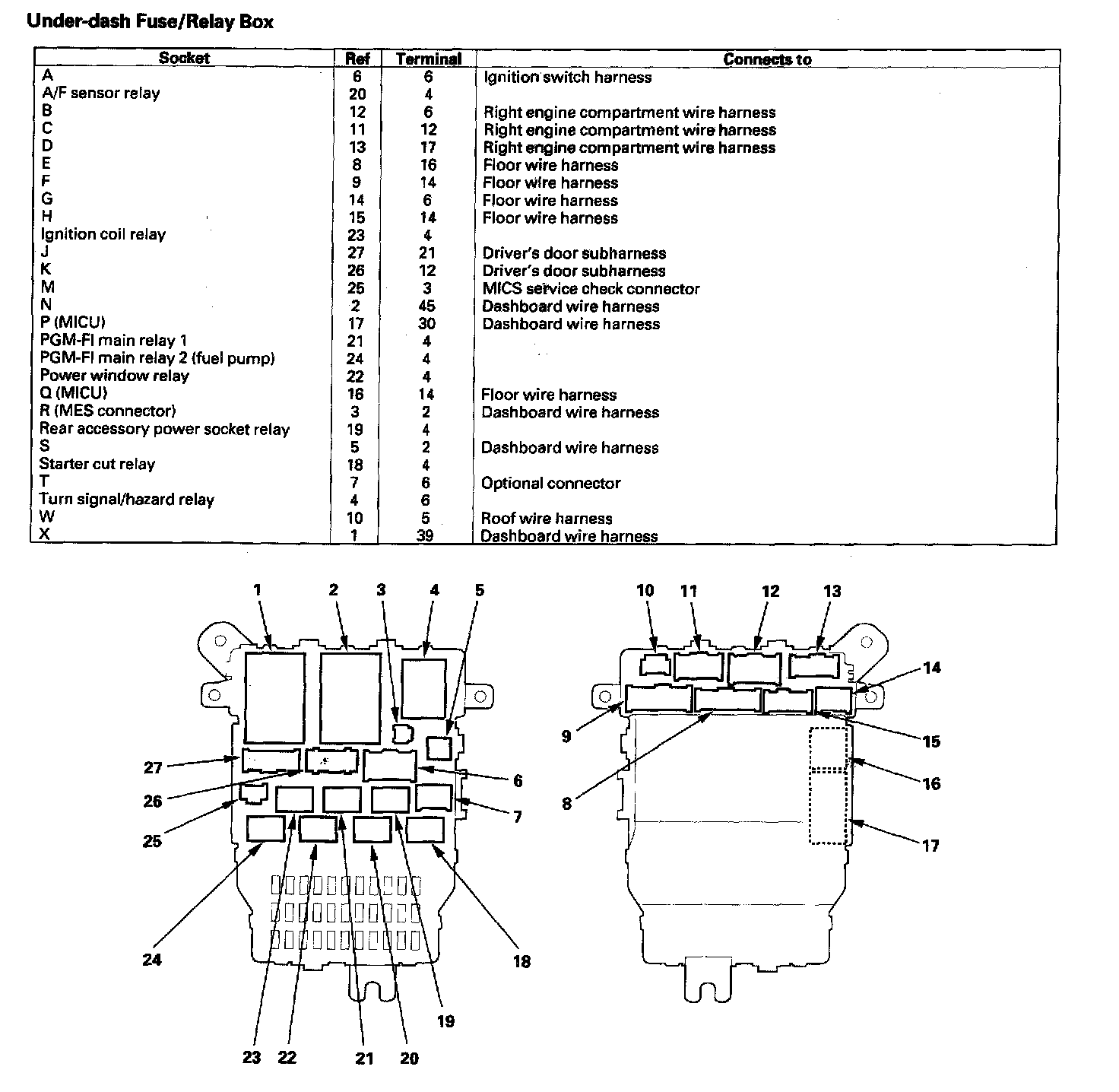

Under-dash Fuse/Relay Box:

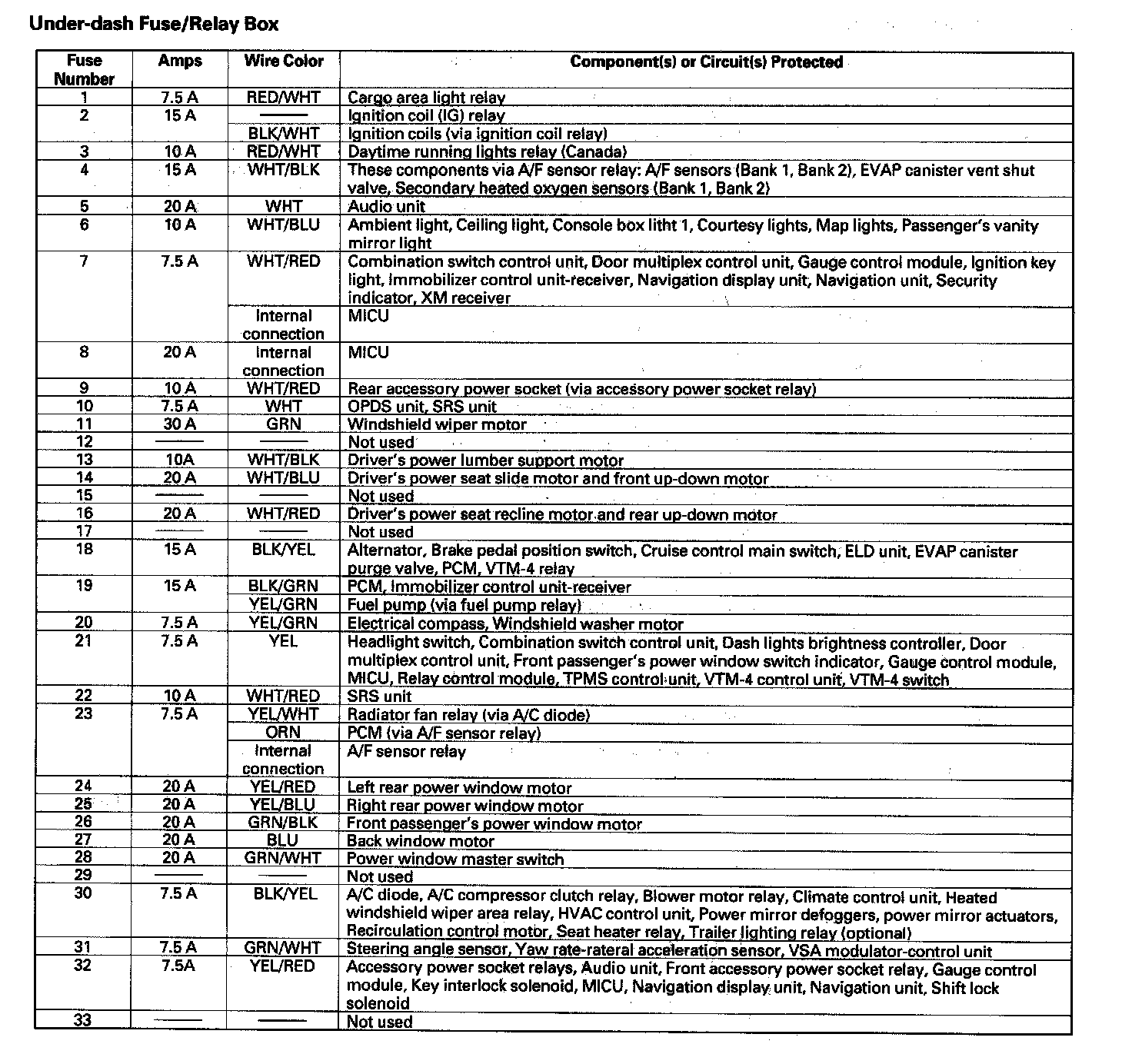

Under-dash Fuse/Relay Box:
Under-dash Fuse/Relay Box:
