Pilot 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment Systems
>>
System Diagram
System Diagram
DVD Player Unit Connector For Inputs And Outputs:
Rear Controller And Screen Connector For Inputs And Outputs:

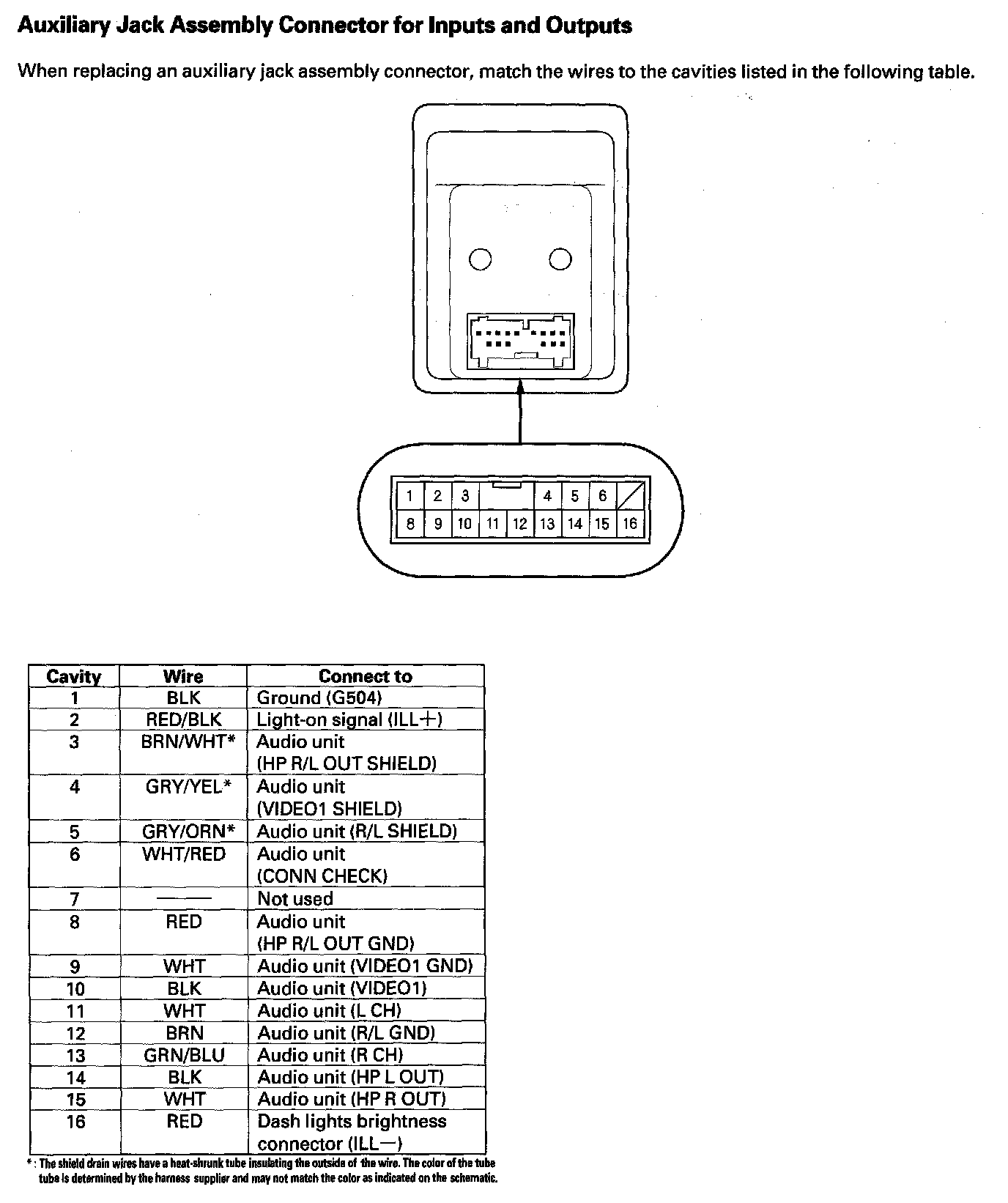

Auxiliary Jack Assembly Connector For Inputs And Outputs:
