Alarm Module: Locations

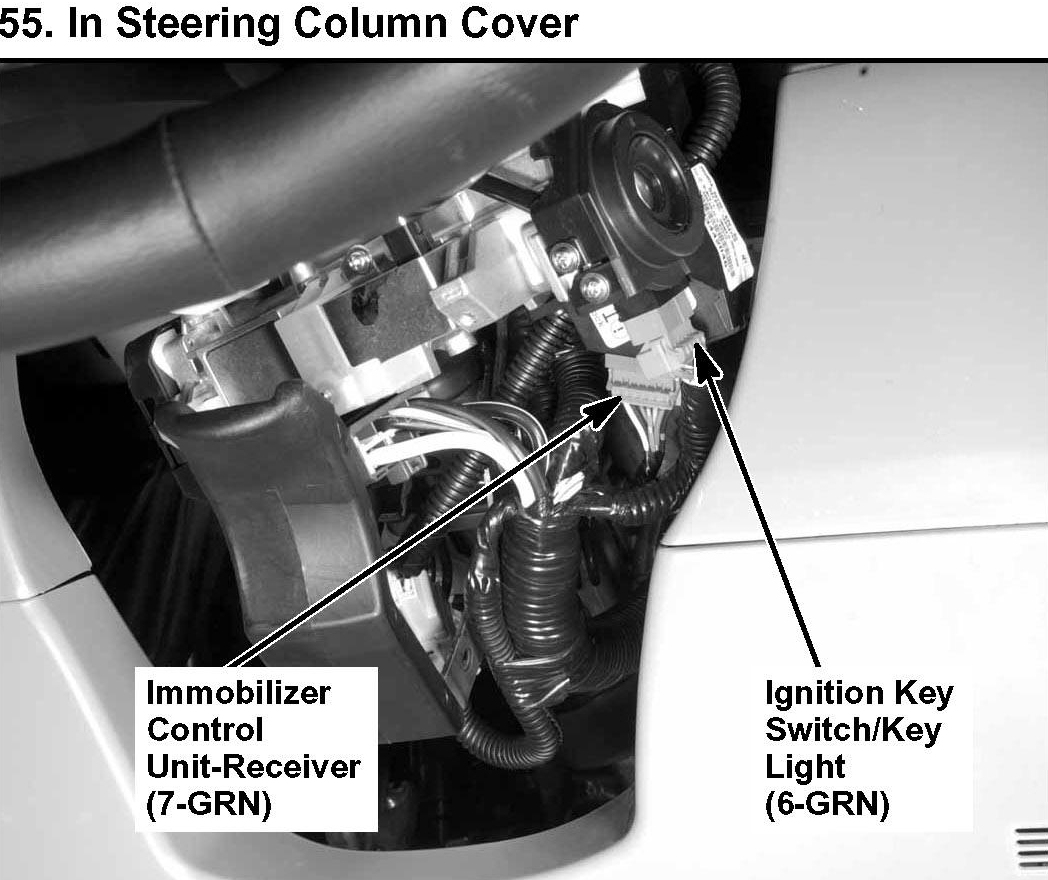

55. In Steering Column Cover:

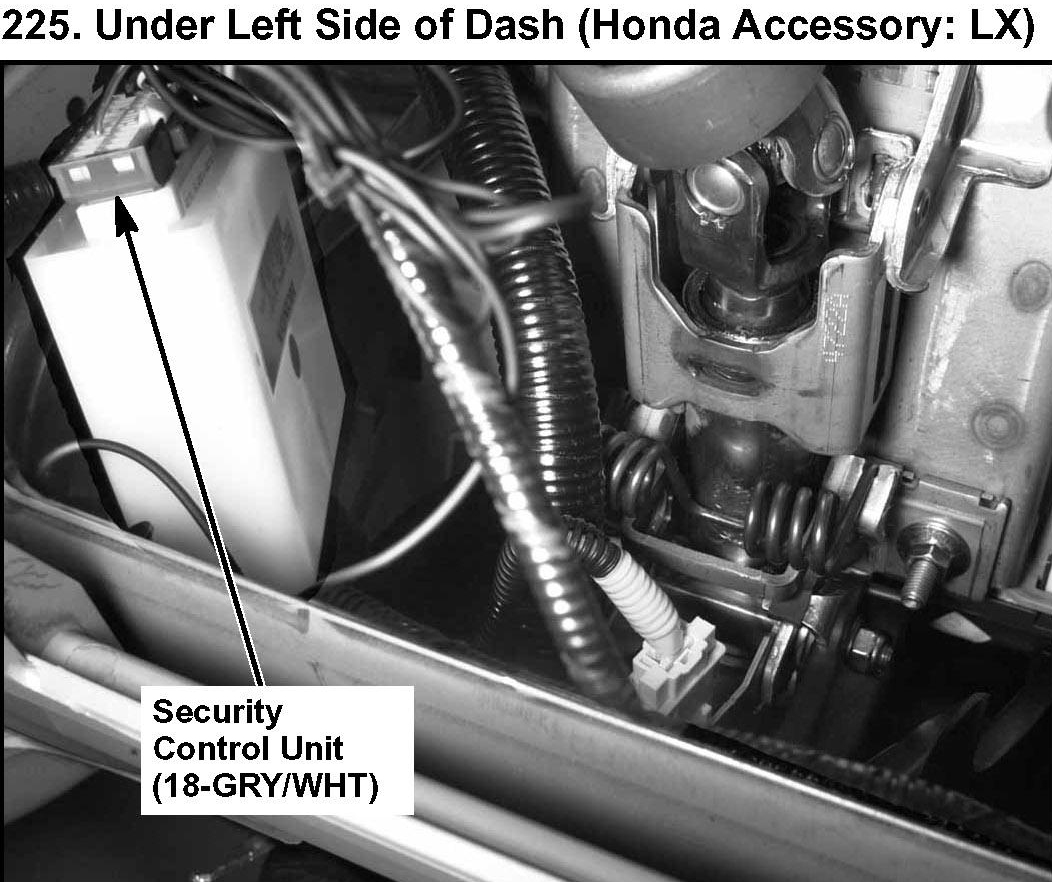

225. Under Left Side of Dash (Honda Accessory: LX):



Relay And Control Unit Locations - Dashboard:
