PCM A/T Control System Circuit Diagram

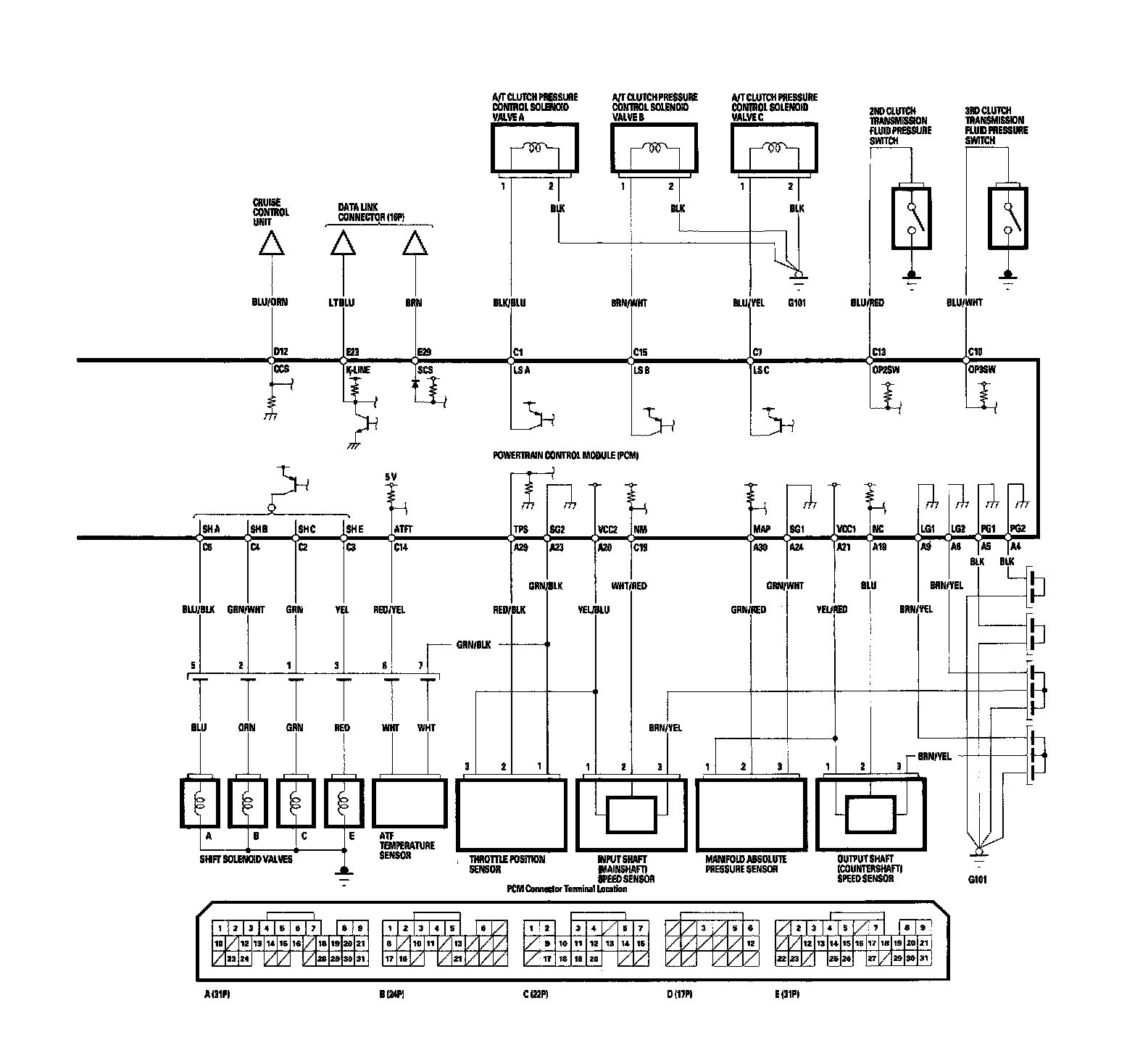

PCM A/T Control System Circuit Diagram (part 1):

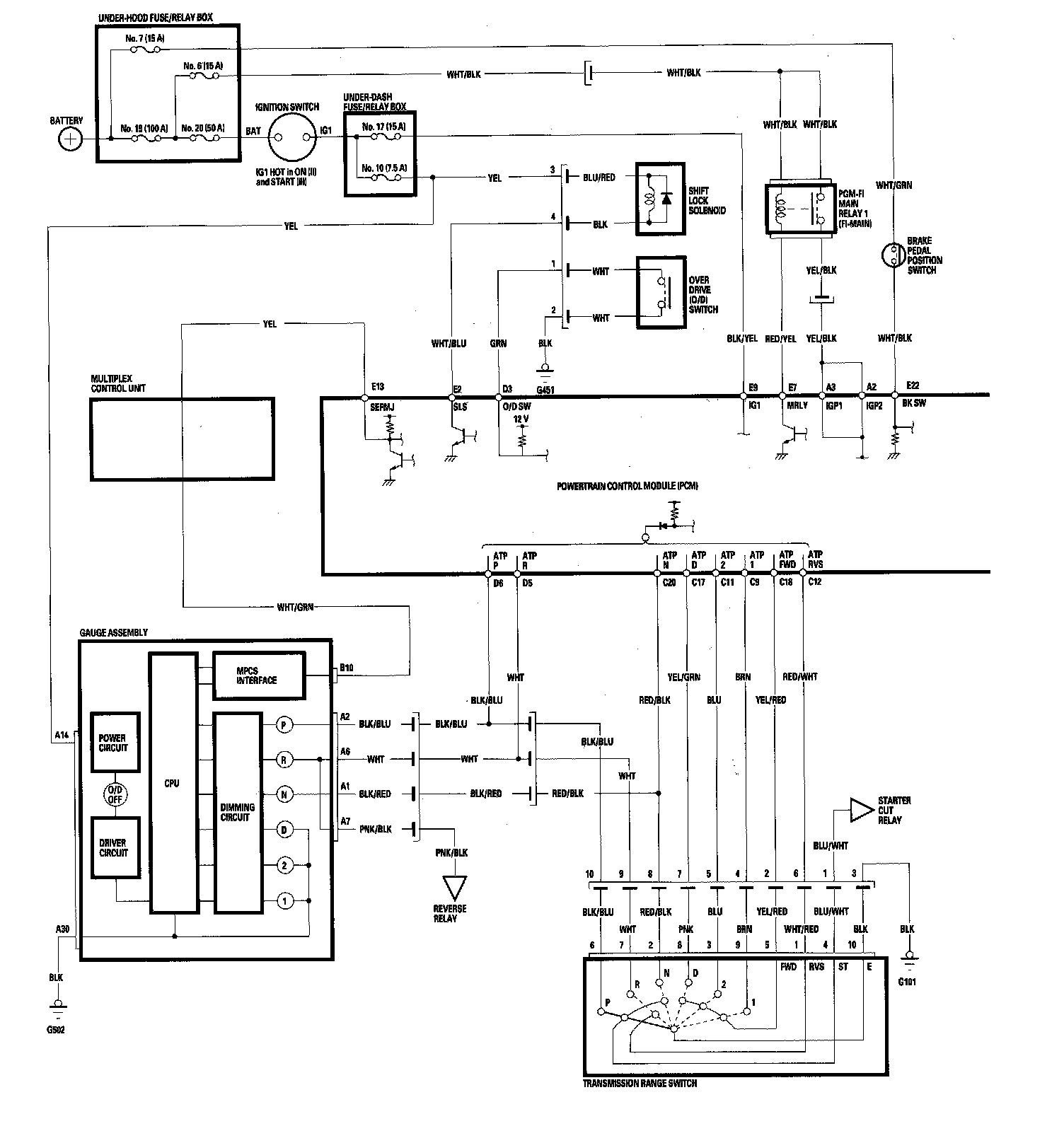

PCM A/T Control System Circuit Diagram (part 2):
