Home >> Honda >> 2006 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Locations

Electronic Brake Control Module: Locations

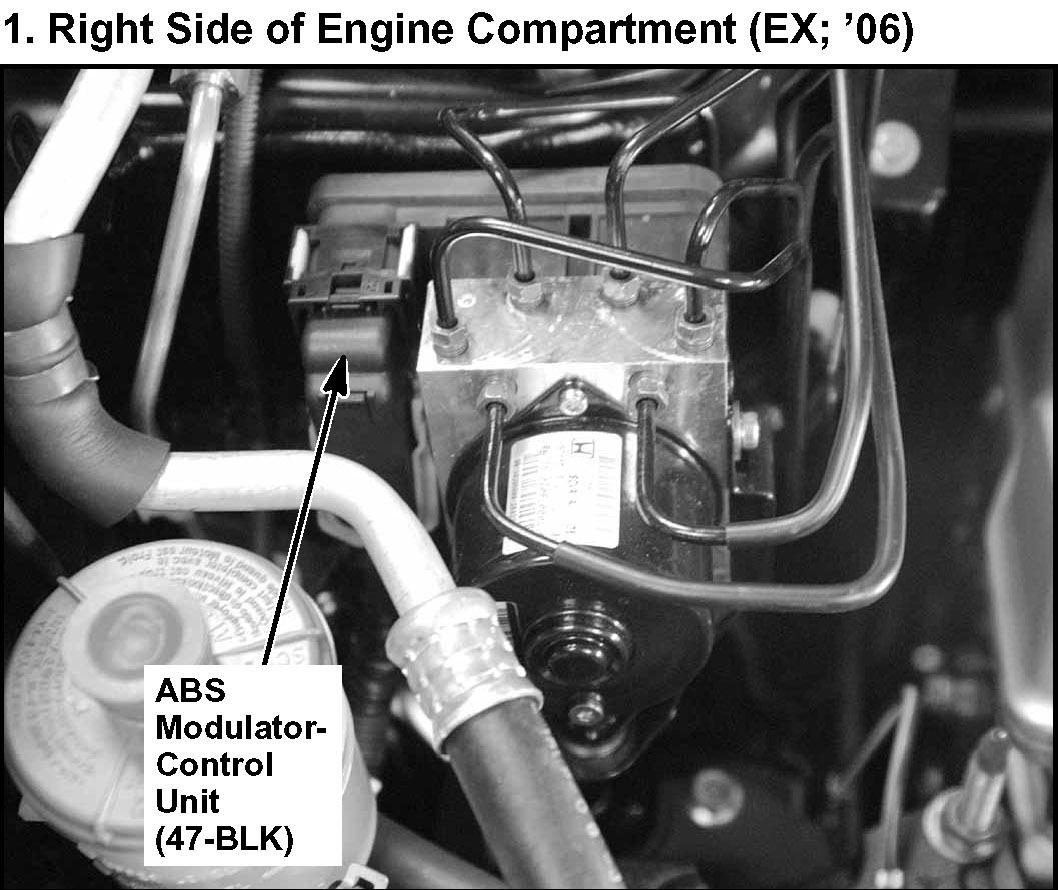

1. Right Side Of Engine Compartment (EX; '06):

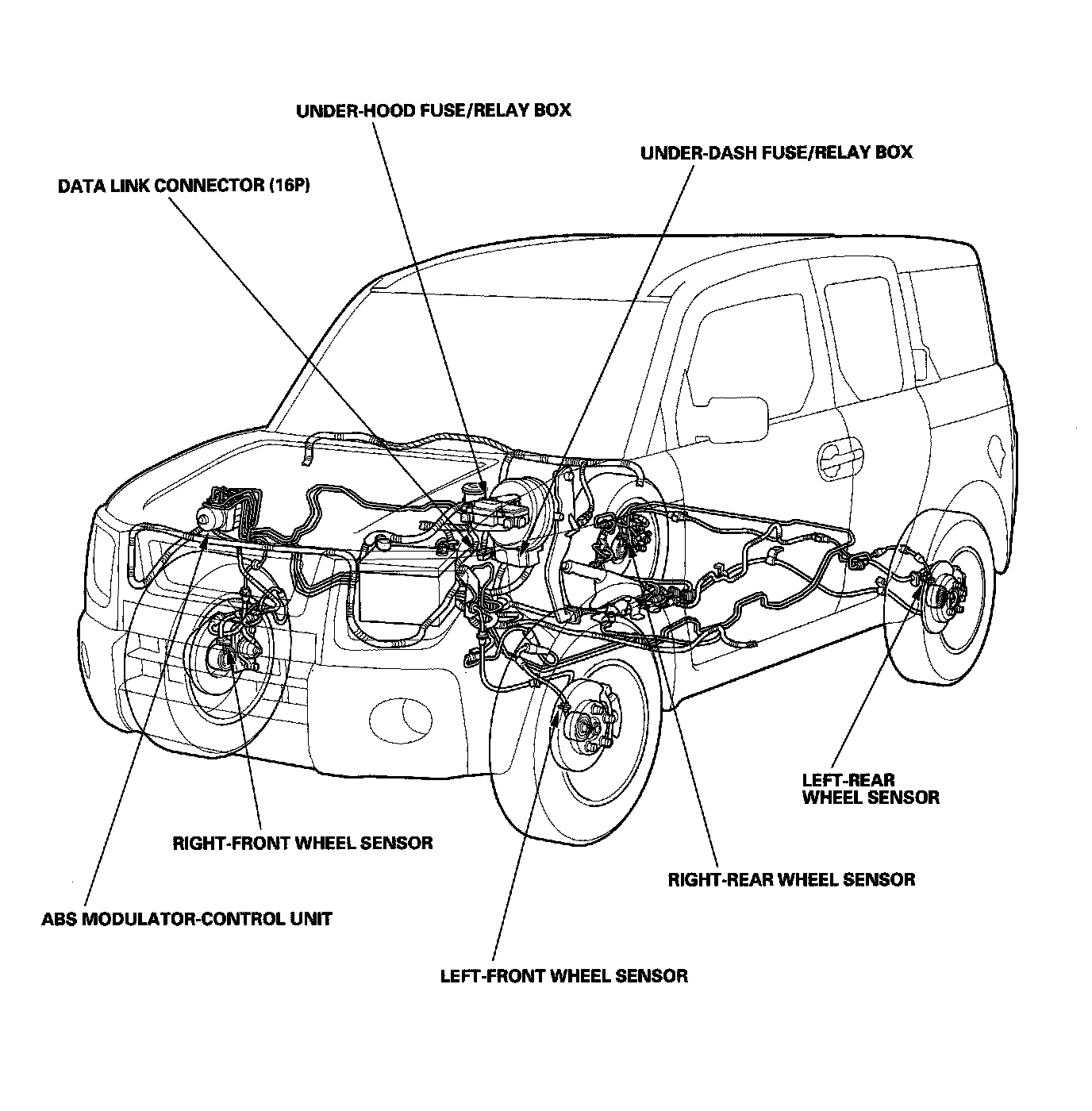

Antilock Brake System Components:
