Home >> Honda >> 2006 >> Civic Si >> Repair and Diagnosis >> Engine Performance >> System >> Intake Air System (K20Z3 Engine) >> Component Locations

Component Locations

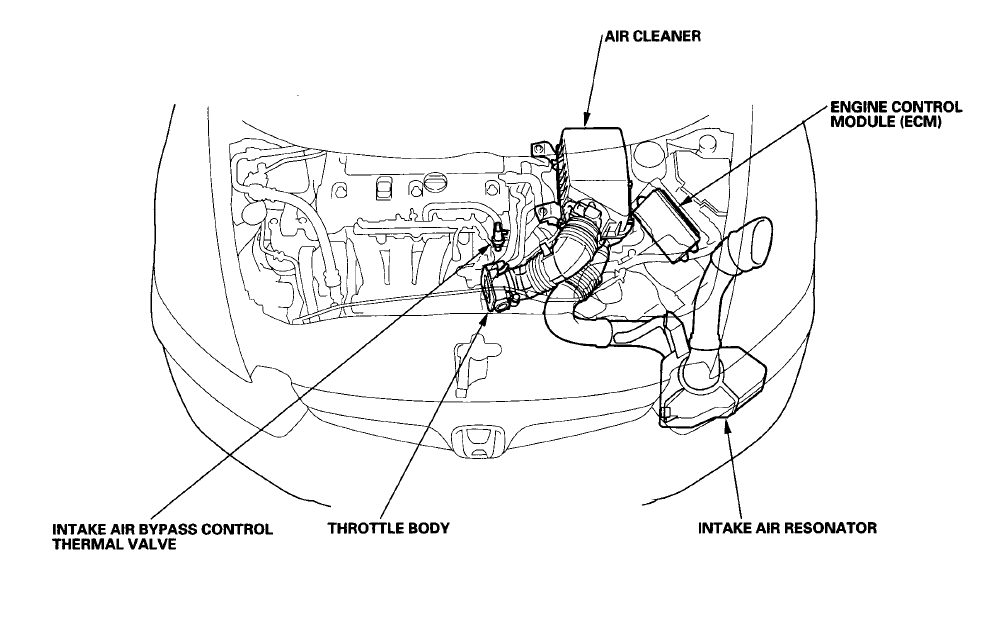

Fig 1: Identifying Intake Air System Component Locations
G00489102Courtesy of AMERICAN HONDA MOTOR CO., INC.
