Pinout Values and Diagnostic Parameters

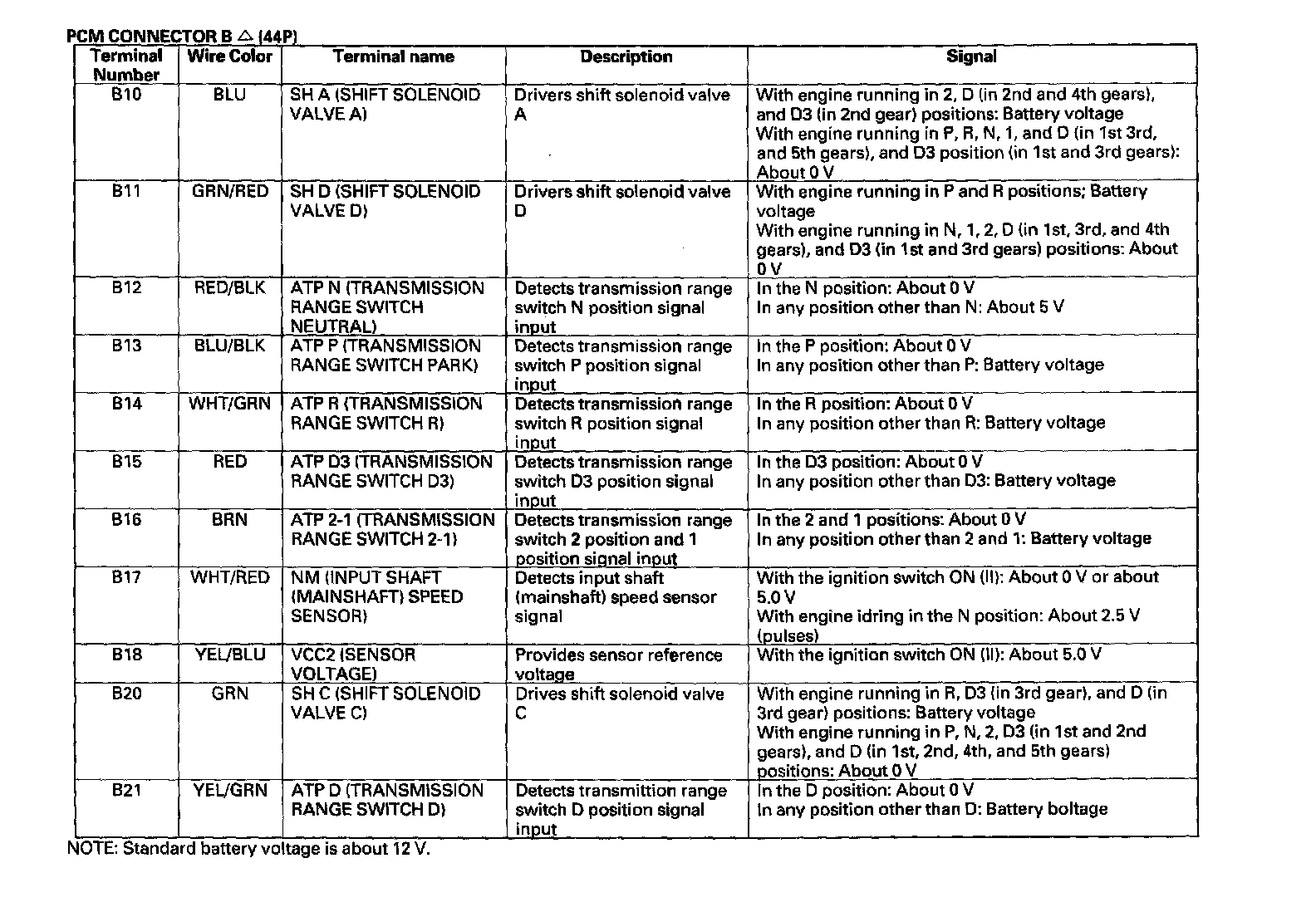

PCM A/T Control System Inputs and Outputs:

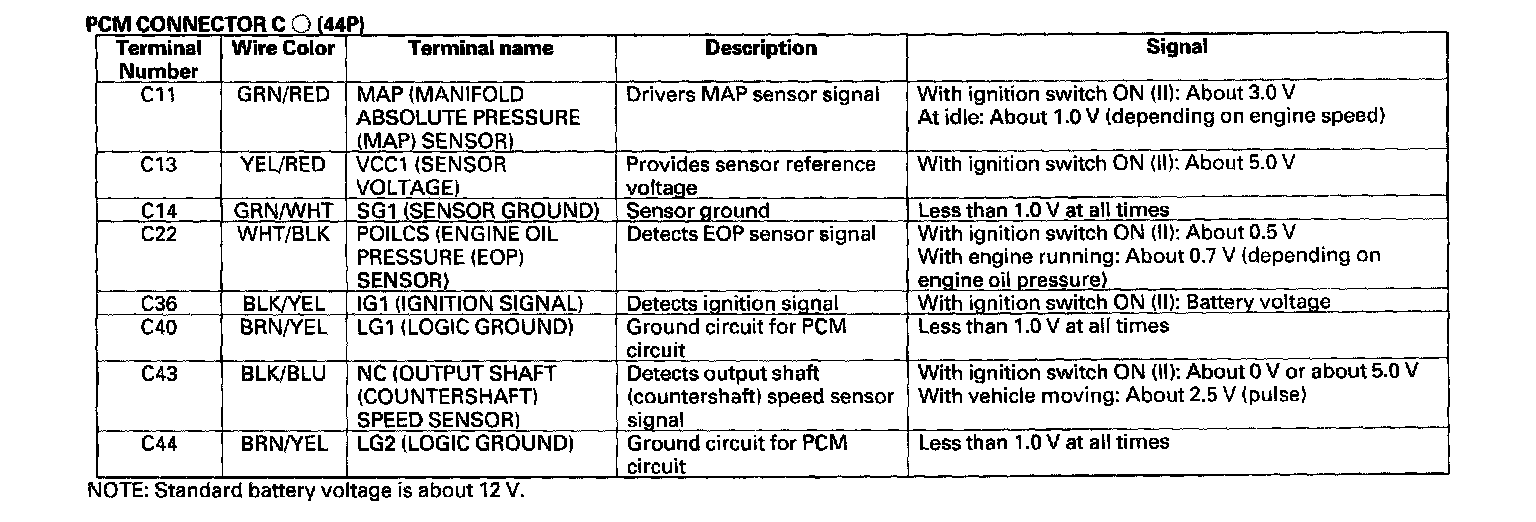

PCM A/T Control System Inputs and Outputs:

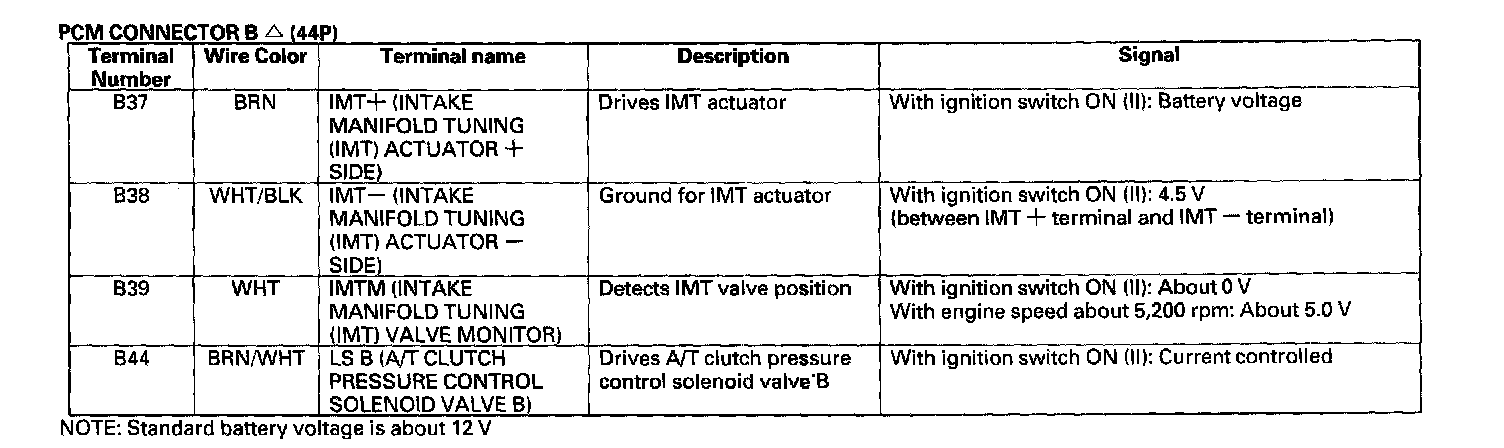

PCM A/T Control System Inputs and Outputs:

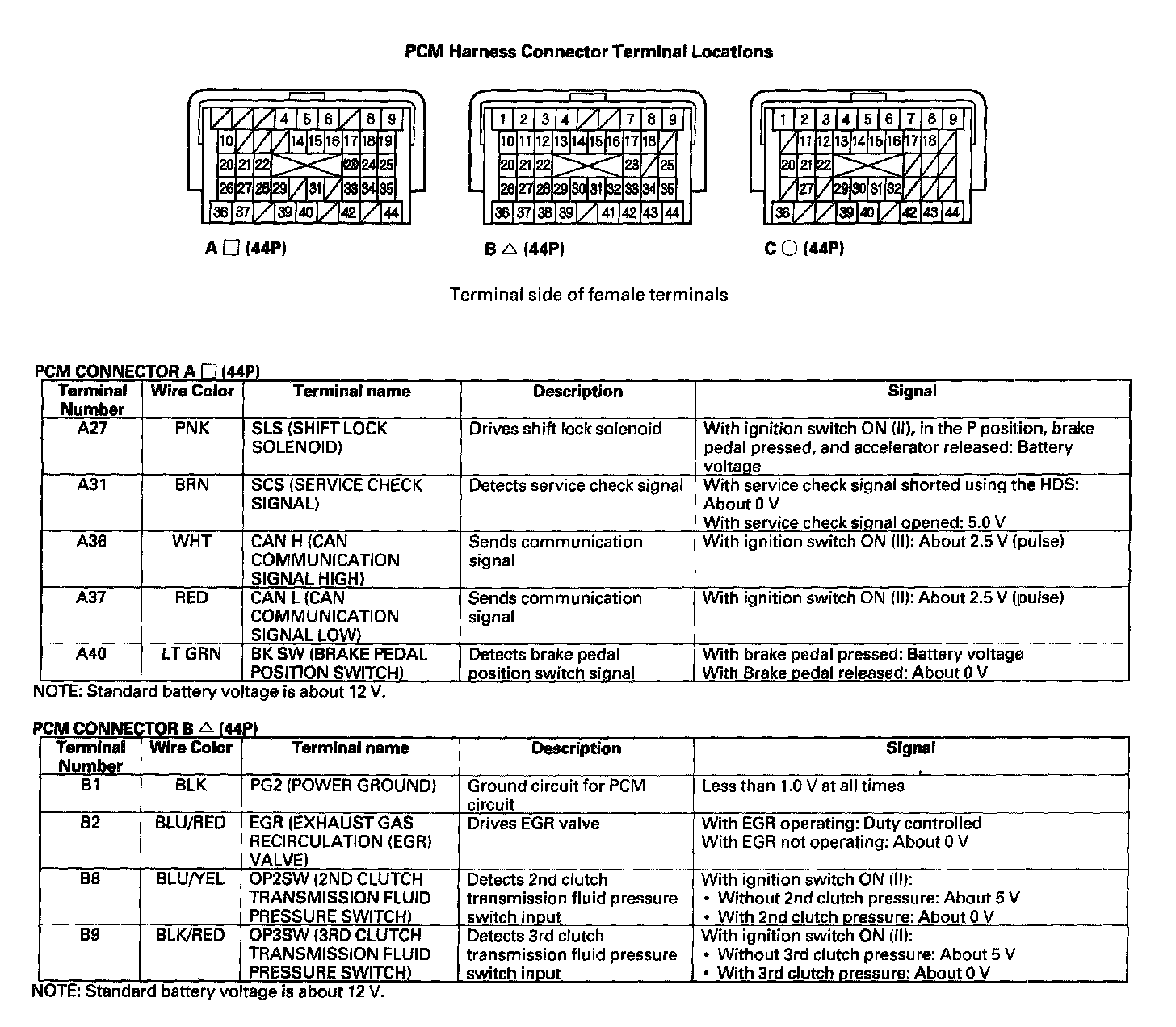

PCM A/T Control System Inputs and Outputs:

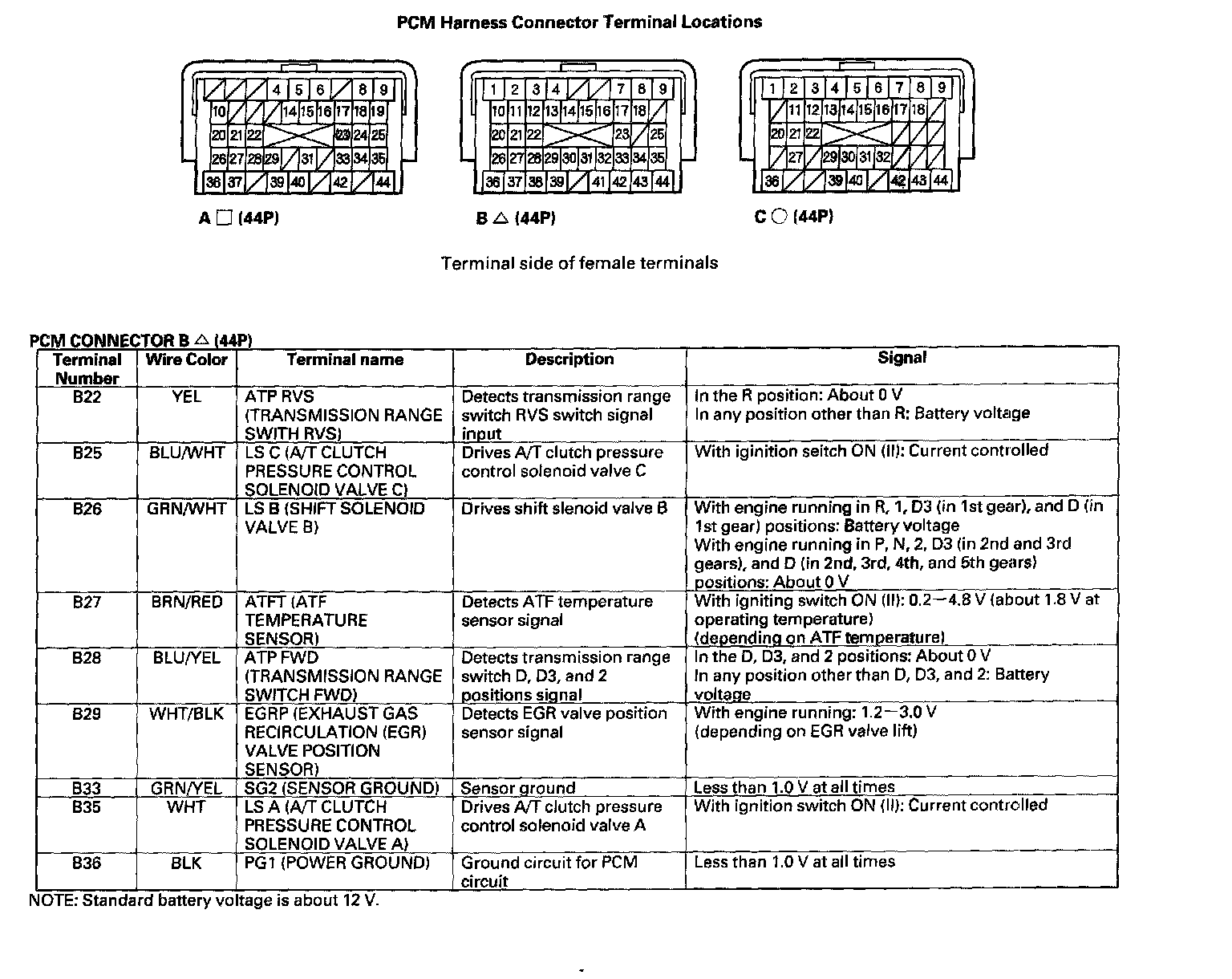

PCM A/T Control System Inputs and Outputs:





PCM A/T Control System Inputs and Outputs
