Home >> Honda >> 2006 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Switch

Door Switch

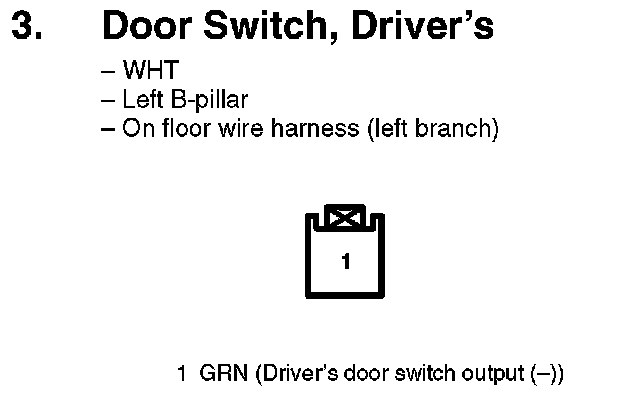

3. Door Switch, Driver's:

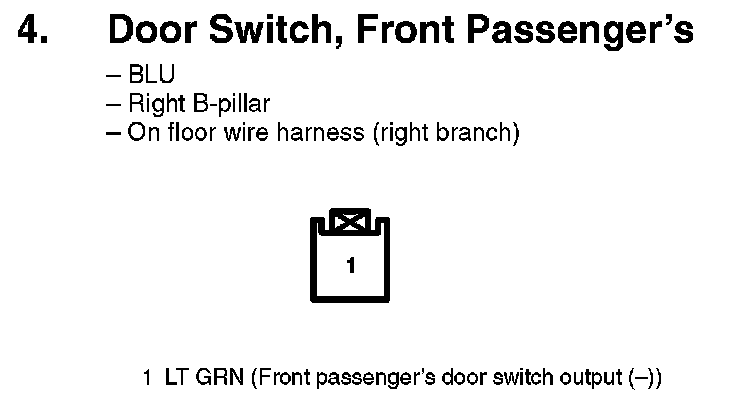

4. Door Switch, Front Passenger's:

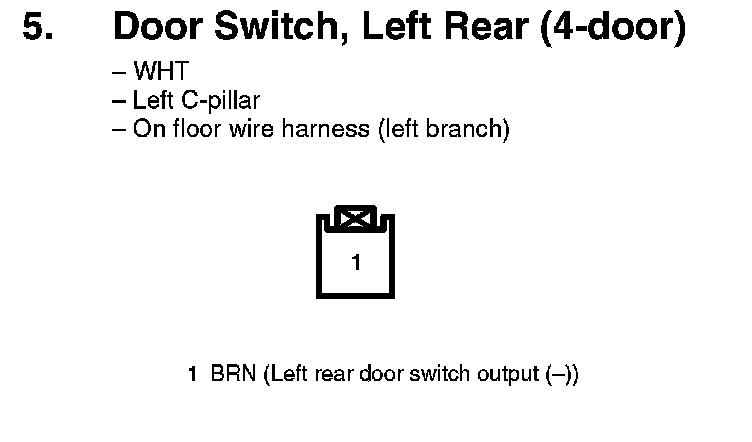

5. Door Switch, Left Rear (4-door):

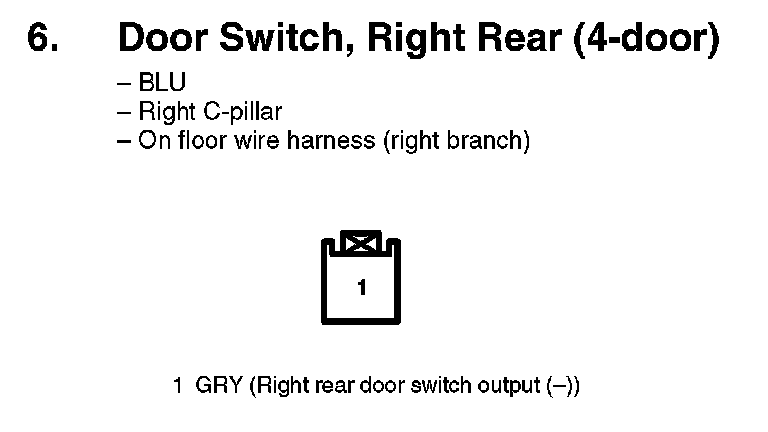

6. Door Switch, Right Rear (4-door):
