Home >> Honda >> 2006 >> Civic L4-1.8L CNG >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

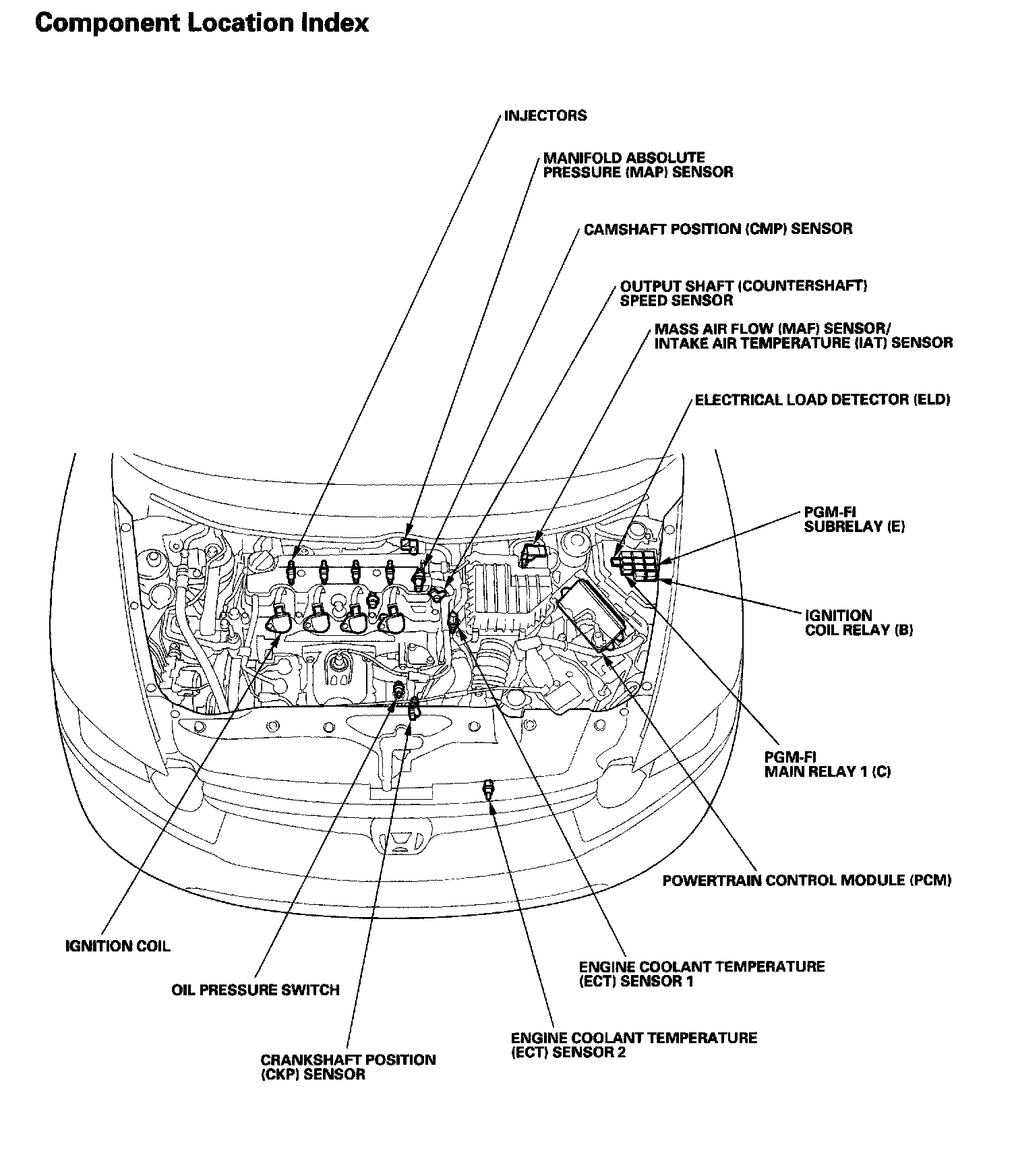

PGM-FI System - Component Location Index:

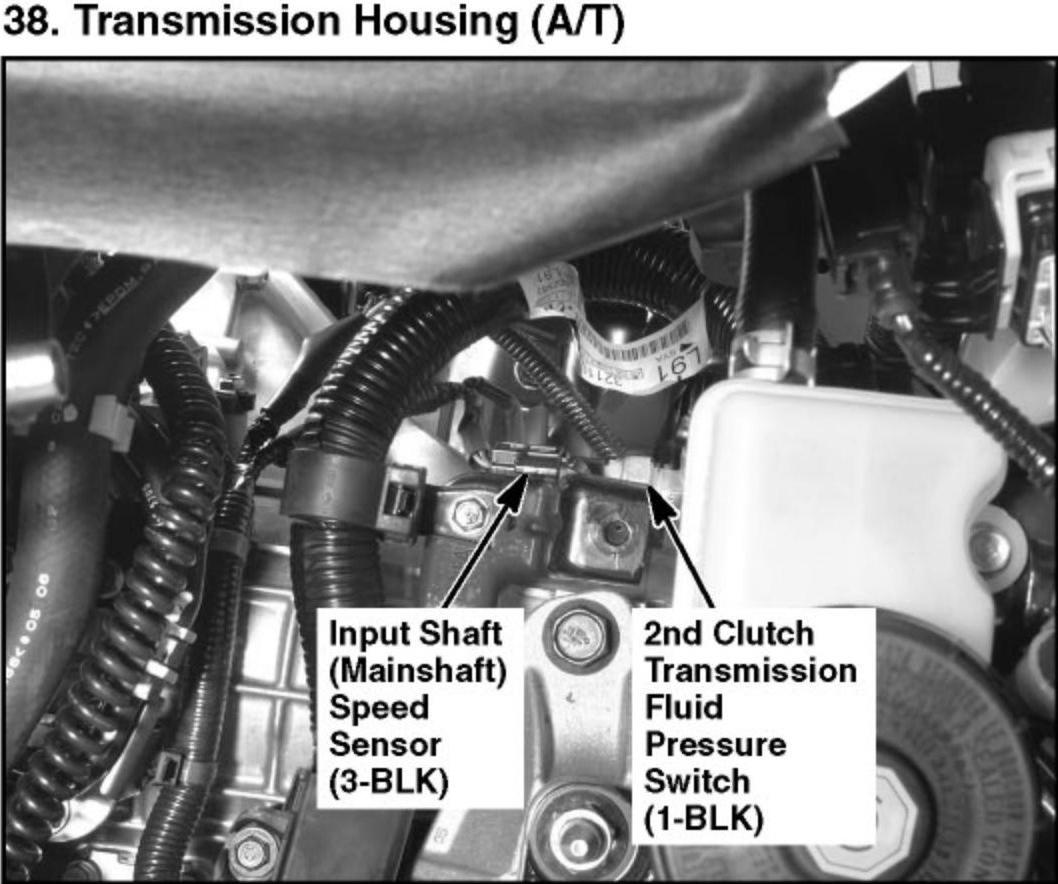

38. Transmission Housing (A/T):

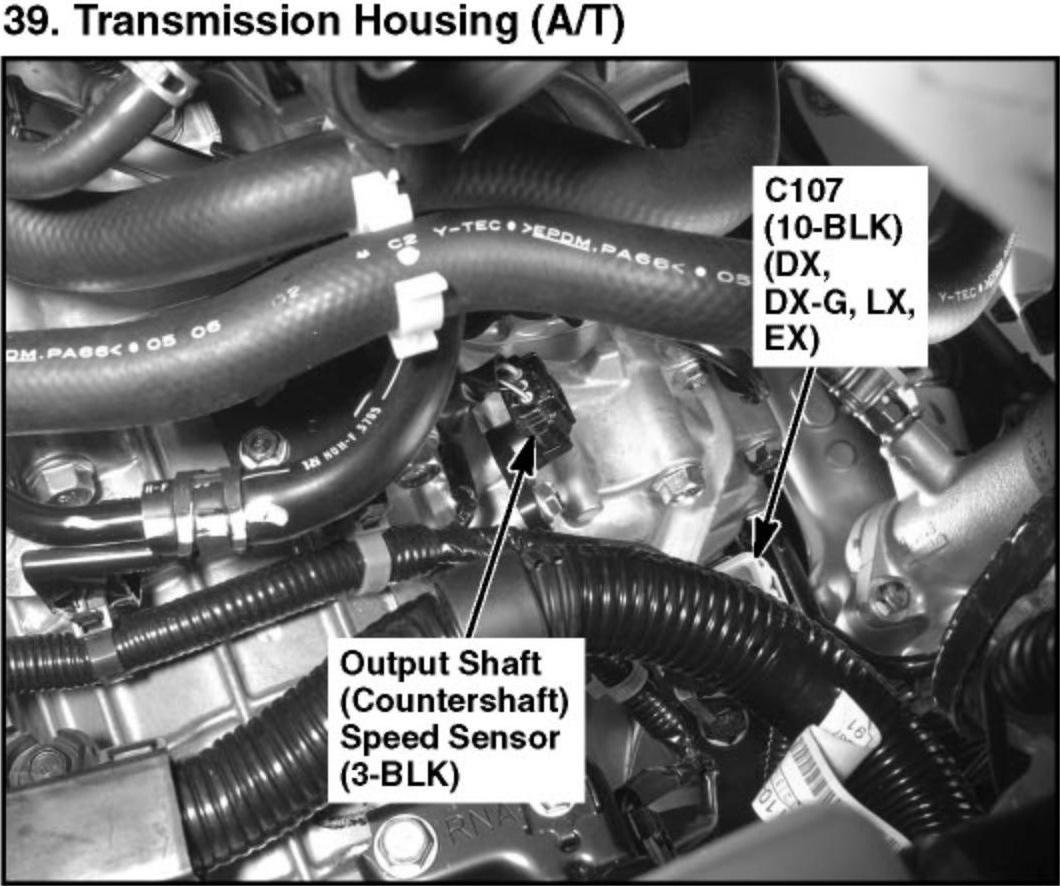

39. Transmission Housing (A/T):
