Navigation Module

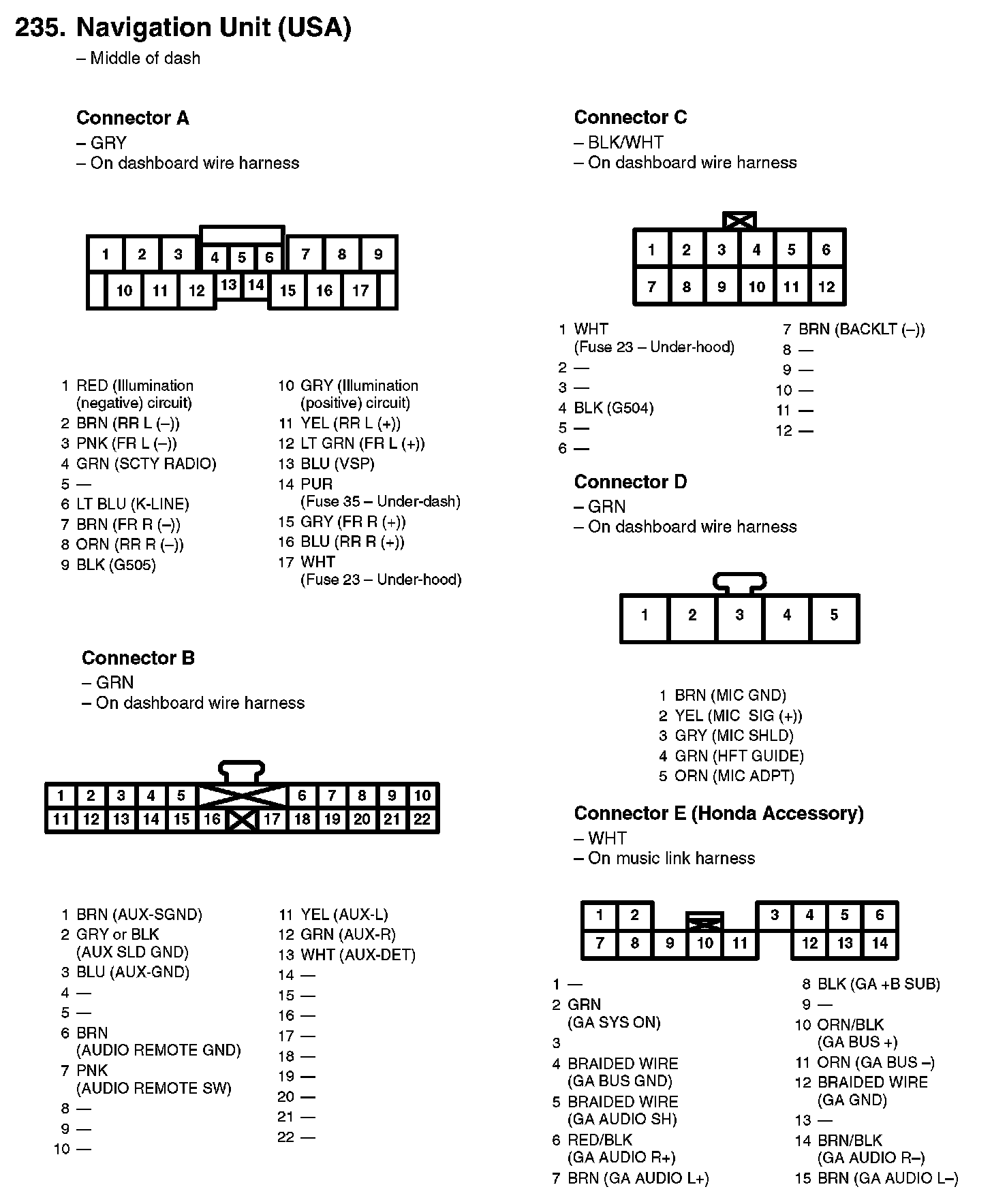

235. Navigation Unit (USA):

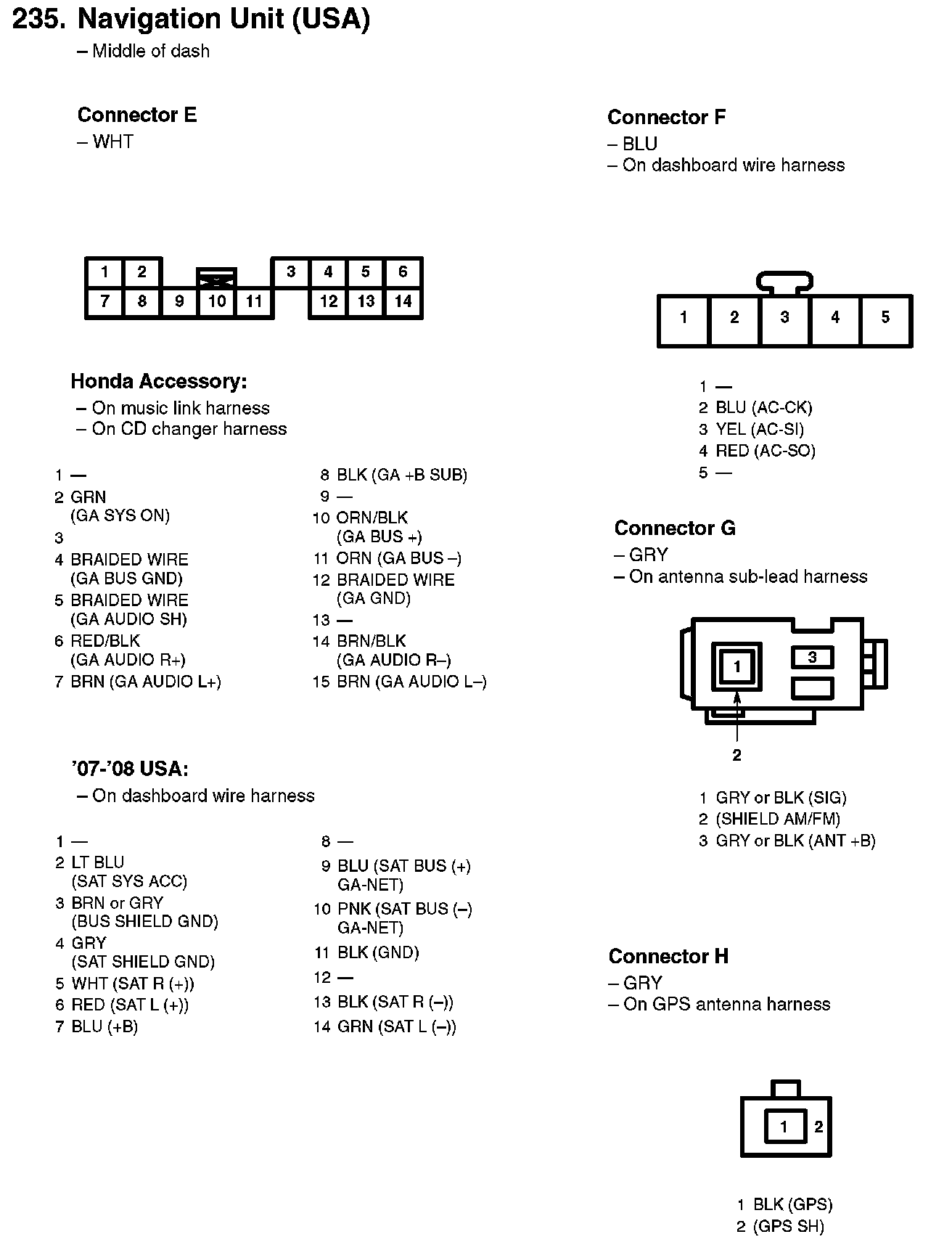

235. Navigation Unit (USA):

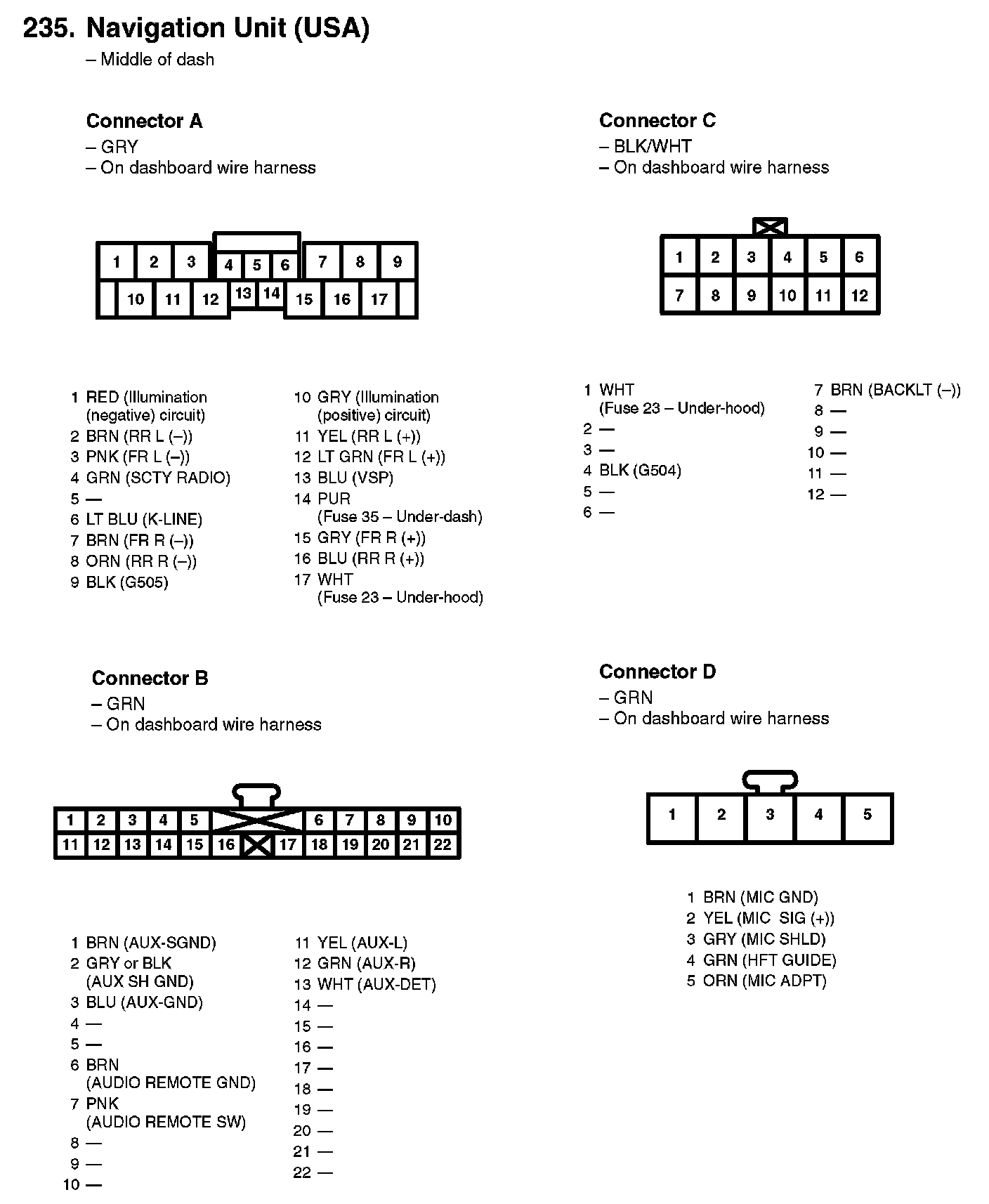

235. Navigation Unit (USA):



235. Navigation Unit (USA):
