Variable Valve Timing Pressure Switch: Locations

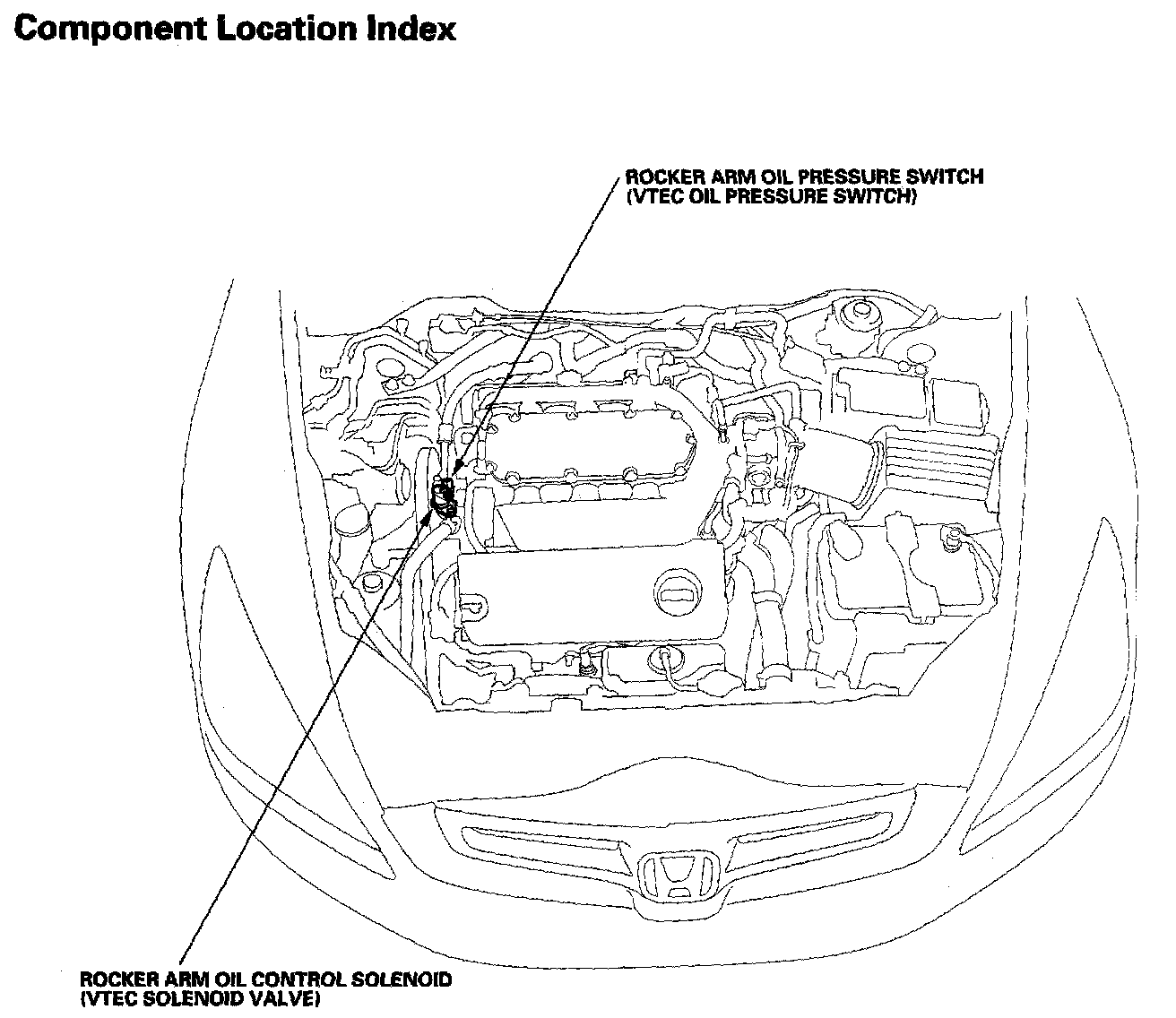

VTEC - Component Location Index:

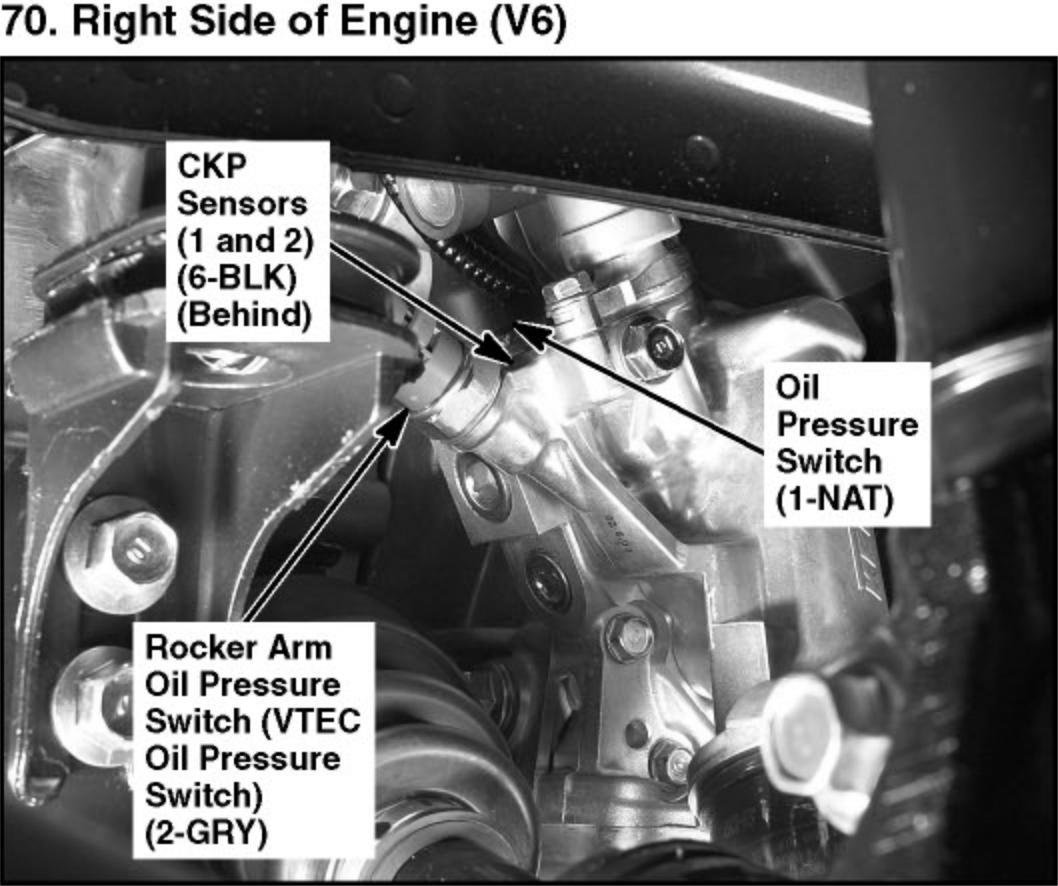

70. Right Side of Engine (V6):
